Manual Shoprider Sprinter XL3 Deluxe Mobility Scooter

Name: Shoprider Sprinter XL3 Deluxe Mobility Scooter
Brand: Shoprider
SKU: Sprinter XL3 Deluxe
Rating: 50 (2 reviews)

Need a manual for your Shoprider Sprinter XL3 Deluxe Mobility Scooter? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 2 comments and has 2 votes with an average product rating of 50/100. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

12/29/2004

SCOOTER TILLER CONTROLS (FIG. 11A, 11B & 11C)

Speed Controls

The speed control dial allows you to set a speed

between 1 (minimum) and 10 (maximum).

The Sprinter XL3 Deluxe, XL4 Deluxe, and Jumbo XL

are also equipped with a speed high/low switch.

Battery Level Indicator/Gauge

The number of LED bars lit/where the needle rests,

shows the amount of charge left in your batteries. The

amount of charge will only show at its true level when

the scooter is in drive.

CAUTION – Do not allow the LED bars/gauge needle

go out/down completely as complete discharge of the

batteries could cause irreversible damage.

Lights

A blue button located at tiller controls operates lights.

Horn

A yellow button located at the tiller controls operates

the horn.

Thumb/Finger Accelerator Lever Controls

The right thumb/finger accelerator lever controls the

forward motion and the left thumb/finger accelerator

lever controls the reverse motion. The amount of

pressure applied to each lever will determine the

speed the scooter travels at. Release the lever and the

scooter will slowly come to a stop.

On/Off Key Switch

Insert the key in the right side of the tiller. Turn the

key and the LED bars will light up/needle gauge will

move to the right. There is a delay before the

thumb/finger lever accelerator control can be

operated, while the controller checks the circuits.

Indicator Switch

Sprinter XL4/XL3 Deluxe, Sprinter Jumbo XL

Operates turn indicator lights.

Hazard Warning Switch

Sprinter XL4/XL3 Deluxe & Jumbo XL

A red button operates all hazard flashers.

Electromagnetic Brake

The brake is automatically operated when the thumb/finger accelerator control levers are

released. There is a slight delay when the scooter decelerates; this allows the scooter to come to

a smooth stop.

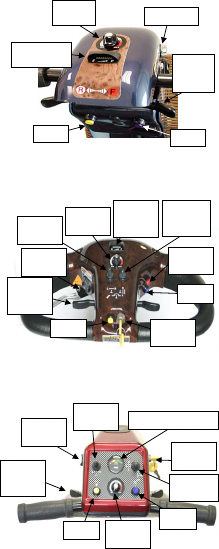

Figure 11A

Sprinter XL4

Figure 11C

Sprinter Jumbo XL

Figure 11B

Sprinter XL3 Deluxe & Sprinter XL4 Deluxe

Key

Switch

High/Low

Switch

Battery Level Indicator

Indicator

Switch

Speed

Controls

Horn

Key Switch

Thumb

Lever

Control

Speed

Control

Speed

High/Low

Switch

Horn

Key

Switch

Lights

Hazard

Lights

Finger

Lever

Control

Indicator

Switch

Lights

Finger

Lever

Control

Horn

Speed

Controls

Charging

Port

Battery Level

Indicato

Battery

Level

Indicator

Charging

Port
