Manual Saturn ST-FP1096 Meat Grinder

Manual

2 3

GB

Meat Grinder

Dear Buyer!

We congratulate you on having

bought the device under trade

name “Saturn”. We are sure that

our devices will become faithful

and reliable assistance in your

housekeeping.

Avoid extreme temperature

changes. Rapid temperature

change (e.g. when the unit is

moved from freezing temperature

to a warm room) may cause con-

densation inside the unit and a

malfunction when it is switched

on. In this case leave the unit at

room temperature for at least 1.5

hours before switching it on.If the

unit has been in transit, leave it

indoors for at least 1.5 hours be-

fore starting operation.

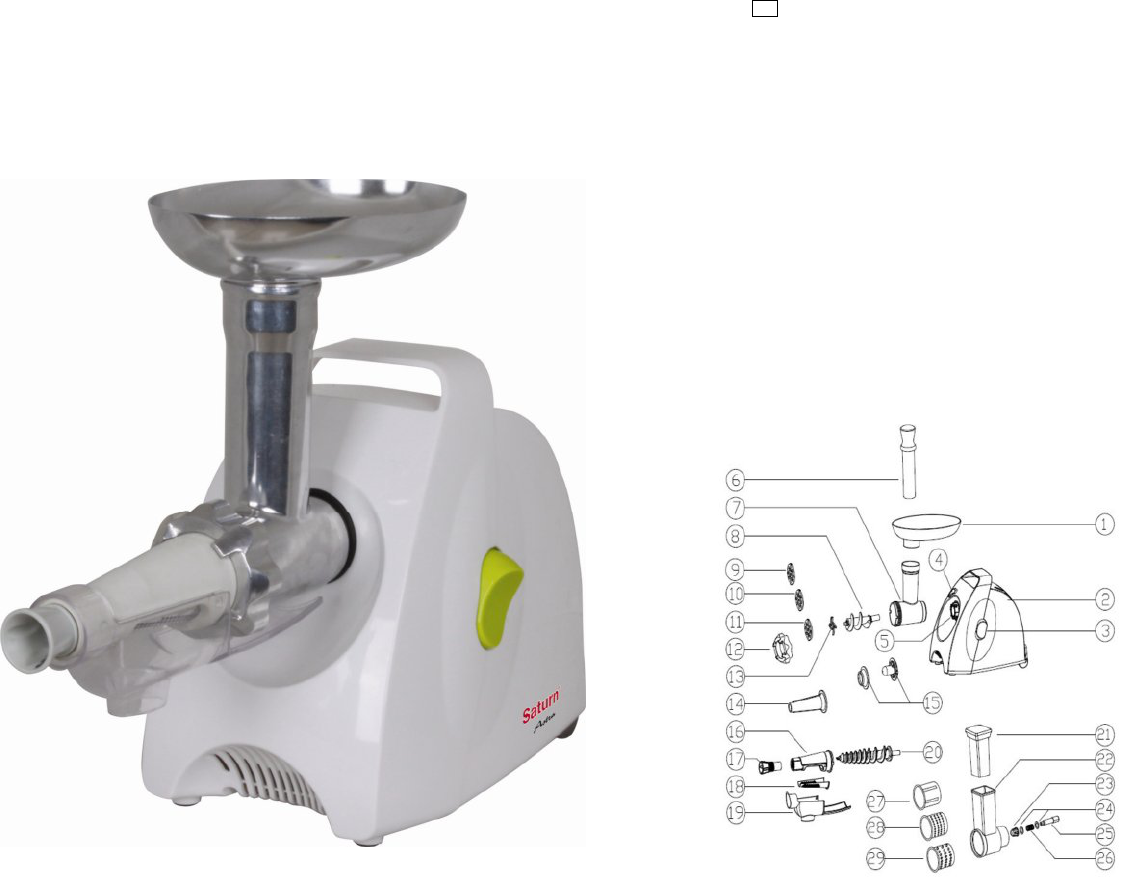

DESCRIPTION

1. Hopper plate

2. Motor housing

3. ON/OFF/ Reverse switch

4. Locking knob hole

5. Locking knob

6. Food pusher

7. Head

8. Feed screw

9. Cutting plate (fine)

10. Cutting plate (medium)

11. Cutting plate (coarse)

12. Fixing ring

13. Cutting blade

14. Sausage attachment

15. Kebbe attachment

16. Tomato attachment bracket

17. Adjustable screw

18. Sreen

19. Tomato attachment snake

20. Dam-board

21. Vegetable pusher

22. Vegetable cutting head

23. Vegetable cutting of tooth sets

24. Bushing

25. Shuan deduction for the sliced tube

26. Spring

27. Strip cutter

28. Shredded cutter

29. Slice cutter

IMPORTANT SAFEGUARDS

u Household use only. Do not use for

industrial purpose.

u Unplug from outlet when assem-

bling and disassembling the unit.

u Close supervision is necessary,

when any appliance is used near chil-

dren.

u When carrying the unit, be sure to

hold the motor housing with both

hands. Do not carry the unit by holding

only the hopper plate or head.

u Do not fix the cutting blade and

cutting plate, when using kebbe at-

tachment.

u Never feed food by hand. Always

use food pusher.

u Do not grind hard food such as

bones, nuts, etc.

u Do not grind ginger and other

materials with hard fiber.

u Continuous running of meat

grinder should be not more than 10

minutes with the following 10 minutes

interval for motor cooling.

u Reverse function is prohibited

while the appliance is operating (For

example switch “ON” knob to “R” knob

or on the contrary), wait at least one

minute until grinder has come to a

complete stop. Otherwise it may cause

an abnormal noise, vibration or a transi-

tory electric spark in the appliance. It

could result easily damage to appliance

and make the user frightened.

u After use, there would be a little

To avoid jamming, do not force to oper-

ate the unit with excessive pressure.

When the circuit breaker activates, do

Rating
