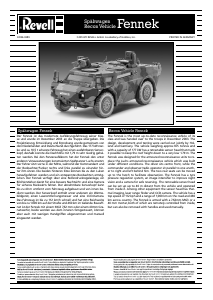

Manual Revell set 03136 Military Fennek

Need building instructions for your Revell set 03136 Military Fennek? Below you can view and download the PDF building instructions for free. This product currently has 1 frequently asked question, 0 comments and has 0 votes. If this are not the building instructions you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

Spähwagen

Recon Vehicle

Fennek

Spähwagen Fennek Recon Vehicle Fennek

Der Fennek ist das modernste Aufklärungsfahrzeug seiner Klas-

se und wurde im Dezember 2003 an die Truppe übergeben. Die

Projektierung, Entwicklung und Erprobung wurde gemeinsam von

den Niederlanden und Deutschland durchgeführt. Das 177 kW star-

ke und ca. 10,5 t schwere Fahrzeug hat einen ausfahrbaren Sensor-

kopf, deshalb konnte die Dachhöhe mit 1,79 m sehr niedrig gehal-

ten werden. Bei den Panzeraufklärern hat der Fennek den unter

anderen Voraussetzungen konstruierten Spähpanzer Luchs ersetzt.

Der Fahrer sitzt vorne in der Mitte, während der Kommandant und

der Beobachter/Funker rechts und links parallel zu einander hin-

ter ihm sitzen. Die beiden hinteren Sitze können bis zu den Luken

heraufgefahren werden und ein entspanntes Beobachten ermög-

lichen. Der Fennek verfügt über eine Reifendruckregelanlage, ein

Bild-Verstärker-Gerät für eine bessere Nachtsicht und eine Kamera

für sicheres Rückwärts fahren. Der abnehmbare Sensorkopf kann

bis zu 40 m entfernt vom Fahrzeug aufgebaut und von innen be-

dient werden. Der Sensorkopf enthält unter anderem ein Wärme-

bildgerät, einen Laserentfernungsmesser und eine CCD-Kamera.

Das Fahrzeug ist bis zu 112 km/h schnell und hat eine Reichweite

von bis zu 1.000 km auf der Straße und 460 km im Gelände. Bewaff-

net ist der Fennek mit einem MG3 7,62 mm oder einem 40mm Gra-

natwerfer, beide werden aus dem inneren ferngesteuert, können

aber auch mit wenigen Handgriffen abgenommen und manuell

eingesetzt werden.

The Fennek is the most up-to-date reconnaissance vehicle of its

class and was handed over to the troops in December 2003. The

design, development and testing were carried out jointly by Hol-

land and Germany. This vehicle weighing approx.10.5 tonnes and

with a capacity of 177 kW has a retractable sensor head that made

it possible to keep the roof height down to a very low 1.79 m. The

Fennek was designed for the armoured reconnaissance units to re-

place the Luchs armoured reconnaissance vehicle which was built

under different conditions. The driver sits centre front, while the

commander and observer/radio operator sit parallel to one anoth-

er to right and left behind him. The two rear seats can be moved

up to the hatch to facilitate observation. The Fennek has a tyre

pressure regulation system, an image intensiﬁ er to improve night

vision and a camera for safe reversing. The removable sensor head

can be set up up to 40 m distant from the vehicle and operated

from inside it. Among other equipment the sensor head has ther-

mal imaging, laser range ﬁ nder and CCD camera. The vehicle has a

top speed of 112 kph and a range of 1,000 km on the road and 460

km across country. The Fennek is armed with a 7.62mm MG3 or a

40 mm mortar, both of which are remotely controlled from inside,

but can also be removed with handles and used manually.
