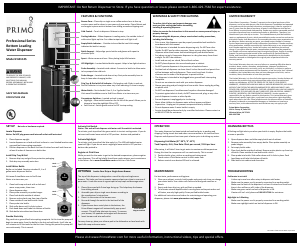

Manual Primo 601125 Water Dispenser

Manual

Locate Dispenser

Notice: Do NOT plug power cord into wall outlet until instructed.

1. Place dispenser upright.

2. Locate dispenser on a hard and level surface in a cool shaded location near

a ground fault interrupting receptacle.

3. Position dispenser so the back is at least 4 inches from wall and there are

at least 4 inches of clearance on both sides.

Install Drip Tray & Grid

1. Remove drip tray and grid from protective packaging.

2. Slide drip tray assembly onto door.

Install Water Bottle

Bottle not included. Requires standard 3, 4 or 5

gallon water dispenser bottles.

Visit www.PrimoWater.com to find Primo

Water at a store near you.

1. Clean bottle cap and neck with a cloth and

warm soapy water, then rinse.

2. Open dispenser door.

3. Place probe assembly on probe hanger.

4. Place fresh bottle outside of cabinet.

5. Remove entire plastic cap from top of bottle.

6. Clean outside of new bottle with a cloth.

7. Place probe into bottle.

8. Slide collar down until it clicks in place.

9. Push head down until tube hits bottom of bottle.

10. Slide bottle into cabinet and close door.

Provide Electricity

Plug cord into a ground fault interrupting receptacle. At this time the pump will

begin to move water from the bottle to the hot and cold tanks. It will take up

to 4 minutes to fill the tanks for the first time. During this period the pump will

run continuously. This is normal.

Primo Water Corporation, (“Vendor”) warrants to the original purchaser of this

dispenser, and to no other person, that if this dispenser is assembled and operated

in accordance with the printed instructions accompanying it, then for a period of

two (2) years from the date of purchase, all parts in such dispenser shall be free

from defects in material and workmanship. Vendor may require reasonable proof of

your date of purchase from an authorized retailer or distributor. Therefore, you

should retain your sales slip or invoice. The Limited Warranty shall be limited to

repair or replacement of parts, which prove defective under normal use and service

and which Vendor shall determine in its reasonable discretion upon examination to

be defective. Before returning any parts, you should contact Vendor’s Customer

Service Department using the contact information listed below. If Vendor confirms,

after examination, a defect covered by this Limited Warranty in any returned part,

and if Vendor approves claim, Vendor will replace such defective part without

charge. If you return defective parts, transportation charges must be prepaid by

you. Vendor will return replacement parts to original purchaser, freight or postage

prepaid. For units purchased outside of the continental US (limited to Hawaii,

Alaska, and Puerto Rico), dispensers determined to be defective by the Vendor

should be returned or exchanged at the original point of purchase within the

warranty period.

The Limited Warranty does not cover any failures or operating difficulties due to

accident, abuse, misuse, alteration, misapplication, improper installation or

improper maintenance or service by you or any third party, or failure to perform

normal and routine maintenance on the dispenser, as set out in the User’s Manual.

In addition, the Limited Warranty does not cover damages to the finish, such as

scratches, dents, discoloration or rust after purchase.

The Limited Warranty is in lieu of all other express warranties. Vendor disclaims all

warranties for products that are purchased from seller other than authorized

retailers or distributors. AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS

WARRANTY, VENDOR DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING

WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. FURTHER, VENDOR SHALL HAVE NO LIABILITY

WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT,

PUNITIVE, INCIDENTAL, OR CONSEQUENTAL DAMAGES. Vendor assumes no

responsibility for any defects caused by third parties. This Limited Warranty gives

the purchaser specific legal rights; a purchaser may have other rights depending

upon where he or she lives. Some jurisdictions do not allow exclusion or limitation

of special, incidental or consequential damages, or limitations on how long a

warranty lasts, so the above exclusion and limitations may not apply to you.

Primo Water Corporation

101 N. Cheery St, Suite 501

Winston-Salem, NC 27101

866-429-7566

LIMITED WARRANTY

Professional Series

Bottom Loading

Water Dispenser

Model # 601125

TO REDUCE THE RISK OF INJURY

AND PROPERTY DAMAGE, USER

MUST READ THIS MANUAL

BEFORE ASSEMBLING, INSTALLING

& OPERATING DISPENSER.

SAVE THIS MANUAL

FOR FUTURE USE

PN O-082 © 2013 Primo Water Corporation

FEATURES & FUNCTIONS

SET UP No tools or hardware required.

Brewer Zone – Place drip or single serve coffee makers here to free up

counter space and be closer to your source of pure water. Primo-Mount pad

and magnet system restricts brewer from sliding around and tipping over.

Cold Control – Touch to dispense. Release to stop.

Cooling Indicator – When dispenser is cooling water, the outside circle of

cold control lights up blue. For coldest output wait until light is off.

Empty Bottle Indicator – Outside circle and bottle icon blink orange

indicates the bottle is empty.

Bottle Support – Helps align sports bottles and glasses with spout to

eliminate spills.

Spout – Water comes out here. Silver plating helps kills bacteria.

LED Nightlight – Located behind bottle support. Helps in low light situations.

Probe Assembly – Located inside cabinet. Connects to bottle to allow water

to be pumped into cold tank.

Probe Hanger – Located inside door at top. Rest probe assembly here to

keep it clean when changing bottles.

Drip Tray & Grid with Full Indicator – Dishwasher safe. Slides in and out.

Red full indicator in tray rises when tray is full indicating it’s time to empty.

Water Bottle – Not included. Uses 3, 4 or 5 gallon bottles.

Visit www.PrimoWater.com to find Primo Water at a store near you.

Convenience Switches – Located on back in panel.

 Nightlight – Blue switch located on the far left of the panel. Allows you to

choose to have the nightlight ON or OFF.

 Cold Control - Switch green control to OFF to stop cooling.

Please visit www.PrimoWater.com for more useful information, instructional videos, tips and special offers.

IMPORTANT: Do Not Return Dispenser to Store. If you have questions or issues please contact 1-866-429-7566 for expert assistance.

WARNINGS & SAFETY PRECAUTIONS

To reduce risk of injury and property damage, user

must read this entire guide before assembling,

installing & operating dispenser.

Failure to execute the instructions in this manual can cause personal injury or

property damage.

When operating this dispenser, always exercise basic safety precautions,

including the following:

 Prior to use, this dispenser must be properly assembled and installed in

accordance with this manual.

 This dispenser is intended for water dispensing only. Do NOT use other

liquids. Do NOT use for other purposes. Never use any other liquid in the

dispenser other than known and microbiologically safe bottled water.

 For indoor use only. Keep water dispenser in a dry place away from direct

sunlight. Do NOT use outdoors.

 Install and use only on a hard, flat and level surface.

 Do NOT place dispenser into an enclosed space or cabinet.

 Do NOT operate dispenser in the presence of explosive fumes.

 Position back of dispenser no closer than 4 inches from wall and permit free

airflow between wall and dispenser. There must be at least 4 inches

clearance on the sides of the dispenser to permit airflow.

 The dispenser is intended to be plugged into a ground fault interrupting

receptacle.

 Do not use an extension cord with your water dispenser.

 Always grasp plug and pull straight out from outlet. Never unplug by pulling

on power cord.

 Do NOT use dispenser if cord becomes frayed or otherwise damaged.

 To protect against electric shock, do NOT immerse cord, plug, or any other

part of dispenser in water or other liquids.

 Ensure dispenser is unplugged prior to cleaning.

 Never allow children to dispense water without proper and direct

supervision. Unplug unit to prevent unsupervised use by children.

 Do not dispense water if water bottle is empty.

 Service should be performed only by a certified technician. Please contact us

at 866-429-7566 for assistance.

Activate Cold Switch

Notice: This unit will not dispense cold water until the switch is activated.

To activate, push top side of the green switch in to start cooling water. If you do

not want cold water leave switch in OFF position – bottom side pushed in.

Activate Nightlight

To activate, push top side of the blue switch in. The LED bulb behind center

spout will light. If you do not want a nightlight leave switch in OFF position –

bottom side pushed in.

Register at Club Primo

While you wait for the water to get to the desired temperatures, please register

your dispenser. This will be helpful should you need customer service assistance

in the future. Go to www.PrimoWater.com and click on Club Primo.

OPTIONAL Locate Your Drip or Single Serve Brewer

The top of this dispenser is designed as a corral for drip and single serve

brewers. This helps you free up counter space and puts you close to a source of

pure water. It can also serve as a great spot to keep cups and beverage mixes.

1. Place silicone pad with Primo logo facing up. This helps keep the brewer

from sliding around.

2. Assemble your drip or single serve brewer according to

the manufacturer’s instructions.

3. Place it in the center of the brewer zone.

4. Run cord through the notch in the back wall of the

dispenser.

5. If your brewer has a metal plate in the bottom, the

Primo-Mount magnet will automatically pop up and

connect. This will help eliminate tip overs. To remove

your brewer, lift upwards and magnet will disconnect.

6. Insert brewer cord into wall outlet.

For easy clean up, place your silicone pad in the dishwasher or hand wash with

liquid dish soap and warm water.

OPERATION

This water dispenser has been tested and sanitized prior to packing and

shipping. During transit dust and odors can accumulate in the tank and lines.

Dispense and dispose at least one quart of water prior to drinking any water.

Dispensing Cold Water (37°-50°F / 3°-10°C)

Tank Capacity: 3.6L, Flow Rate: 35mL per second / 126L per hour

After setup, it will take 1 hour to get water to maximum cold temperature.

During this time the compressor will run continuously. This is normal.

1. Position bottle, glass, pitcher or cooking pot below spout.

2. Touch center of cold water control to start water flow.

3. Release control once desired fill level is achieved.

MAINTENANCE

For best taste, performance and hygiene:

1. Clean your cabinet, controls, bottle probe and spout each time you change

your water bottle. Use a clean soft cloth and a food grade sanitizer or

bleach.

2. Empty and clean drip tray, grid and float as needed.

3. To minimize mineral deposits which can clog lines and imparts odors and

off-tastes, use only high quality Primo purified bottled water.

For additional instructions and videos for maintaining and operating your

dispenser, please visit www.primowater.com/support.

CHANGING BOTTLES

A flashing red light alerts you when your bottle is empty. Replace the bottle

as soon as possible.

1. Open dispenser door and slide empty bottle out of cabinet.

2. Remove probe assembly from empty bottle. Place probe assembly on

probe hanger.

3. Set empty bottle aside.

4. Place fresh bottle outside of cabinet. Remove entire plastic cap from top

of bottle. Clean outside of new bottle with a cloth.

5. Place probe into bottle. Slide collar down until it clicks in place. Push

head down until tube hits bottom of bottle.

6. Slide bottle into cabinet and close door.

TROUBLESHOOTING

Cold water is not cold.

 It takes up to one hour after setup to dispense cold water.

 Make sure the power cord is properly connected to a working outlet.

 Make sure the back of the dispenser is at least 4 inches from a wall and

there is free airflow on all 4 sides of the dispenser.

 Make sure green switch on back of dispenser is ON.

 If water still isn’t cold, please call 866-429-7566 for assistance.

Nightlight Isn’t Working

 Make sure the power cord is properly connected to a working outlet.

 Make sure nightlight switch on back of dispenser is ON.

Head

Collar

5

Gallon

Head

Collar

3

Gallon

Primo-Mount

Magnet and Pad

Rating

More about this manual

We understand that it’s nice to have a paper manual for your Primo 601125 Water Dispenser. You can always download the manual from our website and print it yourself. If you would like to have an original manual, we recommend you contact Primo. They might be able to provide an original manual. Are you looking for the manual of your Primo 601125 Water Dispenser in a different language? Choose your preferred language on our homepage and search for the model number to see if we have it available.

Specifications

All manuals for Primo Water Dispensers
More manuals of Water Dispensers

Related products

Manual

Primo 601272-C Water Dispenser

Manual

Primo 601242-C Water Dispenser

Manual

Primo 601243-C Water Dispenser

Manual

Primo 601118 Water Dispenser

Manual

Primo 601256 Water Dispenser

Manual

Primo 601126 Water Dispenser

Manual

Primo 601258 Water Dispenser

Manual

Primo 601001 Water Dispenser

Related categories
