Getting started

VQT3R83

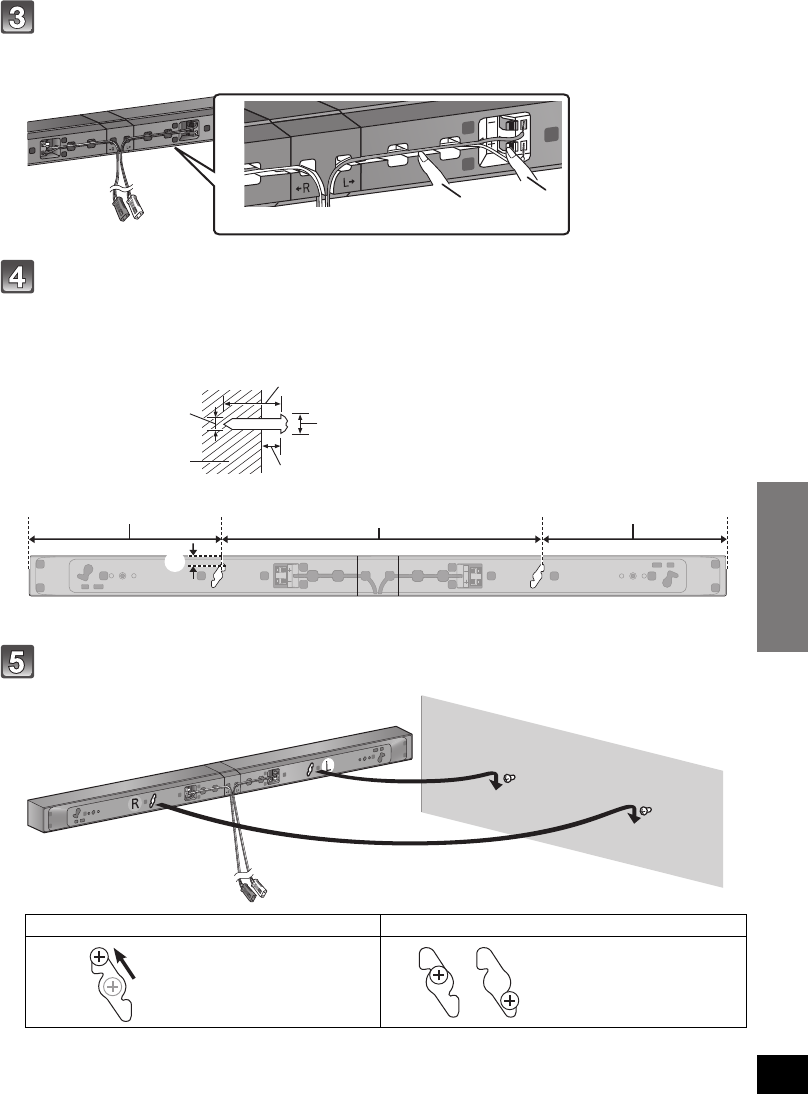

Connect the speaker cables.

≥ To make sure that the speaker cable is connected to the correct speaker, match the colour of the speaker connector with the

colour of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.

≥ Insert the wire fully, taking care not to insert beyond the wire insulation.

Drive a screw (not supplied) into the wall.

≥ Use the measurements indicated below to identify the screwing positions on the wall.

≥ Leave at least 20 mm of space above and each side of the speaker to allow enough space for fitting the speaker.

≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over 33 kg.

≥ Keep the screws out of reach of children to prevent swallowing.

Fit the speaker securely onto the screw(s) with the hole(s).

1 Insert the wire fully.

r: White

s: Blue line

2 Press into the

groove.

A At least 30 mm

B ‰4.0 mm

C ‰7.0 mm to ‰9.4 mm

D Wall or pillar

E 5.5 mm to 6.5 mm

F 211 mm G 388 mm H 201 mm I 14.3 mm

DO DO NOT

≥ Move the speaker so

that the screw is in

this position.

≥ In this position, the

speaker will likely fall

if moved to the left or

right.





Push

















SC-HTB15EGEBGNGS_VQT3R83.book Page 11 Tuesday, June 28, 2011 2:34 PM
