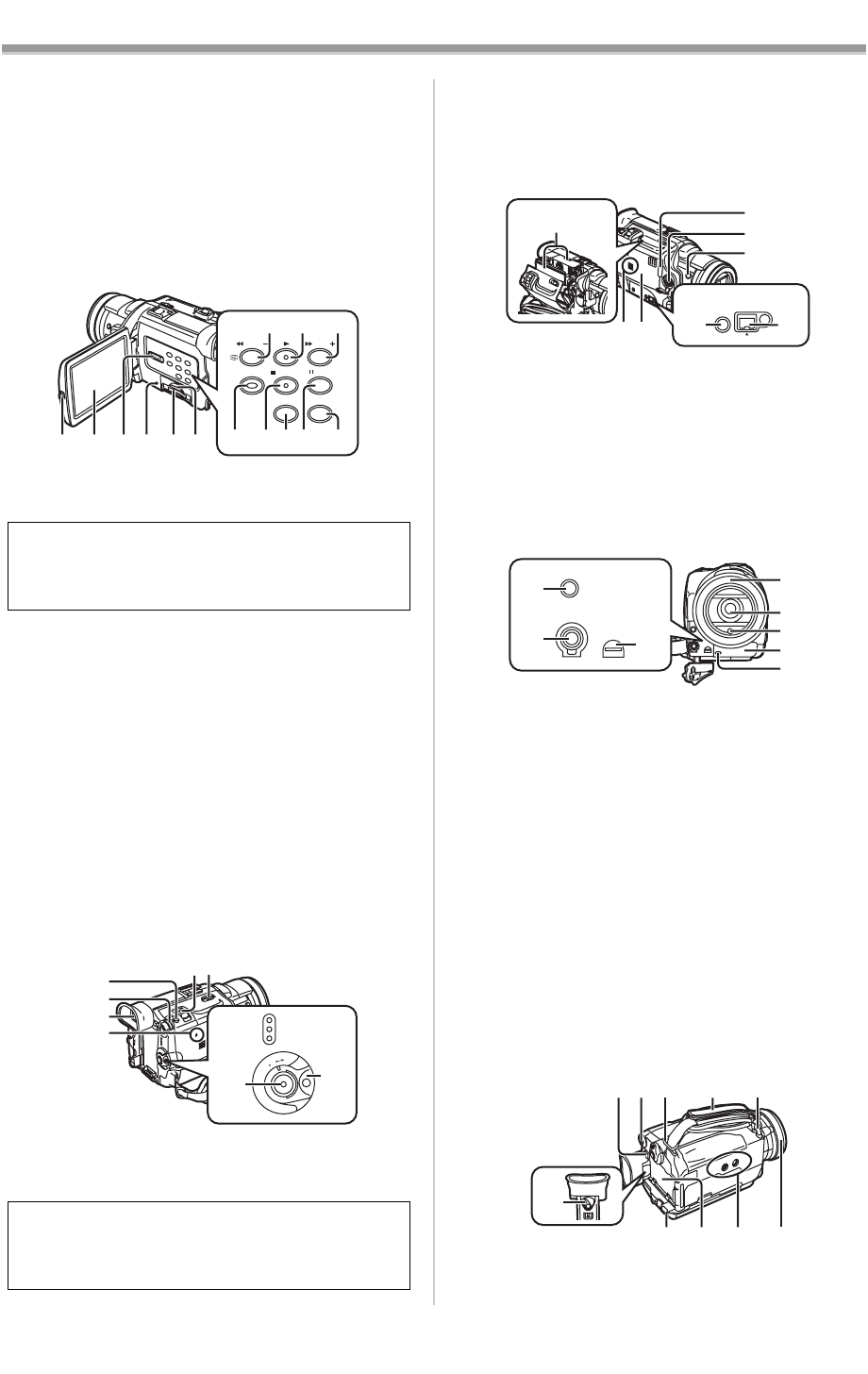

Before Use

-5-

Movie Camera when using an accessory supported by

the Smart Accessory Shoe.

≥Do not touch the connector part of the Smart Accessory

Shoe.

(5) Optical Image Stabilizer Button

[OPTICAL IMAGE STABILIZER]

-16-

(6)

Backlight Button [BLC] -17-

(7)

Fade Button [FADE] -16-

(8)

Mode Selector Switch [AUTO/MANUAL/AE LOCK]

-14-, -17-, -20-

(9)

Focus Button [FOCUS] -20-

(10)

White Balance Button [W.B] -18-

(11) LCD Monitor Open Button [PUSH OPEN] -10-

(12)

LCD Monitor -10-, -49-

(13)

Tape/Card Selector [TAPE/CARD/CARD MODE] -30-

(14)

Card Access Lamp [ACCESS] -30-

(15)

Card Slot -30-

(16)

Card Slot Cover -30-

(17)

Rewind/Review Button [6] -24-, -32-

Reverse Search Button [SEARCHj] -14-

Recording Check Button [S] -14-

(18)

Play Button [1] -24-, -32-

(19)

Fast Forward/Cue Button [5] -24-, -32-

Forward Search Button [SEARCHi] -14-

(20)

Colour Night View Button [C.NIGHT VIEW] -17-

(21)

Stop Button [∫] -24-, -32-

Web Camera Button [WEB CAMERA] -38-

(22)

Title Button [TITLE] -35-

(23)

Pause Button [;] -25-, -32-

Still Button [STILL] -15-

(24)

Multi Button [MULTI] -23-, -27-, -35-

Picture-in-Picture Button [P-IN-P] -22-

(25)

Photoshot Button [PHOTO SHOT] -15-, -30-, -33-

(26)

Multi-Function Dial [PUSH] -10-, -24-

(27)

Viewfinder -9-, -49-

(28)

Reset Button [RESET] -41-

Due to limitations in LCD production technology, there

may be some tiny bright or dark spots on the LCD

Monitor screen. However, this is not a malfunction and

does not affect the recorded picture.

Due to limitations in LCD production technology, there

may be some tiny bright or dark spots on the Viewfinder

screen. However, this is not a malfunction and does not

affect the recorded picture.

C.NIGHT VIEW

TITLE

MULTI/P-IN-P

STILL

SEARCH SEARCH

WEB CAMERA

(11)(12)(13)(14)(15)(16)

(17)

(18) (19)

(20)(21)(22)(23)(24)

CAMERA

VCR

CARD P.B

(25)

(26)

(27)

(28)

(29)(30)

(31)

(32)

(33)

(29)

Zoom Lever [W/T] -15-

(30)

Cassette Eject Lever [OPEN/EJECT] -9-

(31)

Operation Mode Lamps [CAMERA/VCR/CARD P.B]

-9-, -14-, -24-, -32-

(32)

Recording Start/Stop Button -14-, -31-

(33)

Off/On Mode Selector Switch [OFF/ON/MODE]

-9-, -14-, -47-

(34)

Cassette Holder

(35) Cassette Holder Close Button [PUSH CLOSE] -9-

(36)

S-Video Input/Output Socket [S-VIDEO IN/OUT] -27-

(37)

Sub Recording Start/Stop Button [REC] -14-

(38)

Speaker -24-

(39)

Cassette Compartment Cover -9-

(40)

Digital Still Picture Terminal

[DIGITAL STILL PICTURE]

-38-

(41)

DV Terminal [DV] -29-

≥Connect this to the digital video equipment.

(42) Microphone Socket [MIC]

≥Connect with an external microphone or audio

equipment. (When this socket is in use, the built-in

microphone does not operate.)

(43) Audio-Video Input/Output Socket [AV IN/OUT] -27-

Headphone Socket [PHONES] -44-

Free Style Remote Controller Socket [REMOTE] -6-

≥Connecting an AV Cable or Free Style Remote

Controller to this socket activates the Movie Camera’s

built-in speaker, but connecting a headphone, etc.

deactivates it.

≥When plugging the pin plug of the AV Cable or Free

Style Remote Controller to this socket, plug it in as far

as it goes.

(44) USB Socket [USB] -38-

Edit Socket [EDITD(MINI)]

(45) Lens Hood -49-

(46)

Lens (LEICA DICOMAR)

(47) Flash Sensor -21-

(48)

Remote Control Sensor -7-

(49)

Recording Lamp -14-

(50)

Battery Eject Button [PUSH BATT] -8-

(51)

Menu Button [MENU] -10-

(52)

Shoulder Strap Holders -9-

DIGITAL

STILL


(34)

(35)

(36)

(37)

(38)(39)

(40)

(41)

MIC

AV IN/OUT

PHONES/REMOTE

USB/

EDIT

(MINI)

(42)

(43)

(44)

(45)

(46)

(47)

(48)

(49)

(50)(51)(52) (53) (54)

(55)

(52)

(56) (57) (58)
