Parts and their Functions: Audio (input) Function Section

Parts and their Functions

1. MIC IN (microphone input) jack (XLR, 5-pin)

A microphone (optional) is connected here. Power can

be supplied via this jack to allow use of a phantom

microphone. Note that the FRONT MIC POWER menu

option must be set to “ON” when using a phantom

microphone.

These options are found in the <MIC/AUDIO2> screen

on the MAIN OPERATION page.

2. AUDIO LEVEL CH1/CH2 (audio channel 1 & 2

recording level adjustment) controls

With the 3. AUDIO SELECT CH1/CH2 switch positioned

to [MAN], these controls can be used to adjust the

recording levels for audio channels 1 and 2.

Note that the controls are designed to be locked. For

adjustment, each control must be depressed while

turning.

3. AUDIO SELECT CH1/CH2 (audio channel 1 & 2

automatic/manual level adjustment selector)

switch

Use this switch to select recording level control mode for

audio channels 1 and 2.

AUTO: Recording level automatically controlled.

MAN: Recording level manually controlled.

4. AUDIO IN (audio input selector) switch

Use this switch to select the signals recorded through

audio channels 1 - 4.

FRONT: Signal from the microphone connected to the

1. MIC IN jack is recorded.

W.L. (WIRELESS):

Signal from the slot-in wireless receiver is

recorded.

REAR: Signal from the audio device connected to the

5. AUDIO IN CH1/CH2 connector is recorded.

Note

When you use stereo microphone (AJ-MC900G,

optional), set both CH1 and CH2 to [FRONT]. The

signal from L CH is recorded to CH1 and that from R CH

to CH2.

5. AUDIO IN CH1/CH2 (audio input channel 1 & 2)

connectors (XLR, 3-pin)

Audio devices or a microphone may be connected here.

6. LINE/MIC/+48V (line input/mic input/mic input

+48 V) selector switch

Used to select the audio signal input from the 5. AUDIO

IN CH1/CH2 connectors.

LINE: Audio signal line-input from the audio device

is input.

MIC: Audio signal from a self-powered (active)

microphone is input. (Power for a phantom

microphone is not supplied to the microphone

from the unit.)

+48V: Audio signal from a passive microphone is

input. (Power for a phantom microphone is

supplied to the microphone from the unit.)

7. Wireless slot

A Unislot wireless receiver (optional) may be attached

here.

8. FRONT AUDIO LEVEL (audio recording level

adjustment) control

This control adjusts the recording levels for audio

channels 1 and 2.

However, when the 3. AUDIO SELECT CH1/CH2 switch

is set to [AUTO], the level will adjust automatically and

the 2. AUDIO LEVEL CH1/CH2 knob and this knob will

not be active.

The control can be enabled or disabled through the

menu options FRONT VR CH1 or FRONT VR CH2.

These options can be found in the <MIC/AUDIO1>

screen on the MAIN OPERATION page.

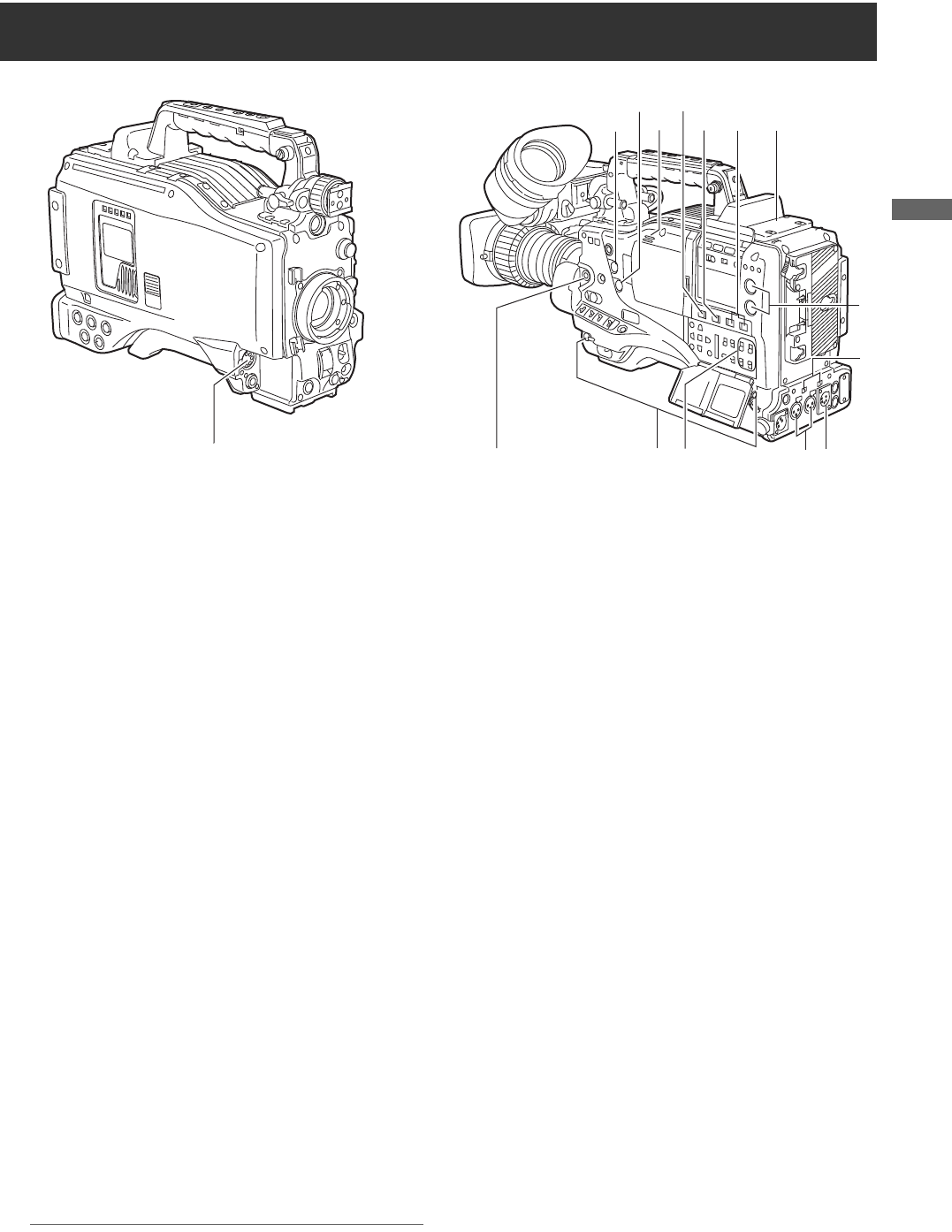

Audio (input) Function Section

14 10

815

AJ-HPX3700G-VQT1V68_eng.book 17 ページ２００８年１０月１５日　水曜日　午後６時３８分
