WARNING!
Do not use tungsten carbide tipped blades for
masonry or metal cutting applications.
HW, t=40 EN 847-1
Installing The Dust Port Adaptor
A 35mm vacuum hose and vacuum can be attached to the extraction port on
the rear for dust extraction during use.
1. Undo the Phillips head screw on the back
of the unit.
2. Push the dust extraction adaptor onto the
port.
3. Replace the screw to lock the adaptor in
place.
4. Connect a suitable vacuum or dust extraction system to the dust
extraction adaptor for use with the table saw.
Installing The Riving Knife & Blade Guard
1. Unlock the table insert by using
a spanner to turn the insert lock.
Then lift and remove the table
insert.
2. Raise the blade to its highest position by
turning the adjustment wheel clockwise.
Note: Ensure the bevel angle is set to 0°.
3. Use the 10mm spanner to loosen the
riving knife bolt.
4. Insert the riving knife behind
the plate, leaving a 3-8mm gap
between the riving knife and
blade teeth.
5. Re-tighten the riving knife bolt.
6. Replace the table insert and use the
spanner to lock it in place.

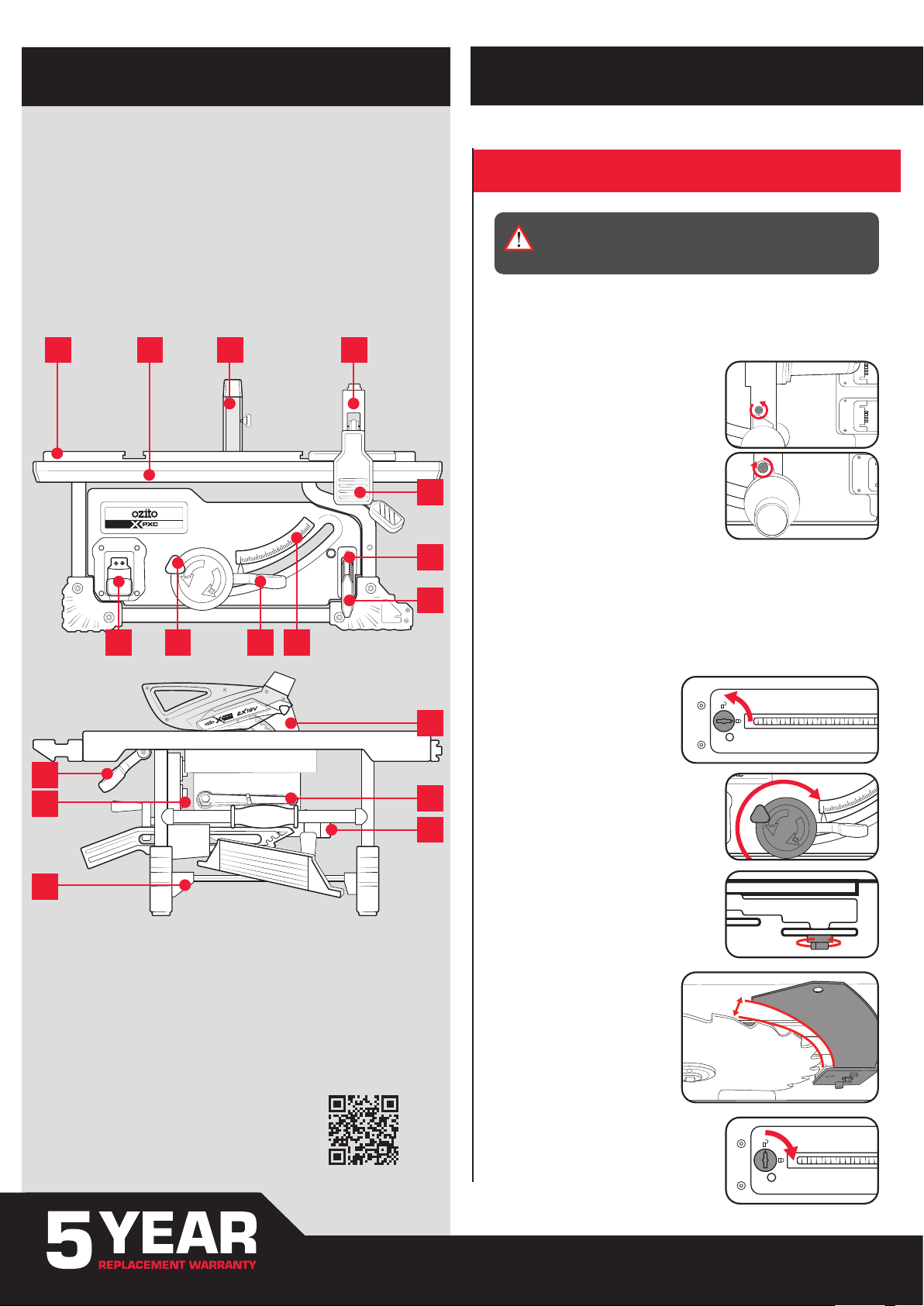

1. Table
2. Extension Table
3. Blade Guard
4. Rip Fence
5. Rip Fence Lock Lever
6. Push Stick Storage
7. Push Stick
8. Bevel Scale
9. Bevel Lock Lever
10. Height Adjustment Wheel
11. On/Off Switch
12. Riving Knife
13. Spanner Storage
14. Dust Port Adaptor
15. Mitre Guide Storage
16. Battery Seating
17. Extension Table Lock Lever
This tool is compatible with all batteries & chargers from the Ozito PXC range.
For optimal performance, we recommend the use of 3.0Ah batteries or
higher to operate this PXC Table Saw
.
CORDLESS TABLE SAW
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
0
10
20
30
40
50
60
60
50
40
30
20
10
01234567891011121314151617181920212223
0123456789101112131415161718
cm
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32210
0cm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25
57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20
cm
0
10
20
30
40
50
60
60
50
40
30
20
10
01234567891011121314151617181920212223
0123456789101112131415161718
cm
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32210
0cm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25
57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20
cm
17
16
15
1 432
7
12
13
14
6
5
10 911 8
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERIES ARE REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Join the conversation about this product
Here you can share what you think about the Ozito PXTBSS-036 Table Saw. If you have a question, first carefully read the manual. Requesting a manual can be done by using our contact form.
