Manual Noctua NH-U9F CPU Cooler

Need a manual for your Noctua NH-U9F CPU Cooler? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

LGA775

Installation

Chapter 2

NH-U12F

Installation Manual

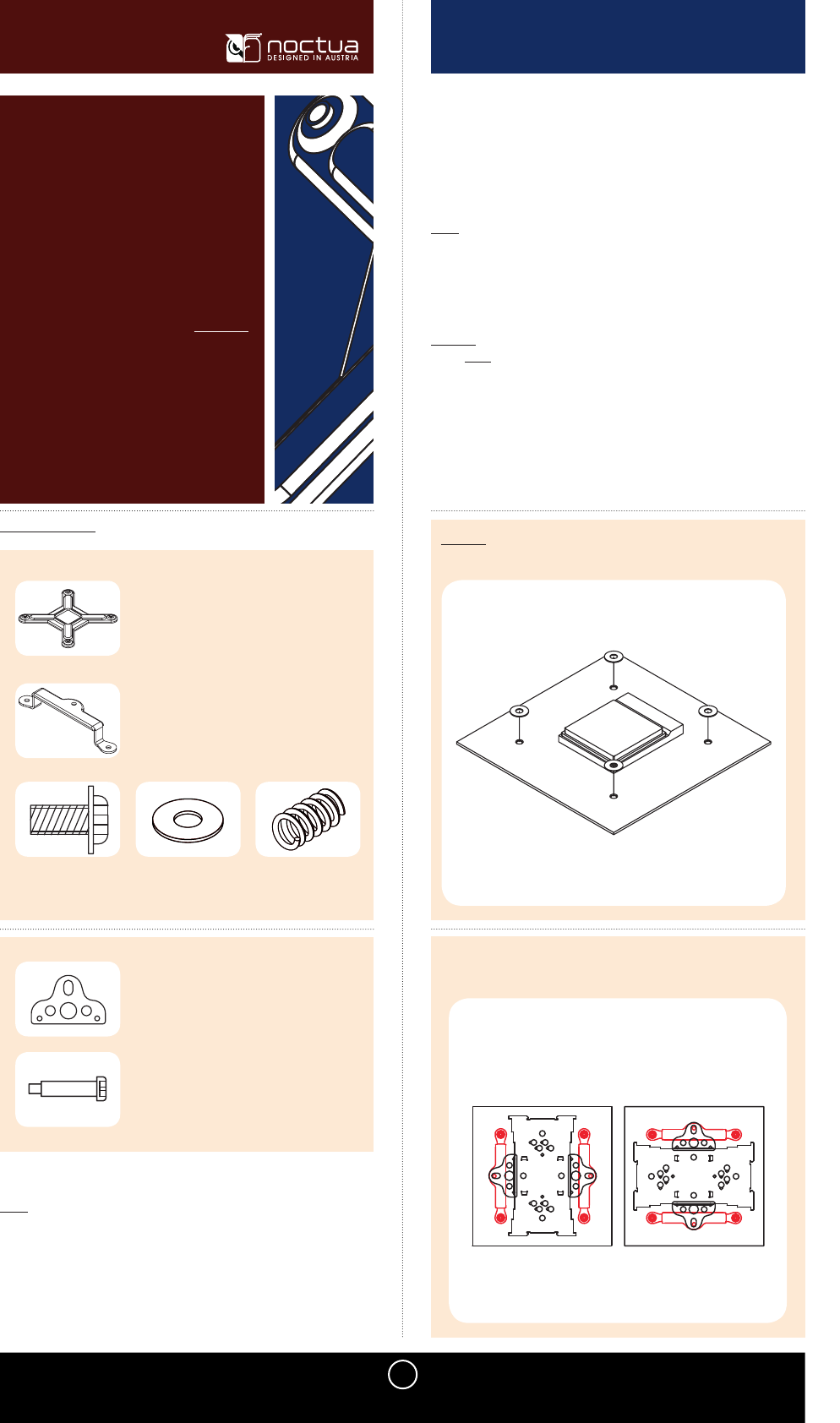

[ LGA775 Installation ][ Noctua NH-U12F ]

Mounting hardware:

1x LGA-backplate

(black, x-shaped without cut-out)

2x Long mounting bars

(fitting the backplane)

8x Short screws

4x Red, thin

washers

2x Pressure springs

Standard fastening brackets

Short, silver-coloured springscrews

In case you want to use the NH-U on an assembled system, you first have to

remove the mainboard from the case as the cooler has to be screwed together

with the backplate on the back side of the mainboard.

Removing the mainboard and retention module

Step 1:

If your mainboard uses a retention module for CPU cooler installation, you have

to remove it first. Should you experience any difficulties, please consult your

mainboard’s manual. If your previous CPU cooler is attached using a different

mounting mechanism, please remove it according to its manual.

Place the backplate on the back side of the mainboard, aligning the backplate’s

screw sockets with the mainboard’s screwholes.

Caution: The rubber foam square of the LGA backplate has to face the main-

board. Don’t remove the white protection film!

Attaching the backplate on the back side of the mainboard

Step 2:

Caution: Don’t forget to put 4 washers between the mainboard and the

mounting bars to avoid damage to the mainboard.

Orientation A Orientation B

Choose the alignment of the mounting bars according to the desired final

orientation of the cooler:

Download manual in English (PDF, 11.91 MB)
