Manual

General Information and Connector Information

Connector and Cable Information

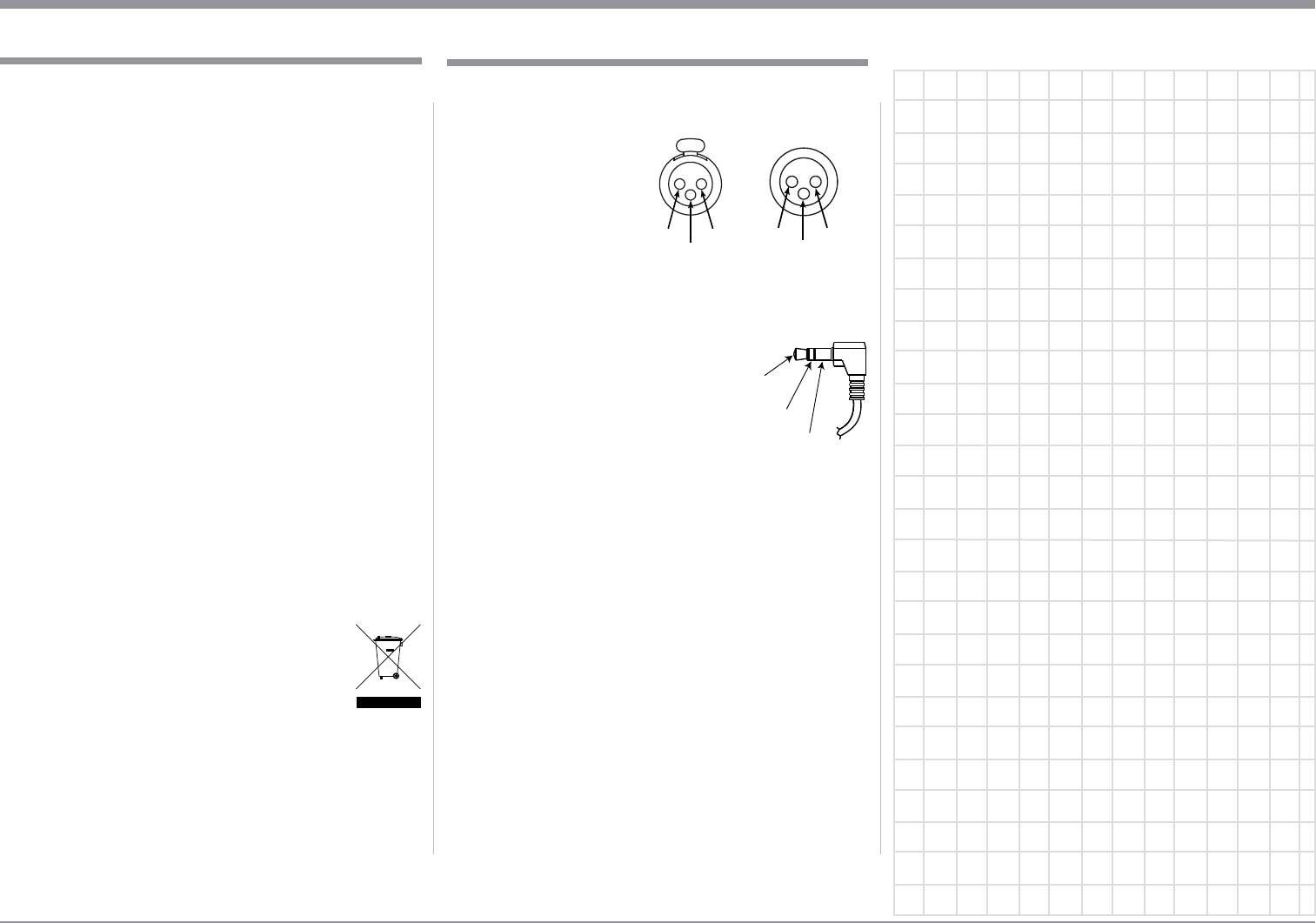

XLR Connectors

Below is the Pin configuration for the XLR Balanced

Output Connector on the MP1100. Refer to the dia-

gram for connections:

PIN 1: Shield/Ground

PIN 2: + Output

PIN 3: - Output

Power Control (Trigger) Connectors

When the MP1100 TRIGger IN Connector receives a

Power Control On Signal (5 to 12 volts) it will make

that signal available at the TRIG-

ger OUT Connector to control

other connected McIntosh Com-

ponents. An additional connection

is for controlling the illumination

of the Output Meters on McIntosh

Components. A 3.5mm stereo mini phone plug is used

for connection to the Power Control (Trigger) Connec-

tors on the MP1100.

1. For additional connection information, refer to the

owner’s manual(s) for any component(s) connected

to the MP1100 Phono Preamplifier.

2. The Main AC Power going to the MP1100 and any

other McIntosh Component(s) should not be applied

until all the system components are connected

together. Failure to do so could result in mal-

functioning of some or all of the system’s normal

operations. When the MP1100 and other McIntosh

Components are in their Standby Power Off Mode,

the Microprocessor’s Circuitry inside each com-

ponent is active and communication is occurring

between them.

3. The Balanced and Unbalanced Outputs may be

used simultaneously, connected to different Pream-

plifiers or component recording device.

4. The MP1100 internal Analog to Digital Converter

Circuitry is designed to encode 2-channel PCM

(Pulse Code Modulation) Digital Signals. The

Coaxial and Optical Digital Audio Outputs are for

PCM Digital Signals.

5. Sound Intensity is measured in units called Deci-

bels and “dB” is the abbreviation.

6. When discarding the unit, comply with local rules

or regulations. Batteries should never be

thrown away or incinerated but disposed

of in accordance with the local regulations

concerning battery disposal.

7. For additional information on the MP1100

and other McIntosh Products please visit the McIn-

tosh Web Site at www.mcintoshlabs.com.

General Information

Power

Control

Meter

Illumination

Control

Ground

PIN 2 PIN 1

PIN 3

PIN 1

PIN 2

PIN 3
