Important Safety Information is supplied in a separate document “Important Additional Operation Information Guide

”

Inside the Box

Besides all the protective packaging you should nd:

• A literature pack including this manual

• An AC Power Cord

• An MHA200 Headphone Amplier

Taking it out of the Box

The easiest way to remove the MHA200 from its

shipping carton is to:

• Open the top of the box

• Remove and read this manual

• Gently turn the box over with the aps

extended outward

• Lift the box upward to reveal the foam

encased MHA200

• Carefully remove the MHA200 from the

packaging

Where to Put it

Place the MHA200 upright on a sturdy at surface

that can support its weight with adequate open space.

Cool operation ensures the longest possible operating

life for any electronic instrument. Always allow air to

ow through the ventilation holes on the bottom of the

amplier and space for the warm air to escape at the

top.

Allow at least 19 inches (48.3cm) above the top; 4

inches (10.2cm) for the Rear and Sides; allow 1/2 inch

(1.3cm) below the Power Amplier so the airow is

not obstucted. Do not remove the feet.

For dimensions see “Dimensions” on page 6.

DO THIS FIRST

Removal of Foam Inserts over Vacuum

Tubes

IMPORTANT!

REMOVE THE FOAM INSERTS OVER THE

VACUUM TUBES PRIOR TO CONNECTING

THE A.C. POWER SUPPLY CORD.

• To prevent damage to the Tubes during

shipping, there are special foam inserts

surrounding the Tubes of the Power Amplier

• The Foam Inserts must be removed from

the MHA200 before connecting the AC Power

Supply Cord to the Power Amplier

• Failure to do so has the potential of a

Fire Hazard, resulting in damage to the

MHA200 and the surrounding environment

• Follow these instructions for removal of

the packing foam before connecting the AC

Power Supply Cord to the MHA200

To remove the protective foam, it is necessary to

temporarily remove the two Tube Covers. To remove

each Tube Cover:

• Use a Phillips Head #2 screw driver to remove

the two screws that hold the Tube Cover (see

Figure 01)

• Pull the Tube Cover upward o of the Tube

Cover Retaining Posts (see Figure 02)

• Pull the protective foam straight up o the

Vacuum Tubes (see Figure 02)

• Replace the Tube Cover

• Replace the two screws to secure the cover to

the Tube Cover Retaining Posts (see Figure

01)

Save the protective foam and warning label for

possible future use.

ANDBY /

ST ON

LOAD RANGE

STER EO

HEAD PHONE OUTPUT S

STER EO

INPUTS

120V 50 60Hz/

50 WATTS

McINTOSH LABORATORY, INC., BINGHAMTON, NY

HANDCRAFTED IN USA WITH US AND IMPORTED PARTS

MHA 200 TUBE HEADP HONE AMPL IFIE R

POWER

CONTROL

BALANCEDUNBALANCED

OUT

Screws

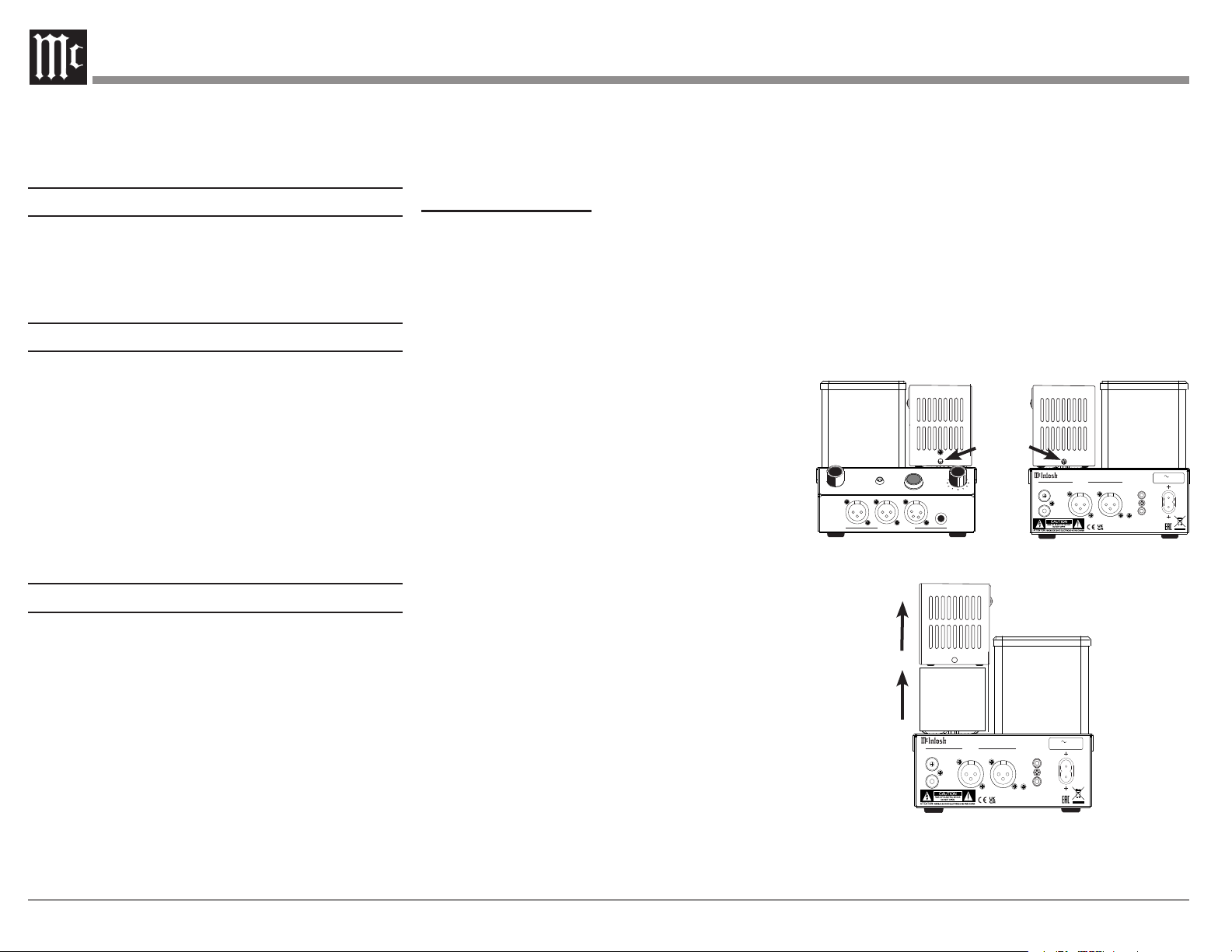

Figure 01– Tube cover screws

INPUTS

120V 50 60Hz/

50 WATTS

McINTOSH LABORATORY, INC., BINGHAMTON, NY

HANDCRAFTED IN USA WITH US AND IMPORTED PARTS

MHA 200 TUBE HEADP HON E AMPLIFIER

POWER

CONTROL

BALANCEDUNBALANCED

OUT

Figure 02– Lift Tube Cover and foam up
