Manual

RS232-C Data Port Cable

The RS232 Data Cable is a 3.5mm stereo mini phone

plug to a subminiature DB 9 connector:

Output Terminal Connector

When cables with spade lugs are used

for Loudspeaker Connection, the spade

lugs need an opening of at least 3/10 inch

(7.6m m).

McIntosh Plug-In Jumper Connector

The MAC7200 utilizes two phono style Plug-In Jump-

ers to connect the Preamplifier Output to the Power

Amplifier Input.

Note: The Jumper Connector is available from the McIn-

tosh Parts Department:

McIntosh Jumper Connector Part

No. 117781

FM Dipole Antenna

The MAC7200 FM Tuner Circuitry requires the con-

nection of an external Antenna for FM reception. A

“FM Dipole Antenna” is available from the McIntosh

Parts Department:

FM Dipole Antenna Part

No. 173033

XLR Connectors

Below is the Pin configuration for the XLR Balanced Input

Connectors on the MAC7200. Refer to the diagram for con-

nection:

PIN 1: Shield/Ground

PIN 2: + Output

PIN 3: - Output

Power Control and Trigger Connectors

The Power Control Trigger Output

Jacks send and Passthru Input Jack

receives Power On/Off Signals

(+12 volt/0 volt) when connected

to other McIntosh Components.

An additional connection is for

controlling the illumination of the

Power Output Meters on McIntosh

Power Amplifiers. A 3.5mm stereo mini phone plug is

used for connection to the Power Control, Trigger and

Passthru Outputs.

Data Port Connectors

The Data Out Ports send Remote

Control Signals to Source Compo-

nents. A 3.5mm stereo mini phone

plug is used for connection.

IR IN Port Connectors

The IR IN Port also uses a 3.5mm

stereo mini phone plug and allows

the connection of other brand IR

Receivers to the MAC7200.

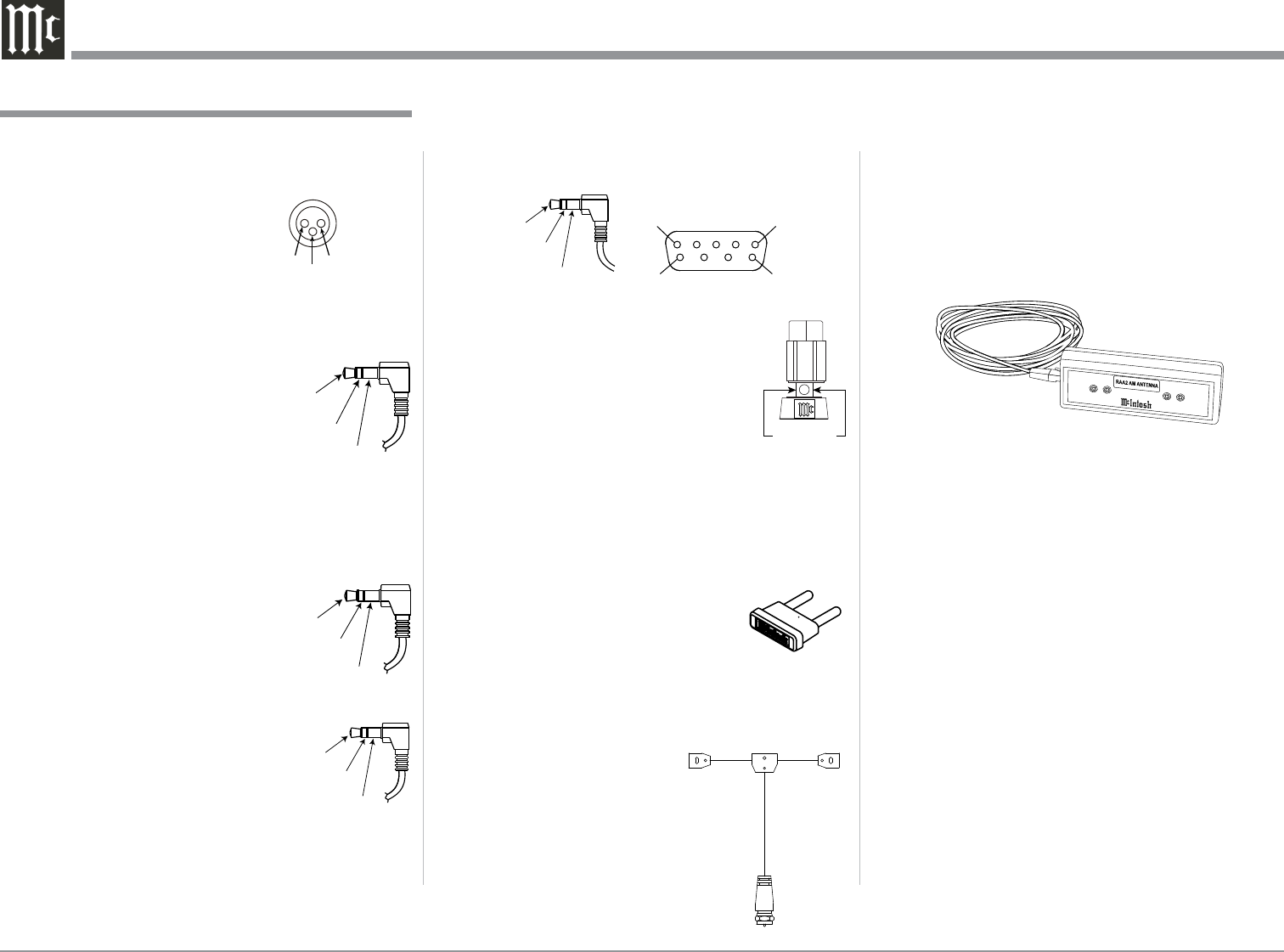

Connector and Cable Information

Data

Signal

N/C

Data

Ground

Power

Control

Meter

Illumination

Control

Ground

Main, Trig 1&2

and Pass-Thru

PIN 1

PIN 2

PIN 3

IR Data

Control

Ground

N/C

General Information, Connector and Cable Information

PIN 1

PIN 6

PIN 5

PIN 9

Data In

(DB9-pin2)

Ground

(DB9-pin5)

Data Out

(DB9-pin3)

DB9

(male connector)

3/10 of an inch

(7.6millimeters)

McIntosh RAA2 AM Antenna

The AM Tuner Circuitry requires the connection

of the external McIntosh RAA2 Antenna for AM

reception. The RAA2 Antenna is supplied with the

MAC7200 Receiver. The “AM Antenna” is also avail-

able from the McIntosh Parts Department:

RAA2 AM Antenna with connecting cable

Part No. 31036400
