Installation

The D1100 can be placed upright on a table or shelf,

standing on its four feet. It also can be custom in-

stalled in a piece of furniture or cabinet of your

choice. The four feet may be removed from the bottom

of the D1100 when it is custom installed as outlined

below. The four feet together with the mounting

screws should be retained for possible future use if the

D1100 is removed from the custom installation and

used free standing. The required panel cutout, ventila-

tion cutout and unit dimensions are shown.

Always provide adequate ventilation for your

D1100. Cool operation ensures the longest possible

operating life for any electronic instrument. Do not

install the D1100 directly above a heat generating

component such as a high powered amplifier. If all

the components are installed in a single cabinet, a

quiet running ventilation fan can be a definite asset in

maintaining all the system components at the coolest

possible operating temperature.

A custom cabinet installation should provide the

following minimum spacing dimensions for cool

operation.

Allow at least 2 inches (5.1cm) above the top, 2

inches (5.1cm) below the bottom and 1 inch (2.5cm)

on each side of the Preamplifier, so that airflow is not

obstructed. Allow 19 inches (48.3cm) depth behind the

front panel. Allow 1-7/16 inch (3.7cm) in front of the

mounting panel for knob clearance. Be sure to cut out

a ventilation hole in the mounting shelf according to

the dimensions in the drawing.

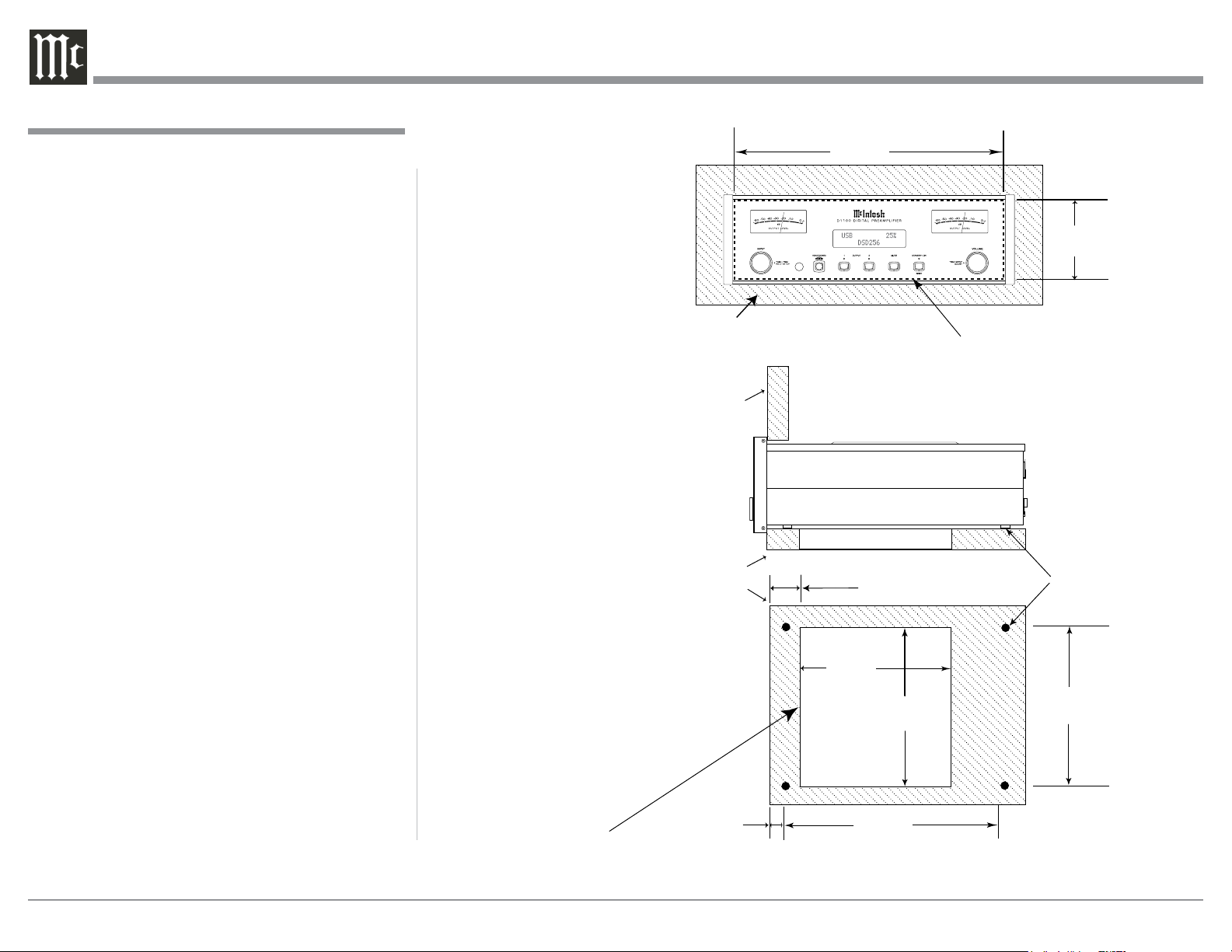

D1100 Front Panel

Custom Cabinet Cutout

Cutout

Opening

for

Ventilation

Cutout Opening for Ventilation

Support

Shelf

Chassis

Spacers

D1100 Side View

in Custom Cabinet

12-5/16"

31.3cm

Cabinet

Front

Panel

Note: Center the cutout Horizontally

on the unit. For purposes of

clarity, the above illustration

is not drawn to scale.

D1100 Bottom View

in Custom Cabinet

-1/8"

33.3cm

8-1/8"

23.2cm

2-7/8"

7.3cm

15-1/16"

39.6cm

1-1/8"

2.9cm

17-3/16"

43.7cm

Cutout Opening for Custom Mounting

Cabinet Front Panel

4-7/8"

12.4cm
