INTRODUCTION
Designed for the professional photographer, this is an extremely versatile tripod, ideal
for small, medium format cameras, digital or conventional type.
KEY FEATURES:
• A unique sliding centrecolumn that can be operated in either a vertical or horizontal plane.
• Each leg can be independently set at 4 angles of spread.
• Spirit level.
• A set of two leg warmers
SET UP

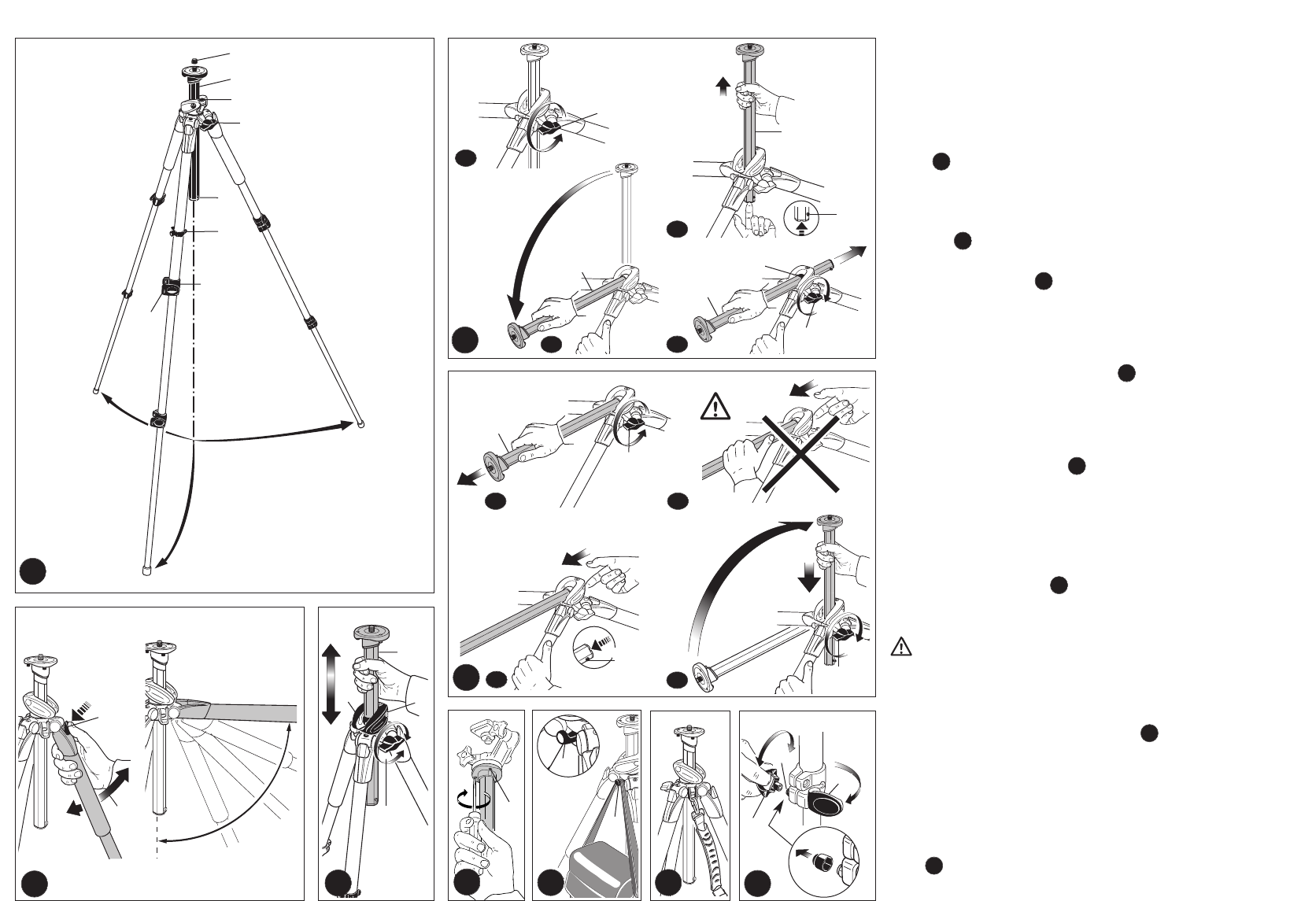

Open the 3 tripod legs.
To adjust the height of the tripod, each leg has telescopic extensions that can be
released by rotating lever “A” on the locking collar “B”. When the required height is
achieved, lock lever “A”.
LEVELLING
The tripod is supplied with a spirit level "H" to enable you to level the tripod.
LEG ANGLE ADJUSTMENT
Each leg can be set at 4 angles of spread. To change the angle on a leg, close the leg
towards the centre column slightly and press down the locking button “C” at the top
of the leg. Whilst holding the button down, select the new leg angle and then release
button “C” to lock in position. The angle of each leg can be adjusted independently of
the other two legs. The last position allows to achieve the floor level.
CENTER COLUMN HEIGHT ADJUSTMENT
To release the centre column “D”, unlock knob “E” and adjust the height of the
column as required.
Tighten knob “E” to lock the column in position.
Note: The best locking is achieved by rotating the centre column “D” until aligning
parts “X”, “Y” to the locking lever “E” as shown in figure 3.
HORIZONTAL CENTER COLUMN
The sliding centre column can also be used in the horizontal plane: this not only
allows the camera to be offset from the legs’ position, it provides the simplest way
possible to shoot from directly overhead:
- unlock knob “E” (4.1)
- push button “Y” and, at the same time, raise the center column “D” completely (4.2)
- turn 90° center column “D” as shown in figure 4.3
- slide the center column “D” into the hole “W” and lock knob “E” (fig. 4.4)
VERTICAL CENTER COLUMN
In order to set up the center column in vertical position, proceed as follow:
1) unlock knob “E” and pull out completely the center colum “D” as shown in figure 5.1
TAKE YOUR HAND OFF CENTRE COLUMN “D” to avoid pinching your
finger (see fig. 5.2)
2) keeping your other hand clear of column “D”, push button “Y” with one hand (5.3)
3) still keeping your other hand clear, with the same hand, rotate the center colum “D”
in a vertical position as shown in figure 5.4
MOUNTING AND REMOVING A CAMERA HEAD
Remove the cap “Z” (fig.1)
Mount the camera head on the plate at the top of the centre column via the 3/8”
mounting screw (screw head clockwise). Then raise the centre column and with a
small screwdriver, tighten the three set screws “M” (supplied unmounted) up against
the base of the head, taking care not to force them. This unique feature works
especially well with Manfrotto heads due to the specially designed base, which
prevents the head unscrewing accidentally. To remove the head, loosen the set
screws “M” and unscrew the head from the column counter-clockwise).
NOTE
For outdoor use, especially in windy conditions, it is possible to stabilise the tripod:
hook a counterweight (not supplied) onto the ring “L”
1
1
2
3
4
5
6
7
M
L
E
D
E
E
W
E
D
D
D
4
4.1
4.2
4.3
4.4
5.1
5.2
5.3
5.4
5
6
7
N
A
P
9
L
8
2
1
2
3
4
3
1
2
1
2
3
4
Z
D
H
E
R
B
A
N
3
C
Y
X
D
E
2
2
1
1
1
3
2
Y
Y
5
