Manual Kale KD-002/50-551 Door Closer

Need a manual for your Kale KD-002/50-551 Door Closer? Below you can view and download the PDF manual for free in English. This product currently has 1 frequently asked question, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

1. Do the assembly works in compliance with

assembly manual.

2. Have the assembly performed by specialist

people.

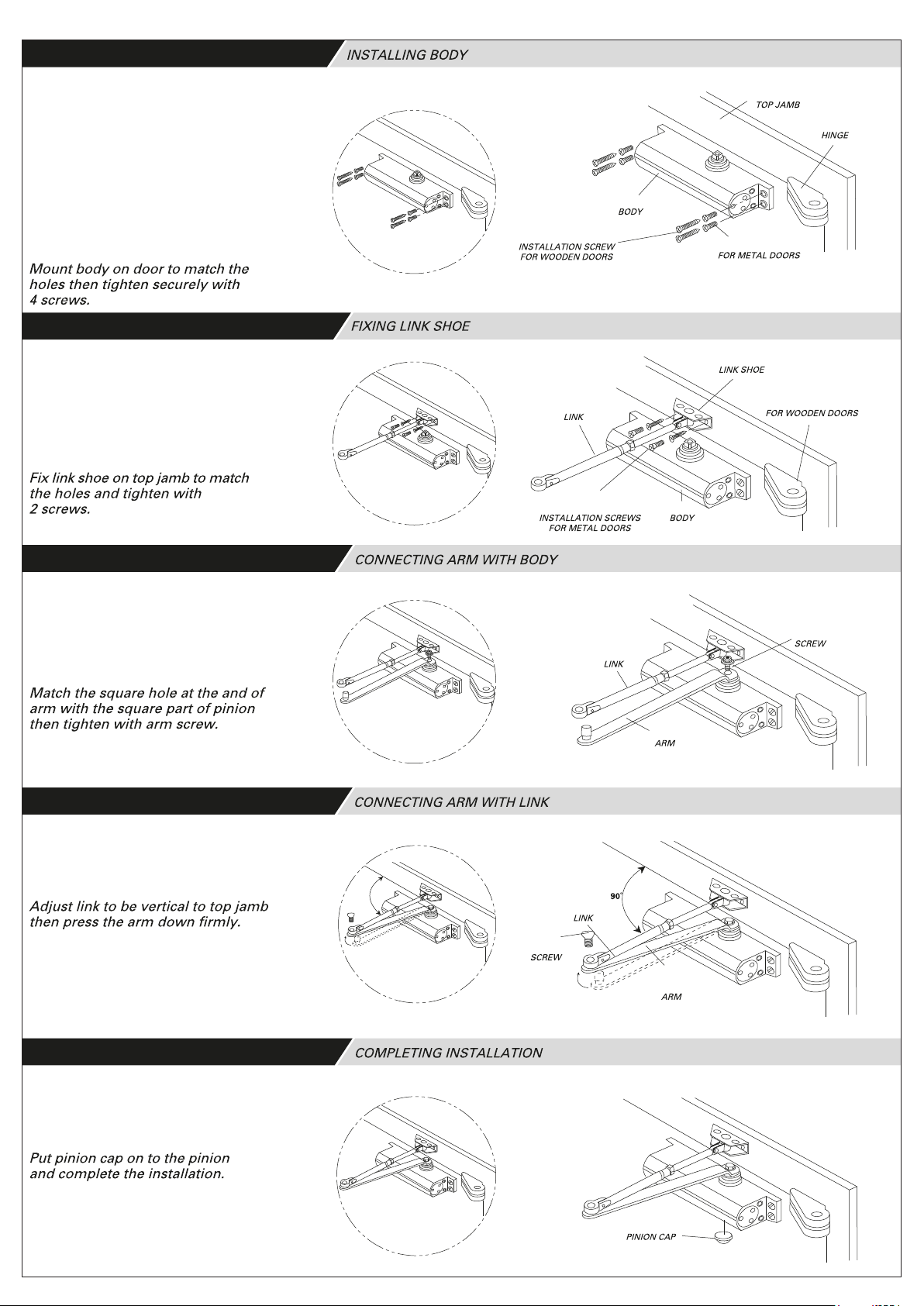

1. Efectuati operatiunile de asamblare in conformitate cu ghidul de asamblare.

2. Asamblarea trebuie efectuata de catre o persoana calicata.

Montati corpul amortizorului pe usa

in dreptul gaurilor si xati strans

cele 4 suruburi.

Montati conexiunea xa pe tocul supe-

rior in dreptul gaurilor si strangeti cele

2 suruburi.

Suprapuneti gaura patrata de la capatul

bratului cu gaura patrata a pinionului si

strangeti surubul bratului.

Reglati bratul secundar vertical deasupra

tocului superior si apoi presati ferm in

jos bratul.

Puneti pinionului capacul si nalizati

instalarea.

INSTALARE CORP

MONTARE CONEXIUNE FIXĂ

CONECTARE BRAȚ PRINCIPAL - CORP

CONECTARE BRAȚ PRIM.-SEC. (1+2)

FINALIZARE INSTALARE

TOC SUPERIOR

BALAMA

CORP

ȘURUBURI INSTALARE

PENTRU UȘI DIN LEMN

UȘI METALICE

CONEXIUNE FIXĂ

PENTRU UȘI DIN LEMN

CORP

ȘURUBURI INSTALARE

PENTRU UȘI METALICE

BRAȚ SECUNDAR (2)

ȘURUB

BRAȚ PRINCIPAL (1)

BRAȚ SECUNDAR (2)

ȘURUB

CAPAC PINION
