Manual iProven BPM-337 Blood Pressure Monitor

Manual

Blood Pressure Monitor

Instruction Manual

iProvèn BPM-337

Manual Ver.: 2.3

Issuing Date: 2017/10/14

©2017. All rights reserved.

Thank you for making iProvèn your top choice. Please read the

instructions carefully in order to accurately and safely utilize this

equipment.

The BPM-337 measures the blood pressure and the heart rate

and saves the results. The BPM-337 o ers real time and accurate

readings that are as convenient as possible thanks to the

Oscillometric Measuring method. Blood pressure measurements

may not be valid or accurate if they are not performed in

accordance with the instructions provided in this manual. Please

keep these instructions handy for future reference. You can also

 nd the digital version of this manual on www.iproven.com

It is our passion to develop high quality products for home use.

Our products are manufactured at the highest technical standards

of professional quality, durability, and consistency. They are also

designed with elegant simplicity in mind, making them easy to

use at home.

To help you get the most from our products, we provide clear

instructions with each device. The manual also includes helpful

information that contributes to your overall health awareness.

In order to make sure that our products are tailored to your needs,

we welcome your feedback. If you have any issues, questions or

recommendations, please share your thoughts with us at

www.iproven.com

iProvèn - Professional Care Brought Home

iProvèn is a Masena Invest Brand

Intended use of the BPM-337 blood pressure

monitor

The BPM-337 is a digital monitor that is used for measuring blood

pressure and heart rate by cuffi ng the device around wrists of

di erent sizes from 5 ˝-8½˝ (13.5cm to 21.5 cm). The BPM-337 is

intended for home use and for adults only.

How this device works

The product uses the Oscillometric Measuring method to detect

blood pressure. When the measurement is started, it calibrates to

“zero pressure” which is the natural air pressure. As soon as it starts

in ating the wrist cu , the device detects the pressure oscillations

according to the beat-to-beat pulsatile and so it determines the

systolic, diastolic pressure and the heart rate.

Irregular Heart Beat detection

The device is equipped with irregular heart beat detection, IHB.

The algorithm of the device compares the longest and shortest

intervals of registered pulse waves (the time interval) and

calculates the standard deviation. If the di erences in the time

intervals are more than 25% you have an irregular heartbeat

and the IHB sign will appear in the display. If the device detects

irregular heartbeat during consecutive measurements and you are

following the correct procedure, please consult your doctor.

Setting Up the Device

Firstly, make sure you set the time and data correctly so the device

can register the results with the correct time.

1. With the monitor OFF, press and hold the SET button for 3

seconds. It will enter the SETTINGS Mode.

2. Press or hold the MEM button to adjust the Hour digits that are

blinking on the display. Press SET to con rm.

3. Repeat step 2 for setting the Minutes; Month; Day and Year.

4. Press SET one more time to select the desired measurement unit.

Probably “mmhg”.

5. Once the Year is set, the display will show “mmHg”. This is the

standard measurement unit. Press SET to save. Or press MEM to

change to “kPa” and then press SET to save.

6. Once the measurement unit is set, the LCD will show “DONE”

and the device will shut o .

Preparing the measurement

Before tying the cu to your wrist, make sure you remove all

accessories from the wrist (bracelets, watch, etc.). Use the device

on the wrist that doesn’t have poor circulation.

1. Roll up the sleeve to reveal the skin of the wrist.

2. Make sure to tie the cu to 0,4”-0,6” (1-1.5cm) from

your wrist joints.

3. Tie the cu to your wrist and keep the palm facing up.

4. Tie the cu to your wrist tightly but not painfully.

5. Place your elbow on a table and make sure that the wrist is

at the same level with your heart.

6. Rest 3 minutes; keep your palm upwards, back straight and

breathe deeply for 5 or 6 times before starting the measurement.

Taking a measurement

1. After resting press the Start Button and the measuring

procedure will start.

2. First the measured air pressure will calibrate to zero and then

the device will in ate and start reading the blood pressure and

heart rate.

3. When the measurement is completed the results will appear in

the screen. The measurement is also saved in the memory.

Tips and Timing

• Make sure you do not move or speak and that you are in a

silent room during a measurement.

• Do not cross your legs during the measurement.

• Do not use the device in a toilet or while doing any sort of

activity including talking or moving.

• Do not use the device in a cold environment.

• To get insight in the trend of your blood pressure, it is

best to measure your blood pressure at about the same time(s)

every day.

• For accurate results, avoid using the device within 1 Hour

after eating.

• You shouldn’t measure immediately after drinking tea or co ee

and after smoking.

Extra notes on the device

• The unit should not be used for prolonged monitoring during

medical emergencies or operations.

• The cu being in ated for a prolonged time will lead to numb

ness of wrist and  ngers, causing anesthesia, pain and

ecchymosis.

• Use the device according to the instructions of this manual to

guarantee an effi cient performance and durability of the device.

• The cu complies with the requirements of ISO 10993-5:2009

and ISO 10993-10:2010.

• The cu does not cause any potential allergic reaction or

contact injury.

• There is no need for calibration during the two years of ‘

guaranteed service.

Components of the BPM-337

The Monitor Components

The LCD Display The Cuff Components

How to Install and Replace

Batteries:

1. Open the battery cover

2. Insert the two AAA batteries conform the right polarity

3. Close the battery cover

CAUTIONS

• Adult-use ONLY;

• Non-invasive measuring and monitoring of arterial blood

pressure;

• Use only on the WRIST!

• Consult your doctor about the use of this device;

• When the pressure on the cu exceeds 40 kPa (300 mmHg),

the unit will automatically de ate;

• If the unit doesn’t de ate when exceeding the 40 kPa (300 mmHg),

detach the cu from the wrist and press the START/STOP button

to stop in ation;

• Do not use the monitor under conditions of strong

electromagnetic  elds;

• Electromagnetic  elds will interfere with the signal and

electrically fast transient/burst signal;

• The maximum temperature that the applied part can achieve is

42.5 ºC while the environmental temperature is 40 ºC;

• The device is not AP/APG equipment;

• It is not suitable for use in the presence of a  ammable anesthetic

mixture with air (or oxygen, nitrous oxide);

• Keep the Unit OUT OF REACH of infants, children or pets since

inhalation or swallowing of small parts is dangerous or even fatal;

• Use only accessories or detachable parts speci ed and authorized

by the Manufacturer;

• This Device should NOT be used on females suspected of

pregnancy or pregnant! It may provide inaccurate readings and

can have e ects on the fetus.

• If you are su ering from arrhythmias such as atrial or ventricular

premature heartbeats or atrial  brillation the measurement results

can be incoherent. In this case please consult your physician about

the results.

CUFF

(Type BF applied part)

BATTERY

COMPARTMENT

Component List:

1. PCBA;

2. Air Pipe;

3. Pump;

4. Valve;

5. Cuff.

• Avoid measuring after 30 minutes of taking a shower or bath.

• For an accurate and clear result, please measure the same wrist

every time. Blood circulation may di er from wrist to wrist so you

can get a di erent result when you change wrists.

Using the memory function

• Make sure that the date and time is set correctly.

• Every measurement is automatically saved in the memory,

with a maximum capacity of 60 measurements;

• To view the recorded data press the MEM button while the

monitor is inactive. If the monitor is not yet inactive,  rst

deactivate it by pressing the start/stop button.

• Use the buttons MEM for Up and Set for Down to read through

the records.

Deleting the records

In case you want to delete your recorded measurements, please

follow these steps:

1. Make sure the monitor is inactive; press START/STOP if needed.

2. Press MEM to go to Memory.

3. Press and hold the MEM button for 3 seconds.

4. “DEL ALL” will start blinking. Press SET to con rm.

5. “DEL DONE” will show, meaning the stored data is deleted. The

device will shut o .

Keeping the device safe

Please make sure to place the device away from the sun. Store it in

a dry place. When you want to clean the device, you should use a

dry cloth. Do not place it in water or clean it with wet cloths. Also, be

careful not to shake or throw the device. For a better performance,

keep it in a room with stable temperature and away from dust. The

cu should not be cleaned as it may a ect the accuracy of the reading.

High blood pressure

Low blood pressure

Measurement unit of blood pressure

(1mmHg=0.133kPa)

Hour:Minute (Month/Day/Year)

SYMBOL DESCRIPTION EXPLANATION

Pulse in beats per minute

Blood pressure monitor is detecting an

irregular heartbeat during measurement.

Low battery and please replace the batteries.

Indicating the memory mode and the

number of the measurement

Indicating the AHA category of the measurement

See Error Messages and FAQ

High blood pressure level

Low blood pressure level

Pulse in beats per minute

Low battery, please replace the batteries

Indicating the AHA category of the

measurement

See Error Messages and FAQ section

Blood pressure monitor is detecting an

irregular heartbeat during measurement

Indicating the memory mode and the

number of the measurement

Hour: Minute (Month/Day/Year)

Measurement unit of blood pressure

(1mmHg=0.133kPa)

Measurement units

Memory

Error

IHB Detector

AHA indicator

Low battery

Pulse

Diastolic

Blood Pressure

Systolic

Blood Pressure

Time

Rating

More about this manual

We understand that it’s nice to have a paper manual for your iProven BPM-337 Blood Pressure Monitor. You can always download the manual from our website and print it yourself. If you would like to have an original manual, we recommend you contact iProven. They might be able to provide an original manual. Are you looking for the manual of your iProven BPM-337 Blood Pressure Monitor in a different language? Choose your preferred language on our homepage and search for the model number to see if we have it available.

Specifications

All manuals for iProven Blood Pressure Monitors
More manuals of Blood Pressure Monitors

Frequently Asked Questions about iProven BPM-337 Blood Pressure Monitor

Our support team searches for useful product information and answers to frequently asked questions. If you find an inaccuracy in our frequently asked questions, please let us know by using our contact form.

Related products

Manual

Beurer BC 87 Blood Pressure Monitor

Manual

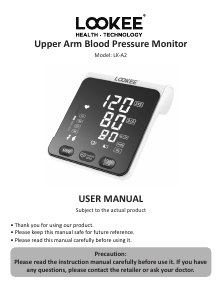

Lookee LK-A2 Blood Pressure Monitor

Manual

Little Doctor LD-596 Blood Pressure Monitor

Manual

SilverCrest IAN 437991 Blood Pressure Monitor

Manual

Becken BBPM 4542A Blood Pressure Monitor

Manual

Eta SMART 4297 90000 Blood Pressure Monitor

Manual

Little Doctor LD-522 Blood Pressure Monitor

Manual

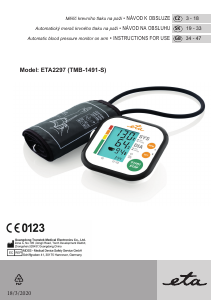

Eta Compact 2297 90000 Blood Pressure Monitor
