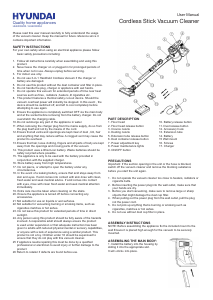

Manual Hyundai HHE203204 Vacuum Cleaner

Need a manual for your Hyundai HHE203204 Vacuum Cleaner? Below you can view and download the PDF manual for free in English. This product currently has 9 frequently asked questions, 1 comment and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

Please read this user manual carefully to fully understand the usage

of the vacuum cleaner. Keep the manual for future reference since it

contains important information.

SAFETY INSTRUCTIONS

For your own safety when using an electrical appliance please follow

basic safety precautions including:

1. Follow all instructions carefully when assembling and using this

product.

2. Never leave the charger on or plugged in for prolonged periods of

time when not in use. Always unplug before servicing.

3. For indoor use only.

4. Do not use 3-in-1 Handheld Cordless Vacuum if the charger or

battery are damaged.

5. Donotusethisproductwithoutthedustcontainerandlterinplace.

6. Do not handle the plug, charger or appliance with wet hands.

7. Do not operate this vacuum for extended periods of time near heat

sourcessuchasres,radiators,heaters,litcigarettesetc.

8. This product features a thermal safety cut-out device. Should the

vacuum overheat power will instantly be stopped. In this event , the

device should be switched off, and left to cool completely before

attempting to use again.

9. Ensure the appliance is completely switched OFF via the main body

and at the socket before removing from the battery charger. Do not

overstretch the charging cable.

10. Do not submerge any part of the appliance in water.

11. When removing the charger plug from the mains supply, do so from

the plug itself and not by the means of the cord.

12. Ensure that all vents and openings are kept clear of dust , lint, hair

andanythingthatmayreduceairow.Acloggedventmaycausethe

product to overheat.

13.Ensurethathair,looseclothing,ngersandallpartsofbodyarekept

away from the openings and moving parts of the vacuum.

14. This product uses a lithium-ion battery. Waste batteries should be

safely recycled where possible.

15. The appliance is only to be used with the battery provided in

conjunction with the supplied charger.

16. Store battery away from high temperatures.

17. Do not pierce, or attempt to open the battery under any

circumstances.

18. In the event of a leaking battery, ensure that acid stays away from

skin and eyes. If acid comes into contact with skin.rinse with clean,

fresh water and seek medical advice. If acid comes into contact

with eyes, rinse with clean fresh water and seek medical attention

immediately.

19. Extra care must be taken when cleaning on the stairs.

20. Ensure the appliance is turned off before connecting any

accessories.

21 Not suitable for use on liquids or wet surfaces.

22 Not suitable for vacuuming burning or smoking items, such as

cigarettes matches or hot ashes.

23. Do not leave this product for extended periods of time in direct

sunlight.

24. Any person using this product should be fully aware of the hazards

involved. A responsible adult should always ensure the product

is used under supervision or that adequate instruction has been

given to adults with reduced physical mental or sensory capabilities,

or anyone with a lack of experience using a similar product. This

product is not a toy. Children under 16 should be supervised to

ensure that they do not play with this vacuum cleaner.

25Ifapplianceneedsrepairingthismustbedonebyaqualied

professional or electrician to avoid injury or further damage to the

product

26 Return to retailer if defects are found before use.

Quality home appliances

HHE203203 / HHE203204

User Manual

Cordless Stick Vacuum Cleaner

PART DESCRIPTION

1. Floor head 10. Battery release button

2. Floor head release button 11. Dust release button

3. Crevice nozzle 12. Accessory hook

4. Dusting nozzle 13. Extension tube

5. Extension tube release button 14. Battery

6. Dust container release button 15 Wall mount

7. Power adjustment key 16. Screws

8. Power maintenance lights 17. Charger

9. ON/OFF button

PRECAUTIONS

Important: If the suction opening in the unit or the hose is blocked,

switch off the vacuum cleaner and remove the blocking substance

before you start the unit again.

1. Do not operate the vacuum cleaner too close to heaters, radiators or

cigarette butts.

2. Before inserting the power plug into the wall outlet, make sure that

your hands are dry.

3. Before you start vacuuming, make sure to remove large or sharp

objectsthatmightdamagethedustcuplter.

4. When pulling out the power plug from the wall outlet, pull the plug

not the power cord.

5. Do not pick up anything that is burning or smoking such as

cigarettes, matches or hot ashes.

6.Donotusewithoutdustcuplterinplace.

ASSEMBLY INSTRUCTIONS

NOTE:Beforeassemblingtheappliancextheincludedmounttothe

wall Ensure it is placed high enough for the vacuum to be securely

mounted.

ASSEMBLING THE MAIN BODY:

1. Install the battery into the housing by

sliding it into the appropriate slot.

It will «click» into place.

Download manual in English (PDF, 0.94 MB)

(Consider the environment and only print this manual if it is really necessary)

Rating

Let us know what you think about the Hyundai HHE203204 Vacuum Cleaner by leaving a product rating. Want to share your experiences with this product or ask a question? Please leave a comment at the bottom of the page.

Are you satisfied with the Hyundai HHE203204 Vacuum Cleaner?
Yes No

Be the first to rate this product

0 votes

Join the conversation about this product

Here you can share what you think about the Hyundai HHE203204 Vacuum Cleaner. If you have a question, first carefully read the manual. Requesting a manual can be done by using our contact form.

td@boat&co.nl 25-09-2023
We have a fairly new HHE203204 stick vacuum cleaner, it turns on for a moment in the normal position, and then the first 2 blue LED lights start flashing. If we turn the power adjustment key to maximum, the blue lights will start flashing after 5 seconds and the vacuum cleaner will stop completely. What do those 2 flashing blue lights mean?

reply | This was helpful (4) (Translated by Google)

More about this manual

We understand that it’s nice to have a paper manual for your Hyundai HHE203204 Vacuum Cleaner. You can always download the manual from our website and print it yourself. If you would like to have an original manual, we recommend you contact Hyundai. They might be able to provide an original manual. Are you looking for the manual of your Hyundai HHE203204 Vacuum Cleaner in a different language? Choose your preferred language on our homepage and search for the model number to see if we have it available.

Specifications

Brand	Hyundai
Model	HHE203204
Category	Vacuum Cleaners
File type	PDF
File size	0.94 MB

All manuals for Hyundai Vacuum Cleaners
More manuals of Vacuum Cleaners

Frequently Asked Questions about Hyundai HHE203204 Vacuum Cleaner

Our support team searches for useful product information and answers to frequently asked questions. If you find an inaccuracy in our frequently asked questions, please let us know by using our contact form.

The hose of my vacuum cleaner is clogged, what can I do? Verified

Detach the hose and look through it to determine if it is actually clogged. If this is the case, you can take a long object such as a broomstick and carefully push it through the hose. This will generally remove any objects that are clogging the hose. If this didn't help you should contact the manufacturer.

This was helpful (1658) Read more

What sizes dust bag are there? Verified

There are two sizes that need to be considered. First is the size of the plate with the bag entrance. This determines whether the dust bag will fit a certain vacuum cleaner. Then theres the size of the bag. This is mostly indicated in liters and determines how much dust the bag can hold.

This was helpful (1202) Read more

The power cord of my vacuum cleaner does not rewind back into the device, what can I do? Verified

It is possible that there is a twist or fold in the cord. Completely roll out the cord a few times and rewind it back into the device under guidance of your hands. If this does not solve the problem, it is possible the mechanism to rewind the cord is broken. In that case, contact the manufacturer or a repair service.

This was helpful (856) Read more

How do I remove dust and hair from the vacuum cleaner brush head? Verified

Removing dust and hair from the vacuum cleaner brush head has be done manually. If this does not go as desired, it's possible to use a fine comb to remove the remaining dirt.

This was helpful (747) Read more

My vacuum cleaner makes a whistling noise, what can I do? Verified

This problem is often caused by a full dustbag or filter or when there is an opening that allows air into the hose. Check the dust bag and filter and replace them if necessary. Check the hose for any holes or bad connections. If this does not solve the problem, contact the manufacturer.

This was helpful (725) Read more

What setting on the vacuum cleaner brush head should I use? Verified

Nearly all vacuum cleaners have a head with an adjustable brush. Use the brush for hard surfaces to prevent scratches and damage. Turn off the brush for carpeting and rugs.

This was helpful (571) Read more

Can I user a paper dust bag more than once? Verified

This is not advisable. The pores of the bag wat will get saturated, causing a loss in suction and possibly damaging the motor.

This was helpful (376) Read more

What is HEPA? Verified

HEPA stands for High-Efficiency Particulate Air. Many vacuum cleaners have a HEPA filter. A HEPA filter will stop at least 85% and at most 99,999995% of all particles of 0,3 micrometer (µm) and up.

This was helpful (366) Read more

Can I use a regular vacuum cleaner to suck up ash? Verified

No, this is absolutely not possible. Ash that seems cooled may still be warm or even hot inside. A regular vacuum cleaner is not designed for this and it can cause a fire. Also, the filters of regular vacuum cleaners are not always suited for retaining extremely small particles such as ash. It can then reach the motor of the vacuum cleaner and cause damage.

This was helpful (366) Read more
