Installation/Connection

Installation

General notes

• Choose the mounting location where the

unit will not interfere with the normal driving

function of the driver.

• Before finally installing the unit, connect

the wiring and make sure that the unit works

properly.

• Consult with your nearest dealer if

installation requires the drilling of holes or other

modifications of the vehicle.

• Install the unit where it does not get in the

driver’s way and cannot injure the passenger if

there is a sudden stop, like an emergency stop.

• If installation angle exceeds 30° from

horizontal, the unit may not perform properly.

• Avoid installing the unit where it would

be subject to high temperature, such as from

direct sunlight, or from hot air, from the heater,

or where it would be subject to dust, dirt or

excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either

from ‘Front’ (conventional DIN Front-mount) or

‘Rear’ (DIN Rear-mount installation, utilizing

threaded screw Holes at the sides of the unit

chassis). For details, refer to the following

illustrated installation methods.

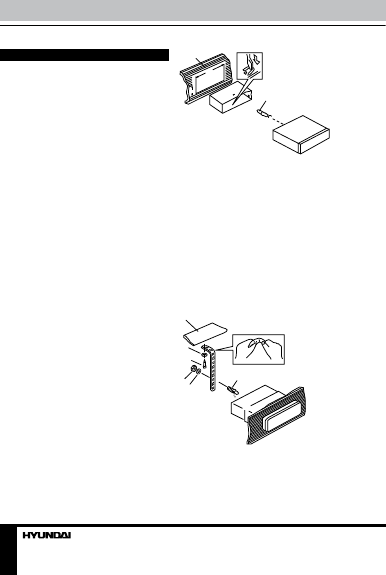

1. DIN front-mount (Method A)

1. Car dashboard

2. Sleeve

3. Screw

4. Nut (5 mm)

5. Spring washer

6. Screw (5 х 25 mm)

7. Metal strap

8. Flat washer

182

1. Install the sleeve into the dashboard;

ensure it is installed with the correct side and

there are no obstacles (wires, dashboard

elements, etc) for the unit installation.

2. After installing the sleeve into the

dashboard, bend tabs fitting to the size of the

dashboard to fix the sleeve in place.

3. Use the metal strap to fix the rear side of

the unit. Determine a place for fixing and install

the strap as shown in the picture. You can bend

the strap to the needed angle with your hands.

4. Make the necessary wire connections.

Ensure the connections are correct.

5. Install the unit into the sleeve until the side

locks are fixed.

Dismantling the unit

a – Trim frame

b – Frame uninstall direction

c – Release key insertion
