Manual Halstead BF40 Buckingham III Gas Boiler

Manual

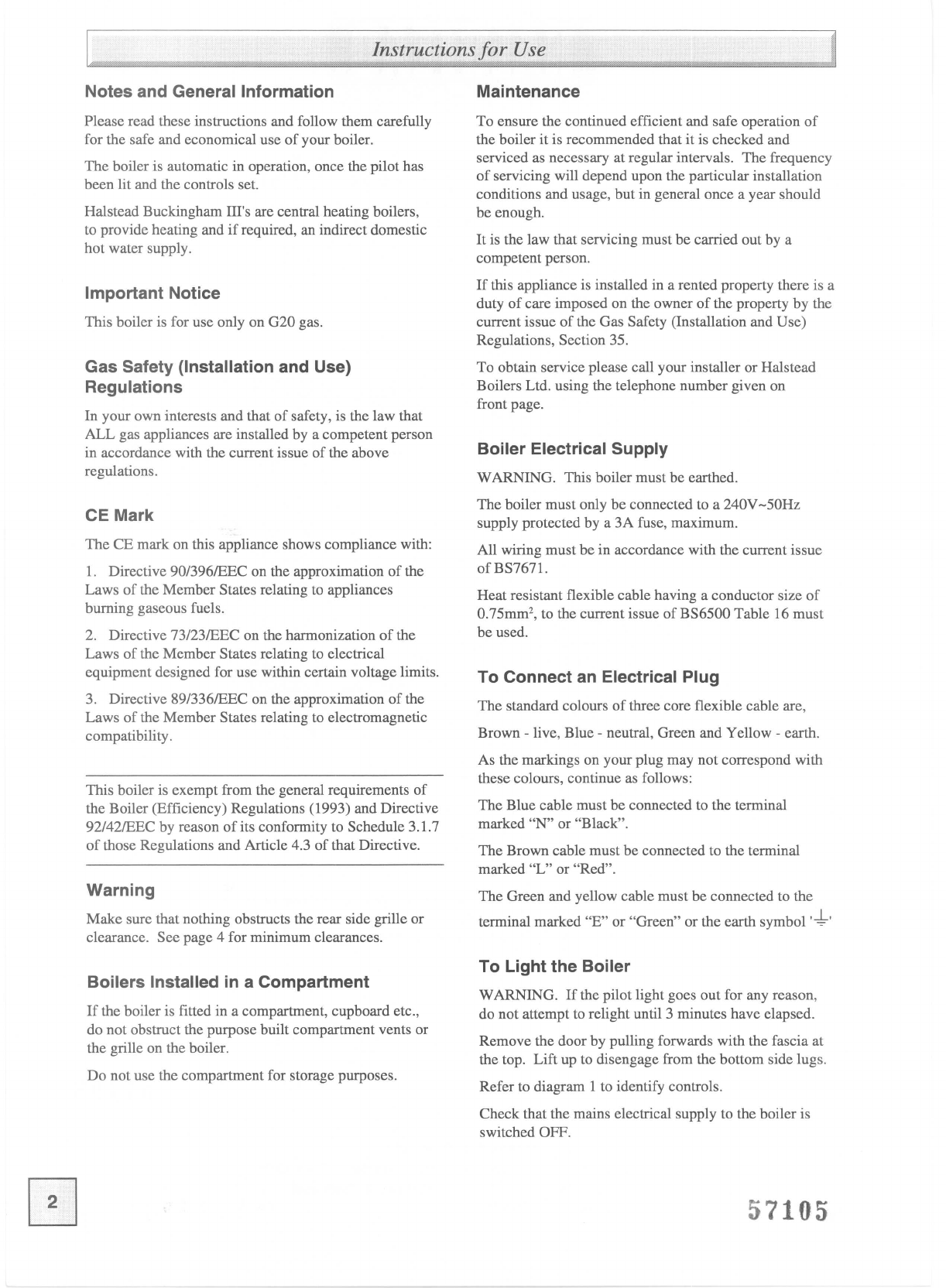

Instructions for Use

Please read these instructions and follow them carefully

for the safe and economical use of your boiler.

The boiler is automatic in operation, once the pilot has

been lit and the controls set.

Halstead Buckingham III's are central heating boilers,

to provide heating and if required, an indirect domestic

hot water supply.

Gas Safety (Installation and Use)

Regulations

In your own interests and that of safety, is the law that

ALL gas appliances are installed by a competent person

in accordance with the current issue of the above

regulations.

The CE mark on this appliance shows compliance with:

1. Directive 90/396IEEC on the approximation of the

Laws of the Member States relating to appliances

burning gaseous fuels.

2. Directive 73123IEEC on the harmonization of the

Laws of the Member States relating to electrical

equipment designed for use within certain voltage limits.

3. Directive 89/3361EEC on the approximation of the

Laws of the Member States relating to electromagnetic

compatibility.

This boiler is exempt from the general requirements of

the Boiler (Efficiency) Regulations (1993) and Directive

92142IEEC by reason of its conformity to Schedule 3.1.7

of those Regulations and Article 4.3 of that Directive.

Make sure that nothing obstructs the rear side grille or

clearance. See page 4 for minimum clearances.

Boilers Installed in a Compartment

If the boiler is fitted in a compartment, cupboard etc.,

do not obstruct the purpose built compartment vents or

the grille on the boiler.

Do not use the compartment for storage purposes.

To ensure the continued efficient and safe operation of

the boiler it is recommended that it is checked and

serviced as necessary at regular intervals. The frequency

of servicing will depend upon the particular installation

conditions and usage, but in general once a year should

be enough.

It is the law that servicing must be carried out by a

competent person.

If this appliance is installed in a rented property there is a

duty of care imposed on the owner of the property by the

current issue of the Gas Safety (Installation and Use)

Regulations, Section 35.

To obtain service please call your installer or Halstead

Boilers Ltd. using the telephone number given on

front page.

Boiler Electrical Supply

WARNING. This boiler must be earthed.

The boiler must only be connected to a 240V -50Hz

supply protected by a 3A fuse, maximum.

All wiring must be in accordance with the current issue

of BS7671.

Heat resistant flexible cable having a conductor size of

O.75mm

2

, to the current issue of BS6500 Table 16 must

be used.

The standard colours of three core flexible cable are,

Brown - live, Blue - neutral, Green and Yellow - earth.

As the markings on your plug may not correspond with

these colours, continue as follows:

The Blue cable must be connected to the terminal

marked "N" or "Black".

The Brown cable must be connected to the terminal

marked "L" or "Red".

The Green and yellow cable must be connected to the

terminal marked "E" or "Green" or the earth symbol

'*'

To Light the Boiler

WARNING. If the pilot light goes out for any reason,

do not attempt to relight until 3 minutes have elapsed.

Remove the door by pulling forwards with the fascia at

the top. Lift up to disengage from the bottom side lugs.

Refer to diagram 1 to identify controls.

Check that the mains electrical supply to the boiler is

switched OFF.

57105
