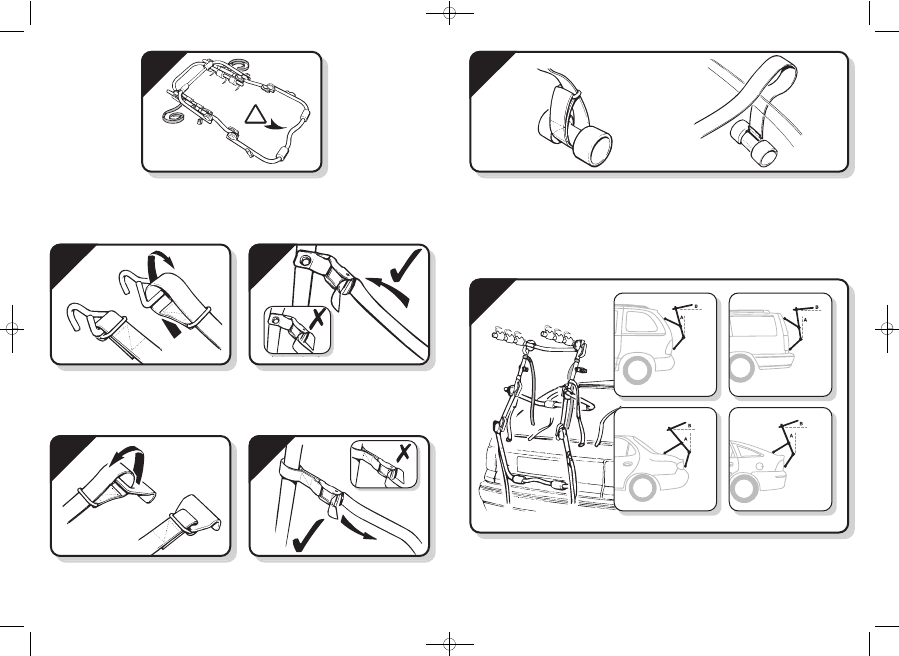

Release the bottom 2 adjuster levers and position the

carrier as illustrated.

There are indicator marks on the ratchet adjusters. Using

these as a guide, lift the bottom support tube counting 5

teeth spacing, then lock in position.

The quick release action should be firm for both opening

and closing. The tension may be set by releasing the

handle and turning clockwise.

Note: It is important that indicator marks on the ratchet

adjusters are in the same positions on both sides.

Lower strap assembly

Select 2 x 95cm straps and assemble the chassis hooks

as illustrated.

Warning: Ensure that the straps are fully tightened on

the chassis hooks.

Feed the strap through the lower set of cambuckles.

WARNING: ENSURE THAT THE STRAPS ARE

INSERTED THROUGH THE CAMBUCKLES IN THE

CORRECT DIRECTION.

4 5

Side strap assembly

Select 2 x 95cm straps and assemble panel hooks

as illustrated.

Note: Ensure that the straps are fully tightened on the

panel hooks.

Feed the strap through the middle set of cambuckles.

WARNING: ENSURE THAT THE STRAPS ARE

INSERTED THROUGH THE CAMBUCKLES IN THE

CORRECT DIRECTION.

Top edge fittings

Attachment of the upper

straps to the vehicle

Offer the carrier to the vehicle with the lower tube

approximately 50mm above the upper face of the

bumper. Adjust the upper arm to sit against the tailgate of

your vehicle. The carrier upper support arm should not

rest in the middle of any body panel or glass panel; it

should be positioned in the upper or lower third of the

panel. The carrier main frame should be leaning towards

your vehicle (A) maintaining reasonable clearance,

typically approximately 8cm (3 inches) from the car

bodywork. This will reduce as the straps are tightened.

Ensure that the cycle support arms are adjusted to be

above horizontal (B). Once the carrier is set in the correct

position fully tighten all quick release adjusters.

Top e dge fitti ng s Select 2 x 160cm straps and assemble

dumbbells as illustrated. Open the tailgate, and from

inside your vehicle thread the straps over the top edge

leaving the dumbbells hanging free. Carefully close the

tailgate then gently pull the straps until the dumbbells sit

firmly against the interior trim.

NOTE: Panel hooks, as shown in step 4, should not be

fitted to a glass edge. In the absence of any glass edges

to the vehicle tailgate, always use the dumbbells to the

top and panel hooks to the side. If your vehicle has glass

edges to the side and a metal top edge the dumbbells

must be fitted to the glass edge position. If your vehicle

has both glass edges to the top and to the sides then

dumbbells should be fitted in all positions replacing the

panel hooks. Dumbbells (Also known as Glass Edge

Fittings) are available separately as an accessory.
