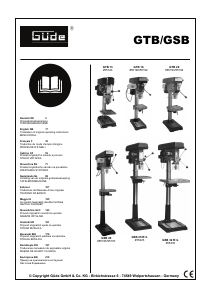

Manual Güde GSB 32 R+L Drill Press

Need a manual for your Güde GSB 32 R+L Drill Press? Below you can view and download the PDF manual for free in English. This product currently has 1 frequently asked question, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

Technische Daten

Modell GTB 13 GTB 16/5 GTB 16/5 R+L GTB 20/12 GTB 20/12 R+L

Anschluss: 230 Volt/50 Hz 230 Volt 400 Volt 230 Volt 230 Volt

Motorleistung: 180 Watt 600 Watt 600 Watt 800 Watt 800 Watt

Bohrfutter: 13 mm 16 mm 16 mm 16 mm 16 mm

Spindelhub: 50 mm 60 mm 60 mm 80 mm 80 mm

Konusaufnahme: MK 1/B16 MK 2 MK 2 MK 2 MK 2

Ausladung: 105 mm 126 mm 126 mm 178 mm 178 mm

Tischgröße: 164 x 164 mm 200 x 195 mm 200 x 195 mm 300 x 300 mm 300 x 300 mm

Fußplattengröße: 295 x 185 mm 348 x 210 mm 348 x 210 mm 456 x 270 mm 456 x 270 mm

Gesamthöhe: 580 mm 840 mm 840 mm 1065 mm 1065 mm

Spindeldrehzahl: 500-2500 U/min. 5 Stufen 12 Stufen 12 Stufen 12 Stufen

460-2480 U/min. 230-2470 U/min. 180-2740 U/min. 180-2740 U/min.

Artikel-Nr.: 55120 55190 55192 55193 55194

Modell GSB 20/12 GSB 20/12 R+L GSB 25 R+L GSB 32 R+L

Anschluss: 230 Volt 400 Volt 400 Volt 400 Volt

Motorleistung: 600 Watt 800 Watt 1100 Watt 1500 Watt

Bohrfutter: 16 mm 16 mm 3-16 mm 3-16 mm

Konusaufnahme: MK 2 MK 2 MK 3/B16 MK 3

Spindelhub: 80 mm 80 mm 120 mm 120 mm

Ausladung: 178 mm 170 mm 210 mm 255 mm

Tischgröße: 300 x 300 mm 255 x 255 mm 335 x 335 mm 423 x 475 mm

Fußplattengröße: 456 x 270 mm 430 x 255 mm 520 x 305 mm 450 x 580 mm

Gesamthöhe: 1610 mm 1610 mm 1670 mm 1720 mm

Spindeldrehzahl: 12 Stufen 12 Stufen 16 Stufen 12 Stufen

180-2740 U/min. 180-2740 U/min. 160-3000 U/min. 110-2.880 U/min.

Artikel-Nr.: 55195 55197 55423 55435

Sicherheitsvorrichtung "Microschalter"

Die Bohrmaschine ist im Riemengehäuse mit einem Sicherheitsschalter ausgestattet. Wenn der

Gehäusedeckel geöffnet oder nicht richtig geschlossen ist, startet die Maschine nicht.

Sollten Sie Probleme bei starten der Maschine haben, prüfen Sie bitte immer den Microschalter auf

Funktion. Lassen Sie die Maschine jedoch nicht eingeschaltet und betätigen den Microschalter von Hand.

Dies kann zu schweren Verletzungen führen!
