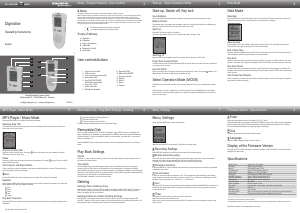

Manual Grundig Diginotice Audio Recorder

Manual

6 87

43

5

11

13

15

14

12

2

08/2010

Grundig Business Systems GmbH

Weiherstraße 10, D-95448 Bayreuth, Germany

[email protected] www.grundig-gbs.com

2

4

5

6

1

3

8

7

9

10

d Notes

This digital recording device is destined for recording and playback of speech and music.

Make sure that the device is protected from moisture (rain, water splash, spray water). Do not place the Diginotice directly

nexttoaheaterorplaceitawayfromdirectheatorbrightsunlight.NeveropentheDiginoticedevice.Thewarrantyis

rendered null and void if the device has been opened. For cleaning, use a dry cloth. Do not use chemical cleaning agents.

The batteries may not be disposed of with domestic waste. Consumers are obliged by law to return batteries or rechargeable

batteries at the end of their service lives to the public collecting points at public waste disposal authorities or point of sale

setupforthispurpose.Donotthrowthebatteriesintore!

 TheCEmarkconrmsthatthedevicecorresponds

to the relevant guidelines of the European Union.

Scope of delivery

● Diginotice      

● Earphone

● Clip-onmicrophone

● USBcable

● Batteries(2xAAA)

● Wriststrap

Start-up, Switch off, Key lock

Insert batteries

Insert 2 AAA (LR03) alkaline batteries into the battery case and make sure that the polarity is correct.

Battery Indicator

The batteries have to be changed when the battery symbol in the display blinks, and when 3 audible warning

signals can be heard. Device turns into the power save function mode.

Switch on

PresstheSTOPbuttontoswitchonthedevice.

First of all, please set the clock time - for more details see „Menu, Settings - Time.“

Switching off

KeeptheSTOP-buttonpressedformorethan2seconds.DeviceturnsintotheOFFmode.

Power Save Function Mode

ThedeviceturnsintotheOFFmodeautomaticallyafteraninactivestateofmorethan2minutes(noplay-back

or recording of notes or music).

KeylockHOLD

PushuptheHOLDbutton.Allkeysarelockedaslongasthekey-lockisactive.Thesymbol appears in the

displaywindow.PushdowntheHOLDbuttontoreleasethekeys.

SelectOperationMode(MODE)

The Diginotice is provided with 3 modes: note, music play-back and for using it as a removable disc (memory

stick).

Afterswitchingonthedevice,thedeviceturnsintothenotemode.PresstheMODEbuttonfor2secondsto

accessthemusicmode.ThenMUSICappearsinthedisplay.PressagaintheMODE-buttonfor2secondsto

return to the note mode.

Note Mode

Recording

Press the REC button to start the recording. Then the note number and „Record“ appears in the display. The

length (in seconds) of the note is shown by means of a progress bar in the display.

Record pause

Press the REC button or the Jog-Dial to interrupt the recording („pause“). The note length indicator blinks.

Press the REC button again or the Jog-Dial to continue the recording.

End of Recording

Whenthenotesarecompleted,presstheSTOPbuttonorpushdowntheJog-Dial.Thentherecordingofthe

noteiscompleted.„DataSave“appearsbrieyonthedisplaywindow.

Play-back

Select the note which shall be replayed by turning the Jog-Dial. Then press the Jog-Dial. After this, the note is

replayed.Thefunction„Play“appearsinthedisplay.PresstheSTOPbuttontostoptheplay-backofthenote.

Play-back Pause

The play-back can be interrupted by pressing the Jog-Dial. The function „Pause“ appears in the display. The

play-backofthenotecanbecontinuedbypressingtheJog-Dialagain.PresstheSTOPbuttontoendtheplay-

back of the note.

Fast Forward and Rewind

Push the Jog-Dial up or down in the pause mode to wind fast forward or to rewind. The longer the Jog-Dial is

kept pressed, the faster the winding.

MP3-Player / Music Mode

PresstheMODEbuttonfor2secondstoaccessthemusicmode.

Selecting Song Title

The number of songs, the active song number is shown in the display window as well as the title. Select the

chosen title by turning the Jog-Dial.

Playback of Song Title

Press the Jog-Dial to start the song. The symbol pops up; the runtime of the title is displayed. Press the

STOPbuttontostoptheactivesong.

Pause

Press the Jog-Dial to stop the song and to access the pause mode. The symbol pops up. Press the Jog-Dial

again to continue play-back.

Fast Forward- and Rewind Mode

Turn the Jog-Dial up or down in the pause- or play mode to wind fast forward or to rewind. The longer the Jog-

Dial is kept pressed, the faster the winding.

d Note

Pressing of the REC button enters automatically the note mode. The recording of a note starts.

Equaliser

ShortlypresstheMODEbuttonduringplay-backinthemusicmodetochangethetonesetting.Theactivetone

setting appears in the upper right edge of the display.

Rock

Mono

Piano

Jazz

Classic

Play-Back Sequence

PresstheMODEbuttonaround2secondsduringtheplay-backofanaudio-letochangetheplay-backmode

of operation.

Play-backoftheactivemusicle

Continuousplay-backoftheactivemusicle

Play-backofallmusicles

Continuousplay-backofallmusicles

The active settings are displayed above in the middle of the display.

Removable Disk

ConnecttheDiginoticewithyourPCviaUSB.Thenotication„ USBON“popsupinthedisplay.The

device is displayed on the workstation as a removable disk now, and the data can be transferred between the

Diginotice and the PC. Copy your songs (MP3, WMA) into the main folder „removable disk“. Your notes are

stored in the folders A to F.

UsetheWINDOWSfunction„Safelyremovehardware“todisconnectthedevicefromthePCtoavoiddata

losses.

Play-Back Settings

Volume

Pressthe+/-buttontoturnthevolumeupordown.Theactivevolumesettingisshownbymeansofabarin

the middle of the display window.

Trace Buffer

TheTraceBufferstoresadesiredtimesegment(pointAuptopointB)withinanaudioleandrepeatsit

constantly. Press the REC button to set the starting point of the time segment, „A“ appears in the display.

Press the REC button again to set the end of the time segment, „A-B“ appears in the display. Then the segment

betweenpointAandBoftheaudioleisrepeatedconstantly.PresstheRECbuttonagaintodeletethemarked

time segment, the „A-B“ indication in the display disappears.

The Trace Buffer is available in the note and music mode.

Deleting

Deleting a Note / Deleting a Song

Press the „DEL“ button. The function „Del File“ apears in the display and below „DEL“ and „EXIT.“ Select the

„DEL“functionbypushinguptheJog-DialandconrmitbypressingtheDEL-button.„Deleting“appears

brieyinthedisplay.Nowthenoteiserased.

Deleting all Notes of a Folder / Deleting all Songs

Press the „DEL“ button around 2 seconds until the function „Del All“ blinks in the display and below „DEL“

and„EXIT.“Selectthe„DEL“functionbymeansoftheJog-DialandconrmitbypressingtheDEL-button.„De-

leting“appearsbrieyinthedisplay.Nowallnotesintheactivefolderaredeleted.

Menu, Settings

ShortlypresstheMODEbuttontoenterthemainmenu.

SelectthelastsymbolEXITbymeansoftheJog-Dialtoexitthemainmenu.

Recording Settings

SelectRECORDundpresstheJog-Dialtoenterthemenuoftherecordingsettings.

Bit Rate (Recording quality)

Herethebitratecanbeselectfordeningwhichbitrateshallbetakentorecordthenotesortherecorded

audio data. It is possible to select between 32K, 64K (mono) and 96K, 128K (stereo).

The higher the bit rate, the better the quality but the more of the main storage is used.

Microphone Sensitivity

In the menu SENSE are 3 levels available to set the sensitivity of the microphone or the sensitivity is controlled

automatically by the device.

Voice Activation

In this menu the voice activation is switched on or off. The voice activation stops automatically the recording

during a speech- and silence period until the speech is continued. Turn up shortly the Jog-Dial again to set the

sensitivity of the voice activation. (01...insensitive, 27... very sensitive)

Input

InthemenuEXT.INyoucansethowexternalaudiolesshallberecorded.SelectMIKROFONtorecordfroman

externalmicrophone,andselectLINEtorecordexternalaudiolesbymeansofacopyingcable,forinstance,

a music title from a PC.

Time

In this menu, the time as well as the date can be set in the formats:

Day-month-year and hours-minutes-seconds.

SkipfromonepointtothenextbypressingtheJog-Dial.ThedateortimecanbechangedbyturningtheJog-

Dial up or down.

Folder

Notescanberecordedandstoredinsixfolders(A,B,C,D,E,andF).

PresstheMODEbuttonandnavigatetothesymbolFOLDERbymeansoftheJog-Dial.Conrmtheselected

folder by means of the Jog-Dial to access the submenu. Select the desired folder by means of the Jog-Dial.

Then the selected folder appears in the upper right edge of the display.

Disk

This menu shows the total, used and free memory space.

Language

Select the display language: English, German or French.

Display of the Firmware Version

HoldpushinguptheJog-DialandswitchonthedevicebymeansoftheSTOPbutton.Thermwareversionis

displayed in the start screen.

Specications

SizeWxLxH  approx.43×105×20mm

Netweight  approx.45g(nobattery)

Memory   Built-inashmemory,1GB

*Recordingtime  approx.70hourswithbitrate32K

Powersource  Batteries,2x1,5V,AAA(LR03)

*Batterylife  Recording(bitrate64K):Approx.480min

PlayMP3byspeaker: Approx.420minatvolumelevel70%

PlayMP3byearphone: Approx.600minatvolumelevel70%

Record format MP3, bitrates 32, 64, 96, 128 kbit/sec

Play-back format MP3, WMA

Display languages English, German, French

Filenumber  6voicefolders,1musicfolder,eachfoldercontents99les

USB port USB 2.0

Maxoutputpower  max.560mW

Recordingsources  Built-inmonomicrophone,external(jack3.5mm)lineorstereomicrophone

Sound output Earphone (jack 3.5 mm, stereo) impedance over 16 ohms

* Recording time will be varied by the bit rate setting

*TestwithAlkalinebatteries.Youmaynddifferentbatterylifetimewhenusingdifferentbrandofbatteryandvolumelevel.

Specicationssubjecttobechangedwithoutpriornotice.

Notes - Scope of delivery - User controls Start-up-SelectOperationMode Note Mode

MP3-Player / Music Mode Removable Disk - Play-Back Settings - Deleting Menu, Settings FirmwareVersion-Specications

User controls/buttons

1. Jack for earphone EAR

2. USB connection

3. JackforexternalmicrophoneMIC

4. Record button REC

5. Jog-Dial PLAY/PAUSE,

fast forward and rewind

6. Stopbutton„STOP“

7. Delete button DEL

8. Microphone loophole

9. KeylockHOLD

10.MenubuttonMODE

11. Recording indicator

12. Display

13.Button+

14. Button -

15. Speaker

English

Diginotice

OperatingInstructions
