Manual

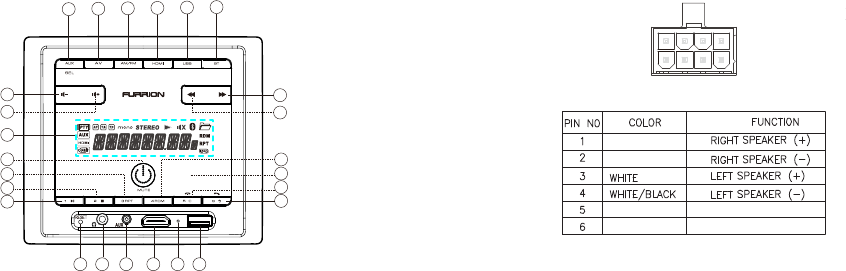

Locations and Names of the Controls

1. POWER & MUTE BUTTON

2. LCD DISPLAY

3. VOLUME + BUTTON

4. VOLUME - BUTTON

5. SEL/AUX MODE BUTTON

6. AV MODE BUTTON

7. AM/FM MODE BUTTON

8. HDMI MODE BUTTON

9. USB MODE BUTTON

10. BT MODE BUTTON

11. NEXT BUTTON

12. PREVIOUS BUTTON

13. 1/ PLAY/PAUSE BUTTON

14. 2/STOP BUTTON

15. 3/RPT BUTTON

16. 4/RDM BUTTON

17. 5/ BACKLIGHT/HANG UP BUTTON

18. 6/CLOCK ADJUST/ALARM/TEL BUTTON

19. RESET BUTTON

20. HEADPHONE SOCKET

21. AUX IN JACK

22. HDMI IN JACK

23. MICROPHONE IN

24. USB SOCKET

25.NFC DETECTION AREA

19 20

21 22

Wiring connecting socket view

GREY

RED +12V DC

GREY/BLACK

BLACK

POWER GROUND

Mounting Installation

Location

* Choose a mounting location away from humid

areas, water sources, appliances or any

equipment that can radiate heat.

* Select an area on a wall or cabinet which is free

from cable, fuel or brake lines and ensure the area

behind the DV7100 has a vent hole or if it is an

enclosed box and has adequate room around the

rear of the unit for cooling.

* Ensure when the stereo is mounted in the cut out

that the wires at the rear of the unit are not pressed

against the heat sink.

Installing the unit.

* Before finally installing the unit, connect the

wiring temporarily and make sure the unit and the

system work properly.

*Fix the unit with screw according to following

diagram.
