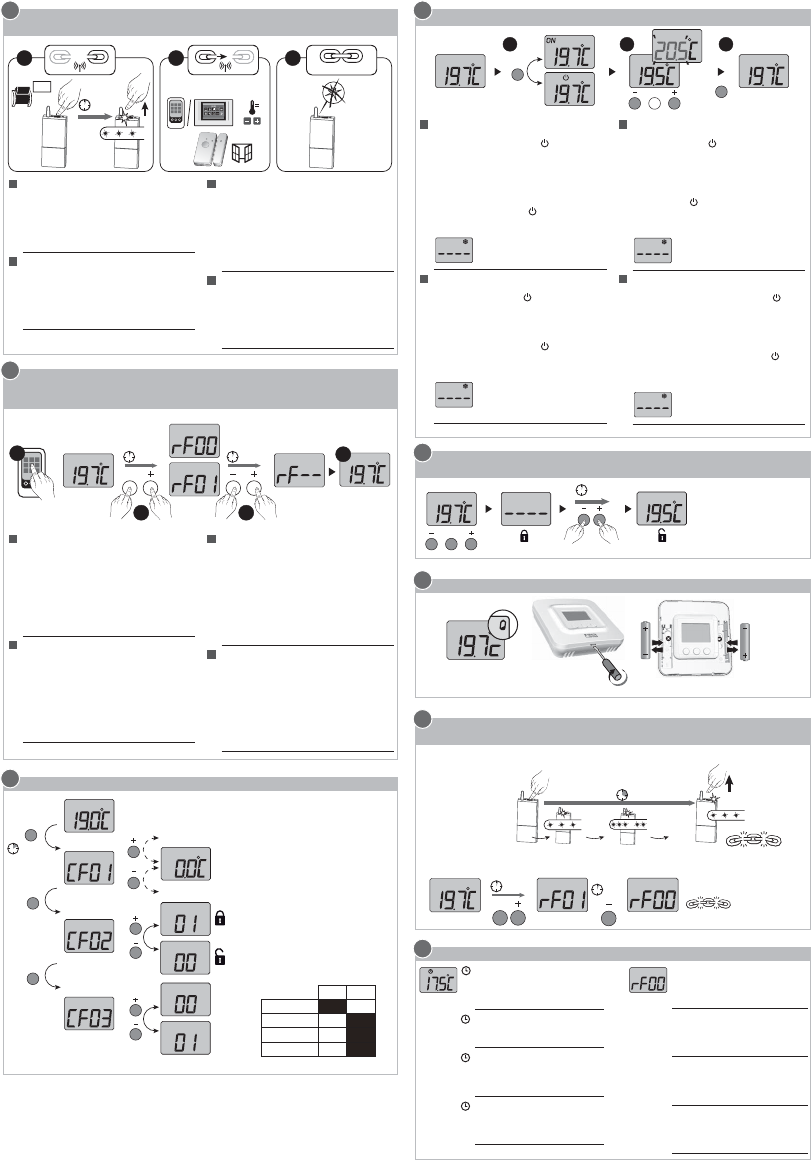

Manual

Associer un autre émetteur / Associate another transmitter / Zuordnen eines weite-

ren Empfängers / Associare un altro emettitore

Conﬁguration / Conﬁguration / Konfiguration / Conﬁgurazione

Utilisation / Use / Verwendung / Utilizzo

Déverrouiller les touches / Unlock the buttons / Freischalten der Tasten / Sbloccare i

tasti

Effacer les associations / Remove the associations / Zuordnungen löschen /

Cancellare le associazioni

Aide / Troubleshooting / Hilfe / Aiuto

Changer les piles / Replace the batteries / Batterien ersetzen / Sostituire le pile

Associer le thermostat pour l’optimisation solaire / Associate the thermostat for solar

optimisation / Zuordnen des Raumthermostats für die Solaroptimierung / Associare il

termostato per l‘ottimizzazione solare

>3s

... ... ...

OFF

230V~

50 Hz

OFF

1 2 3

Ex : TYBOX 2020 WT, TYDOM 4000,

apps TYDOM...

+ 5°C

- 5°C

>10s

mode

1 2 3

mode

>10s

>20s

3s 7s

10s

.. .. ..... .. ..

... ... ...

RESET OK

>3s

mode

2 x 1,5V - AAA LR03

>3s

mode

>3s

2 3

CF01 : Correction de la température mesurée /

Correcting the measured temperature /

Korrektur der gemessenen Temperatur /

Correzione della temperatura misurata /

CF02 : Verrouillage des touches / Locking the

buttons / Tastensperrung / Blocco dei tasti

CF03 :

00 01

TYBOX 5101 X

TYBOX 5100 X

TYBOX 5200 X

TYBOX 5150 X

Ê Mettez l’installation sous tension.

Appuyez 3 secondes sur la touche du récepteur

jusqu’à ce que son voyant clignote. Relâchez.

Ë Sur l’émetteur, envoyez l’ordre d’association

(voir sa notice).

Ì Vériﬁez que le voyant du récepteur ne clignote

plus. Les produits sont associés.

Switch on the installation.

Press and hold the receiver button for 3 seconds

until the LED ﬂashes. Release.

Ë Send the association command to the

transmitter (see user guide).

Î Make sure that the receiver LED has stopped

ﬂashing. The products are now associated.

Schalten Sie die Anlage ein.

Drücken Sie 3 Sekunden lang die Taste des

Empfängers, bis dessen Kontrollleuchte blinkt.

Lassen Sie die Taste los.

Ë Senden Sie am Empfänger den Zuordnungs-

befehl (siehe Anleitung).

Ì Stellen Sie sicher, dass die Kontrollleuchte

des Empfängers nicht mehr blinkt. Die Produkte

wurden zugeordnet.

Mettete sotto tensione l’installazione. Premete

per 3 secondi il tasto del ricevitore fino a quando

la sua spia lampeggia. Rilasciate.

Ë Sull’emettitore, inviate l’ordine di associazione

(vedere le relative istruzioni).

Ì Verificate che la spia del ricevitore non

lampeggi più. I prodotti sono associati.

Ê Mettez la centrale en mode «Association d’un

capteur de type sonde d’ambiance» (voir sa

notice).

Ë Sur le TYBOX 5101, appuyez simultanément

3 secondes sur les touches MODE et + jusqu’à

afﬁcher rF01 (rF00 si TYBOX 5101 utilisé seul)

Ì Appuyez simultanément 3 secondes sur les

touches + et -.

L’écran afﬁche rF--.

Í Sortie automatique du mode.

Set the alarm control unit to “Associate a

room sensor” mode (see user guide).

Ë Press and hold the MODE and + buttons on

the TYBOX 5101 simultaneously for 3 seconds

until it displays rF01 (rF00 if TYBOX 5101 is

used alone)

Ì Press and hold the + and - buttons simultane-

ously for 3 seconds.

The screen will display rF--.

Í The mode is automatically exited.

Bringen Sie die Alarmzentrale in den Modus

„Zuordnen eines Fühlers vom Typ Raumtempe-

raturfühler“ (siehe Anleitung).

Ë Drücken Sie am TYBOX 5101 3 Sekunden

gleichzeitig die Tasten MODE und +, bis rF01

angezeigt wird (rF00 falls TYBOX 5101 einzeln

verwendet wird).

Ì Drücken Sie 3 Sekunden lang gleichzeitig die

Tasten + und -.

Auf dem Display erscheint rF--.

Í Automatisches Verlassen des Modus.

Mettete la centrale in modalità “Associazione

di un sensore di tipo sonda ambiente” (vedere le

relative istruzioni).

Ë Sul TYBOX 5101, premete simultaneamente

per 3 secondi i tasti MODE e + fino a visualizza-

re rF01 (rF00 se TYBOX 5101 utilizzato da solo).

Ì Premete simultaneamente per 3 secondi i

tasti + e -.

Lo schermo indica rF--.

Í Uscita automatica dalla modalità.

Ê Appuyez sur une touche pour réveiller

l’afﬁchage. Le mode en cours s’afﬁche :

ON = autorisation de marche,

= Arrêt.

Pour le modiﬁer, appuyez sur Mode.

Ë A partir du mode ON, appuyez sur + ou - pour

afﬁcher la température de consigne et la

modiﬁer.

Ì Appuyez sur Mode ou attendez 5 secondes-

pour sortir.

Lors du passage du mode

au mode ON, la

consigne revient à sa valeur par défaut : 20°C.

Indique que le système est en

Hors-gel (10°C, non modiﬁable).

Exemple : fenêtre ouverte

Press any button to activate the display

screen. The current mode will be displayed:

ON = start authorisation,

= shutdown. To

change the mode, press Mode.

Ë From the ON mode, press the ‘+’ or ‘-’ buttons

to display the temperature setting and change it.

Ì Press on Mode or wait 5 seconds to exit.

When switching over from the

mode to the

ON mode, the setting’s default value is restored:

20°C.

Indicates that the system is in Frost

Protection mode (10°C non

modiﬁable).

Example: open window

Drücken Sie eine beliebige Taste, um das

Display einzuschalten. Der aktuelle Modus wird

angezeigt: ON = Ein,

= Aus. Drücken Sie auf

„Mode“, um diesen zu ändern.

Ë Drücken Sie im Modus ON auf + oder -, um

die Solltemperatur anzuzeigen und zu ändern.

Ì Drücken Sie auf Modus oder warten Sie

5 Sekunden, um diesen zu verlassen.

Beim Wechseln

in den Modus ON, wird der

Sollwert auf den Standardwert zurückgesetzt:

20 °C.

Zeigt an, dass das System im

Frostschutzbetrieb ist (10 °C, nicht

änderbar). Beispiel: Fenster offen

Premete un tasto per riattivare la visualizza-

zione. La modalità in corso viene visualizzata:

ON = autorizzazione di funzionamento,

Arresto. Per modificarla, premete su Mode.

Ë A partire dalla modalità ON, premete + o - per

visualizzare la temperatura di riferimento e

modiﬁcarla.

Ì Premete Mode oppure attendete 5 secondi

per uscire. Al passaggio dalla modalità

alla

modalità ON, il valore di riferimento ritorna al

valore predeﬁnito: 20 °C.

Indica che il sistema è in modalità

Antigelo (10 °C, non modiﬁcabile).

Esempio: ﬁnestra aperta

Sur le récepteur / On the receiver / Am Empfänger / Sul ricevitore

Sur le thermostat / On the thermostat / Am Raumthermostat / Sul termostato

Indique qu’une dérogation de la

température de consigne est en

cours sur l’émetteur associé

(ex : TYBOX 2020 WT).

Indicates a temperature setting over-

ride on the associated transmitter

(e.g.: TYBOX 2020 WT).

Zeigt an, dass die Solltemperatur-

regelung aktuell vom zugeordneten

Sender(z. B.: TYBOX 2020 WT)

unterbrochen wird.

Indica che una deroga della tem-

peratura di riferimento è in corso

sull’emettitore associato

(es.: TYBOX 2020 WT).

Indique ponctuellement qu’il y a eu un

conﬂit de transmission radio et que la

commande n’est pas passée.

Recommencez l’opération.

Temporarily indicates that there has

been a wireless transmission conﬂict

and that the command was not sent.

Repeat the operation.

Zeigt an, dass die Funkübertragung

zeitweise nicht möglich ist und der

Befehl nicht gesendet werden konnte.

Wiederholen Sie den Vorgang.

Indica puntualmente che si è veriﬁcato

un conﬂitto di trasmissione radio e che

il comando non è passato.

Ricominciate l’operazione.
