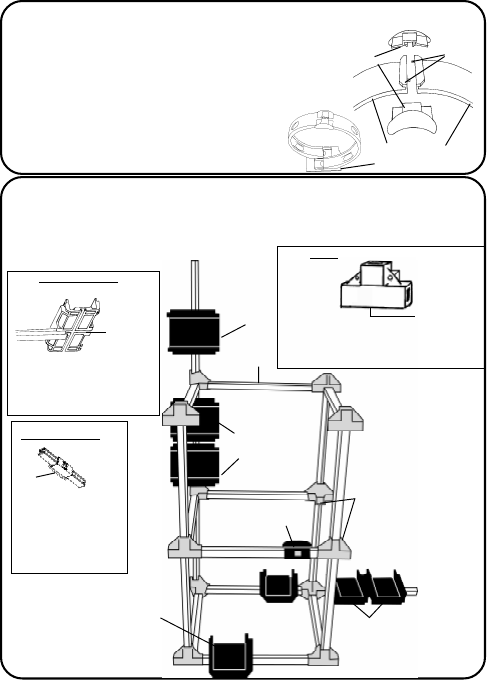

STEP ONE - Make the loops, using 12 loop halves, 12 loop

joiners and a small base plate

• To make each loop, put two loop halves together so that the pins

at the top of each loop half go into the proper holes, creating a tight

fitting seam between the two loop halves.

• Holding the loop halves together, slide one loop joiner over one end

of the seam and the other loop joiner over the other end of the seam.

• Repeat this step to make six loops from the 12 loop joiners and 12

loop halves in this set.

STEP TWO - Build the tower using 20 bars, 12 couplers, 7 large

joiners and one small joiner.

Using the couplers, connect the bars to create the tower as shown below. Work from the

bottom upward. Be sure all bars slide into couplers as far as they will go.

PAGE 2

Important:

When attaching the small

joiner, be sure that the

flat side is facing as

shown in FIGURE 1.

SMALL JOINERS

Flat Side

topside

underside

short

channel

LARGE JOINERS

When attaching Large Joiners be

sure to slide the bars into the

short channel on each large

joiner.

pins

loop joiners

loop halves

• Locate the small base plate. Attach one loop to the base

plate by sliding one end of the loop over one built in track

joiner and the other end of the loop over the other built in

track joiner. Put this aside for later.

Large Joiners

Large Joiner

Large

Joiners

(On back

bar)

Large

Joiner

Small Joiner

Bar

Notice that there is

no bar between the

two couplers here

FIGURE 1

Be sure the flat side hole is always

facing down. Position couplers as

shown in FIGURE 1.

COUPLERS

Hole on

bottom

Large

Joiner

small baseplate
