Manual Corsair Hydro Series H80i v2 CPU Cooler

Name: Corsair Hydro Series H80i v2 CPU Cooler
Brand: Corsair
SKU: Hydro Series H80i v2
Rating: 100 (1 reviews)

Need a manual for your Corsair Hydro Series H80i v2 CPU Cooler? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 1 vote with an average product rating of 100/100. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

2 3

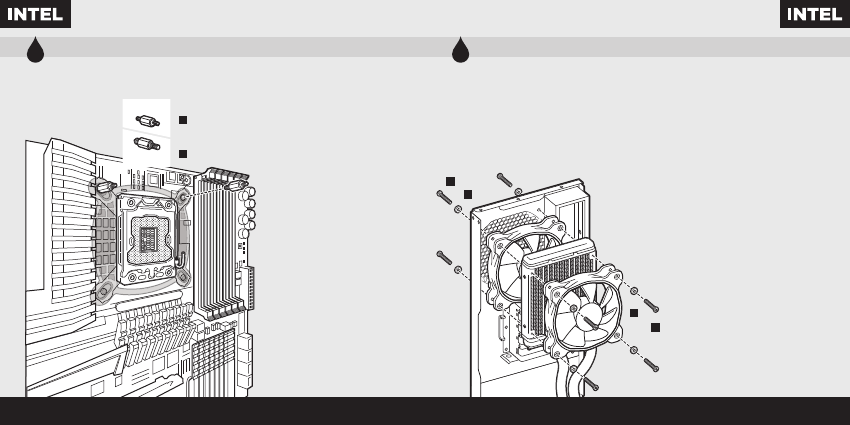

Installing the Intel Stando Screws

Installation des vis d'entretoise Intel • Installation der Intel-Abstandhalter

Instalación de los tornillos del separador para Intel • Установка опорных винтов Intel

安装Intel隔架螺丝

• Attach the provided Intel stando.

• Use (B) for LGA 115X / 1366, or (C)

for LGA 2011.

• Tighten all four screws until ﬁrmly secure.

• Fixez les entretoises Intel fournies.

• Utilisez-en (B) pour un socket LGA 115X / 1366

ou (C) pour un socket LGA 2011.

• Serrez les quatre vis jusqu'à ce qu'elles ne

puissent plus bouger.

• Befestigen Sie den im Lieferumfang

enthaltenen Intel-Abstandhalter.

• Verwenden Sie (B) für LGA 115X / 1366

oder (C) für LGA 2011.

• Ziehen Sie alle vier Schrauben fest.

• Conecte el separador para Intel suministrado.

• Utilice (B) para LGA 115X / 1366 o (C) para

LGA 2011.

• Apriete los cuatro tornillos hasta que estén

bien ﬁjados.

• Прикрепите входящую в комплект опору

Intel.

• Для LGA 115X / 1366 используйте (B), а для

LGA 2011— (C).

• Хорошо затяните все четыре винта.

• 连接随附的Intel隔架。

• 为LGA 115X / 1366使用(B)，或者为LGA 2011

使用(C)。

• 拧紧全部四个螺丝，直至牢牢地固定。

LGA2011

LGA 115X/1366

Installing the Fan and Radiator

Installation du ventilateur et du radiateur • Installation des Lüfters und Kühlers

Instalación de los ventiladores y el radiador • Установка вентилятора и радиатора

安装风扇和散热器

• Mount the radiator and fans to your case’s rear 120mm

fan opening as shown below.

Note: For best cooling performance, we recommend

mounting the fan as an air intake to your PC case.

• Fixez le radiateur et les ventilateurs à l'arrière de votre

tour, dans l'ouverture de 120mm prévue à cet eet,

comme indiqué ci-dessous.

Remarque : Pour des performances de refroidissement

optimales, nous vous recommandons d'installer le

ventilateur comme une entrée d'air sur la tour de

votre ordinateur.

• Montieren Sie den Kühler und die Lüfter an den

Önungen für die hinteren 120-mm-Lüfter, wie in der

Abbildung unten dargestellt.

Hinweis: Für die bestmögliche Kühlleistung empfehlen

wir, den Lüfter als Lufteinlass des PC-Gehäuses

zu montieren.

• Monte el radiador y los ventiladores en la abertura trasera

de 120mm para ventiladores de la carcasa como se

muestra a continuación.

Nota: Para una refrigeración óptima, recomendamos

montar los ventiladores como entrada de aire en la

carcasa del PC.

• Установите радиатор и вентиляторы к заднему

отверстию для 120mm вентиляторов вашего корпуса,

как указано ниже.

Примечание. Для более эффективного охлаждения

рекомендуется установить вентилятор таким

образом, чтобы он нагнетал воздух внутрь корпуса.

• 按下图所示，在机箱后侧120mm风扇开口处安装散热器

和风扇。

注：为了达到最佳散热性能，建议您将风扇作为进气口安

装到PC机箱上。

Download manual in English (PDF, 1.96 MB)
