Manual Clarke Pioneer 210 Compressor

Need a manual for your Clarke Pioneer 210 Compressor? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

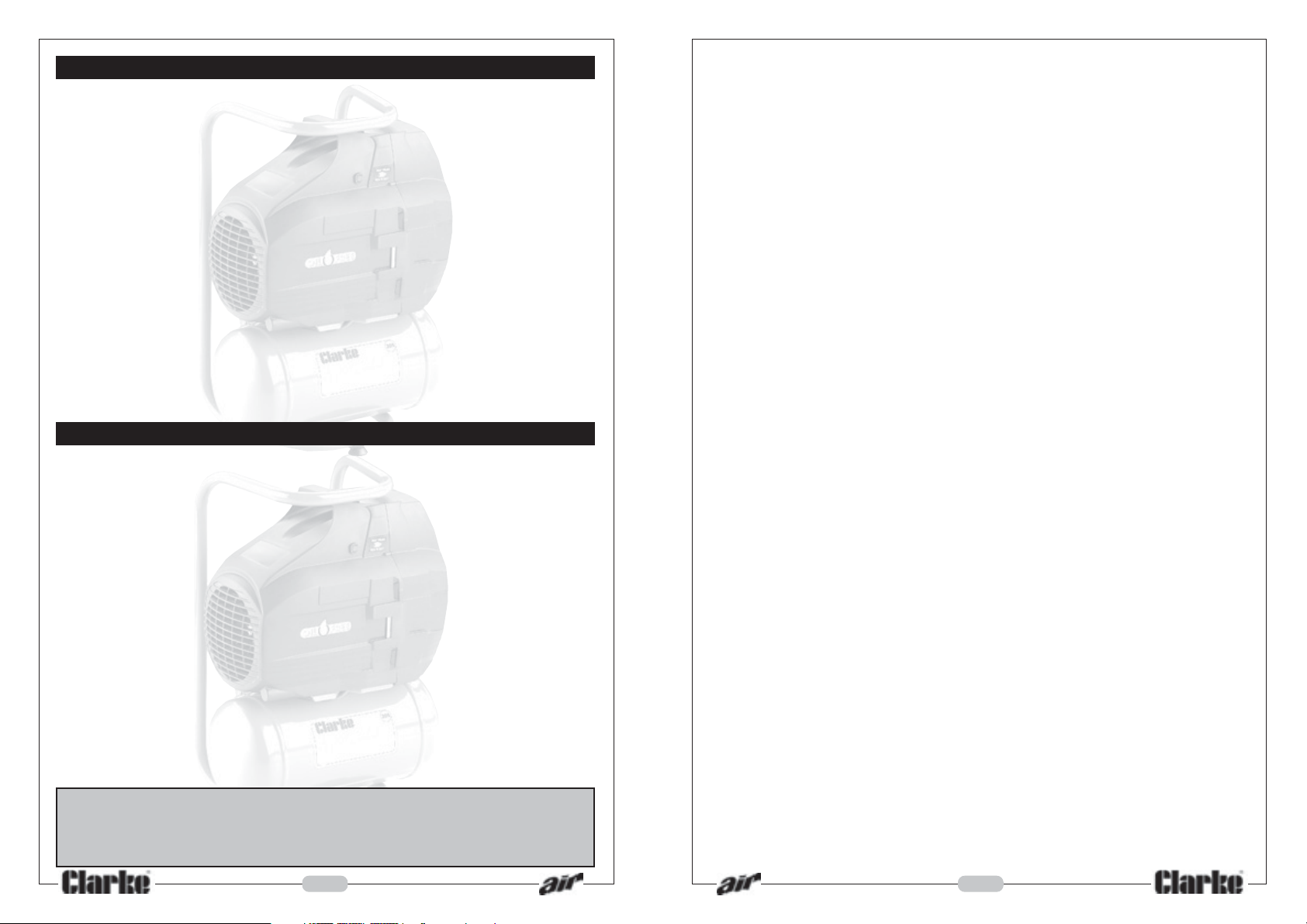

- 1 -

Please note that the details and specifications contained herein are correct at the time of going to

print. However CLARKE International reserve the right to change specifications at any time without

prior notice. Always consult the machines data plate

SPECIFICATIONS

Model: .................................................................... Pioneer 210 O/ F

Part No: ................................................................................ 2320210

Motor: ..................................................................................... 1.5 Hp

Voltage: ............................................................................... 230 vac

Fuse rating ............................................................................. 13amp

Air Displacement: ................................................................ 6.3 cfm

Max Working Pressure: ............................................................. 8 Bar

Air Receiver capacity: ............................................................... 6 ltr

Net Weight: .............................................................................. 13 kg

Dimensions: ............................................... L350 x W260 x H490mm

Duty Cycle ..................................................... S3-40% @ Max 7bar*

* The compressor may only be operated continuously for 4 minutes in any

period of 10 minutes, when output is max. 7 bar. (ie ; 4mins ON 6 mins OFF)

CONTENTS Page

Specifications: ................................................................................. 1

Guarantee: ..................................................................................... 2

Safety Precautions.......................................................................... 3

Electrical Connections ................................................................... 4

Operating Instructions .............................................................. 5 & 6

Routine Maintenance ..............................................................6 & 7

Accessories ..................................................................................... 7

Trouble Shooting ............................................................................. 8

Parts Diagram ................................................................................. 9

Parts List ......................................................................................... 10

Paint Spraying Hints ..............................................................11 & 12

Notes .............................................................................................. 13

Declaration of Conformity .......................................................... 14
