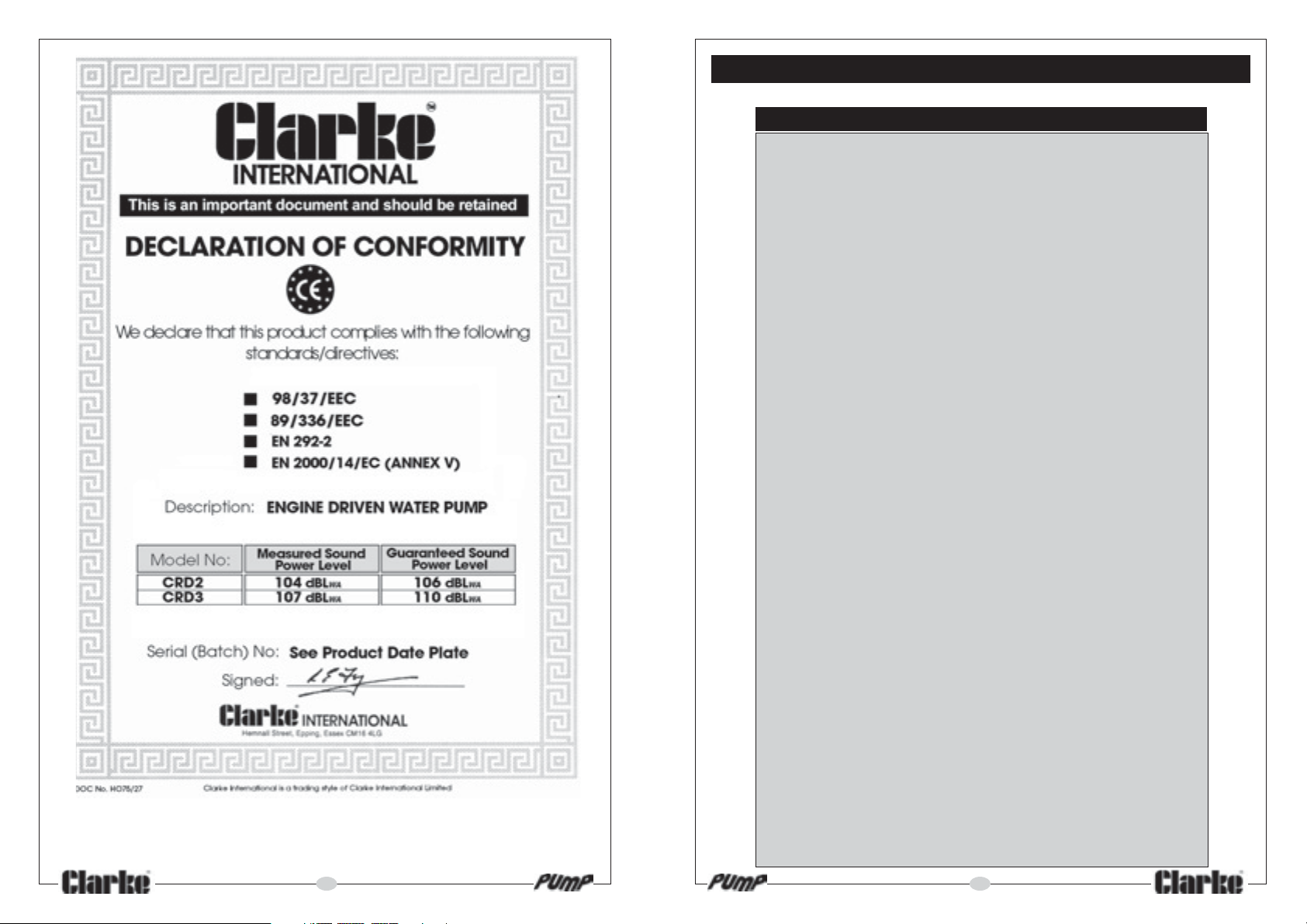

Manual

Please note that the details and specifications contained herein, are correct at the time of going to

print. However, CLARKE International reserve the right to change specifications at any time without

prior notice. Always consult the machine’s data plate

No. Description Q’ty Part No.

1 Casing 1 803-001rd2

2 Casing Cover 1 501-014

3 Impeller 1 881-009

4 Inner Casing 1 801-011

5 Bend 1 801-019

6 Valve Case 1 801-013

7 Mechanical Seal 1 501-010

8 Packing, Casing 1 501-002

9 Packing, Inner Casing 1 801-012

10 Packing, Bend 1 801-020

11 Check Valve 1 801-015

12 Plug 2 501-021

13 Packing, Plug 2 501-022

14 Bolt M8x50 4 501-005

15 Spring Washer 8 4 501-007

16 Plain Washer 8 4 501-008

17 Seal Packing 4 501-006

18 Frame 1 801-030rd2

19 Base (Engine) 1 821-005rd 2/2

20 Base (Pump) 1 821-005rd 2/1

21 Support 2 801-038rd2

22 Anti Vibration Pad 3 821-019

23 Hex.bolt M10x30 4 501-003

24 Hex.bolt M8x25 4 501-014

25 Hex.bolt M8x30 3 801-014

26 Hex.bolt M10x50 2 1021-003

27 Flange Nut (M10) 2 1001-033

28 Nut (w/Spring Washer) 6 1001-024

29 Hex.bolt M8x20 4 501-041

30 Washer 4 501-008

31 Flange Nut (M8) 2 501-024

32 Packing, Coupling 2 801-017

33 Hose Coupling 2 801-018p

34 Hose Coupling Handle 2 801-016

35 Hose Band 3 801-028

36 Strainer 1 805-029

PARTS LIST - CRD3

Download manual in English (PDF, 0.25 MB)
