INTRODUCTION

These self-priming centrifugal pumps are designed for pumping water, or water

containing small solids in suspension. The pumps are self-priming, and an open

impeller with small solids handling capacity is fitted (see specifications). The suction

strainer supplied, must always be used, to ensure that large stones or other objects

cannot be drawn up, as this would cause severe damage to the pump.

Models CH2E and CH3D should be used for water only, Models CHS2E and CHS3

are semi-trash pumps, and may be used for contaminated water. Models CHF2

and CHF3, are trash pumps, for use with heavily contaminated water.

REMEMBER: Contaminated water is water containing small solids in suspension,

NOT slurry, sludge, sand, or mud.

This illustration shows a CH3D pump, but all pumps are similar in construction.

1. Input to Suction Chamber

2. Output or Discharge pipe

3. Filler Plug

4. Strainer

5. Drain Plug

6. Suction Chamber Bolts

7. Starter Recoil Rope

8. Oil Filler and Dipstick

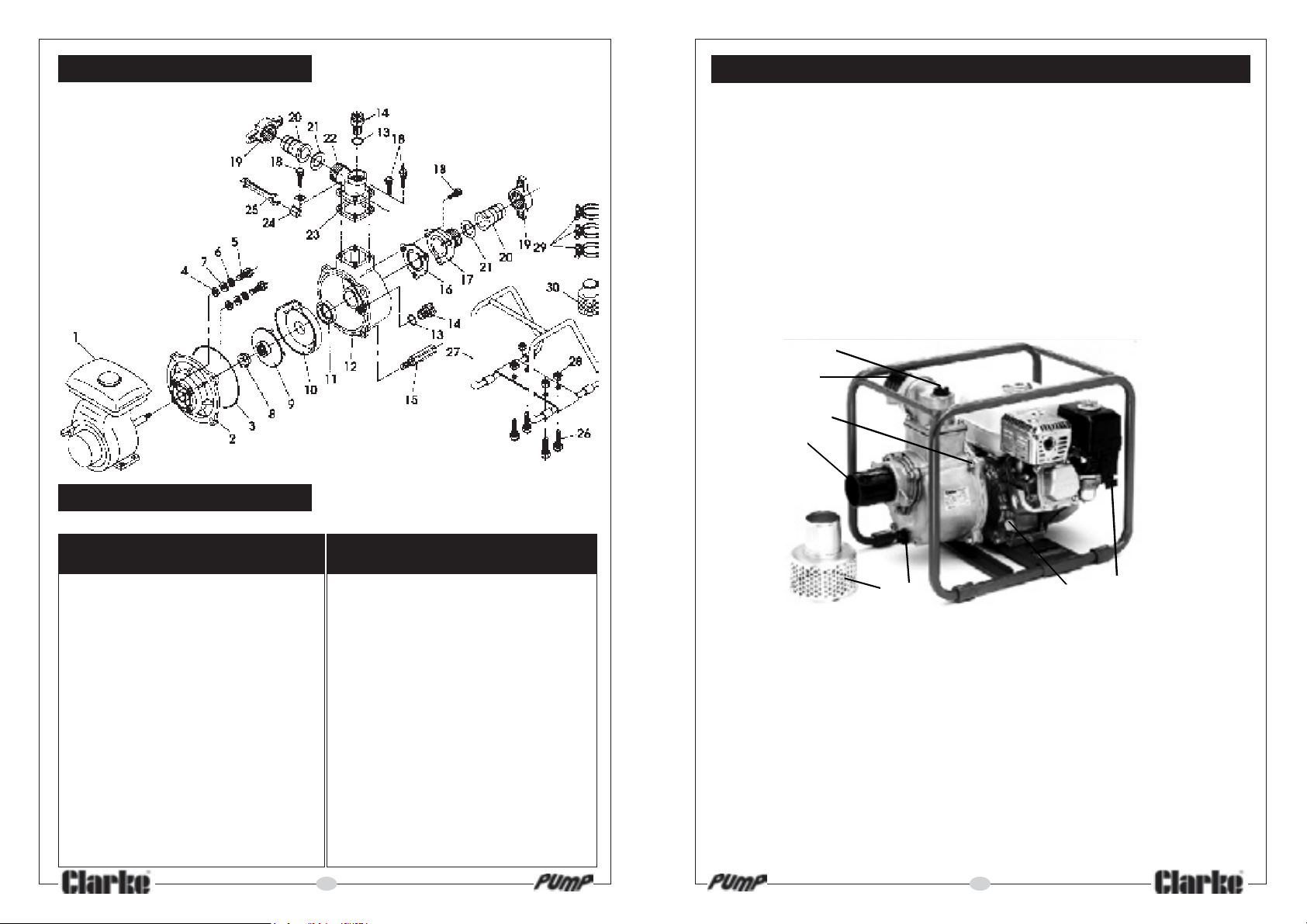

PARTS DIAGRAM

Models - CHS2 & CHS3

PARTS LIST

For Engine part no. - Consult your CLARKE dealer

No. Description Part No. Part No.

1 Motor Consult your dealer

2 End Cover DS501-004 DS501-004

3 Packing Casing DS501-002 DS501-002

4 Seal Packing DS501-006 DS501-006

5 Bolt M8x48 DS521-027 DS501-005

6 Spring Washer N/A N/A

7 Plain Washer N/A N/A

8 Mech Seal DS521008 DS521008

9 Impeller DS571-009 DS871-009

10 Inner Casing DS571-011 DS571-811

11 Packing DS501-012 DS801-012

12 Casing DS510-001 DS801-001

13 Sealing Ring DS510-022 DS501-022

14 Plug DS501-021 DS501-021

15 Special Bolt DS571-003 DS571-003

16 Check Valve DS501-015 DS801-015

17 Valve Case DS501-013 DS801-013

18 Bolt M*x25 N/A N/A

19 Coupling DS501-016P DS801-016

20 Hose Coupling DS501-018P DS801-018P

21 Packing DS501-017 DS801-017

22 Outlet Conn. DS501-019 DS801-019

23 Gasket DS501-020 DS801-020

24 Bracket DS571-021 DS571-021

25 Spanner DS571-022 DS571-022

26 Bolt M8x40 N/A N/A

27 Frame DS571-030 DS871-030

28 Nut N/A N/A

29 Hose Clip DS501-028 DS801-028

30 Strainer DS571-029 DS871-029

No.Description Part No. PartNo.

CHS2 CHS3 CHS2 CHS3
