Thank you for purchasing this Clarke Water Pump, designed for pumping water, or

water containing, sand, or solids in suspension, depending upon the model (please

see below).

Please read this leaflet thoroughly and follow the instructions carefully, in doing so

you will ensure the safety of yourself and that of others around you, and with

correct handling and servicing, you can look forward to the pump giving you

long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be required

as proof of purchase. This guarantee is invalid if the product is found to have been

abused or tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase. No product can be

returned to us without prior permission. This guarantee does not effect your statutory

rights.

SPECIFICATIONS

Model No. CH2E CH3D CHS2E CHS3 CHF2 CHF3

Hose Dia. 2" 3" 2" 3" 2" 3"

Motor HP 4.0 5.5 4.0 5.5 5.5 8.0

Max Flow 600 L/m 925 L/m 700 L/m 1000 L/m 750 L/m 1300 L/m

Max Head 26M 30M 23M 23M 27M 28M

Max Suction 7.5M 7.5M 7.5M 7.5M 7.5M 7.5M

Height

Weight kg 21.5 27 21 26 33 57

Dimensions 470x355x350 456x370x370 429x368x344 500x400x396 510x440x397 660x484x572

Max Size of

Solids in - - 20mm 20mm 31mm 31mm

Suspension

Part No. 7140520 7140610 7230150 7230110 7230120 7230125

Model - CHF3

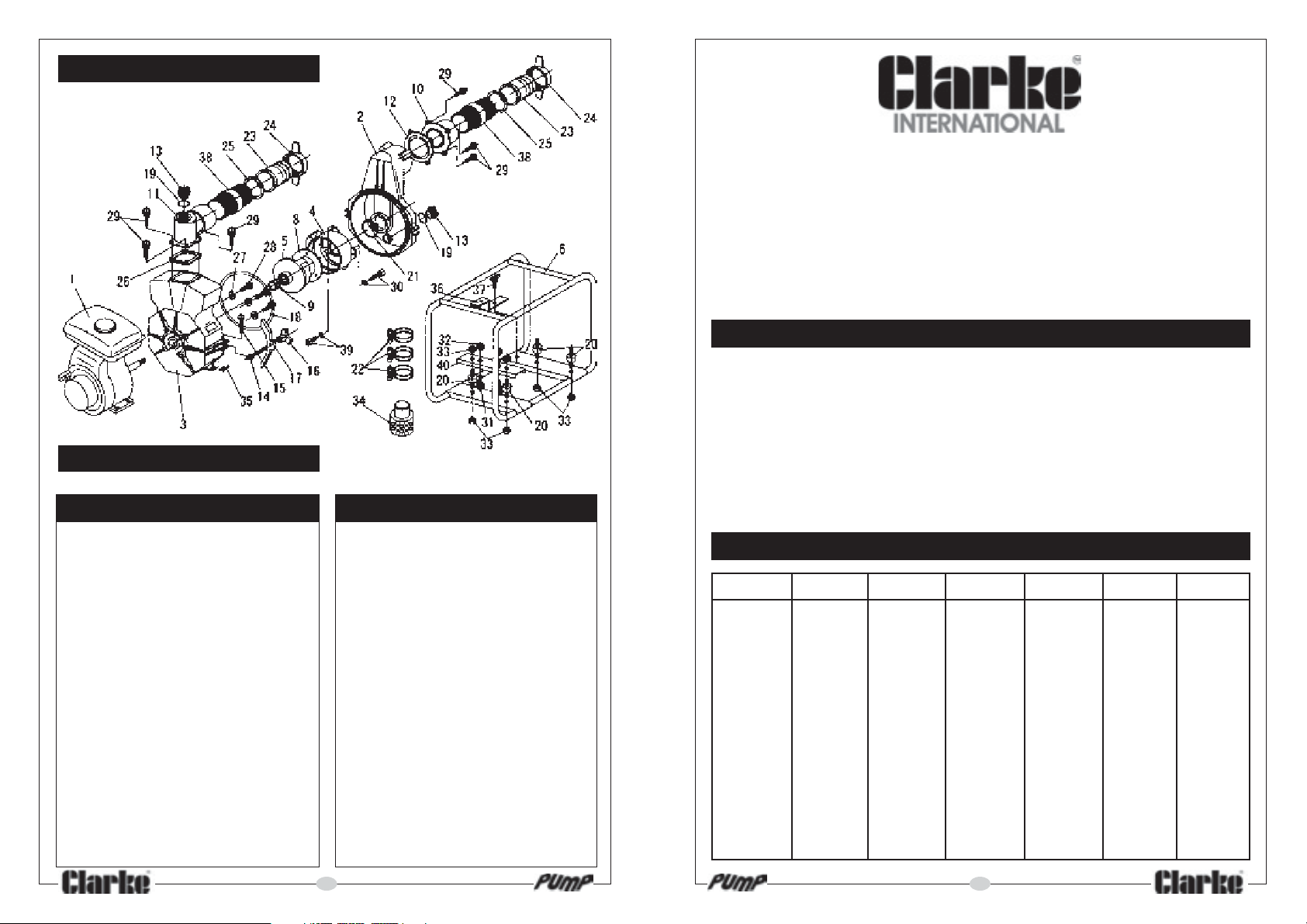

PARTS DIAGRAM

No. Description Part No.

1 Engine See yr Dealer

2 Casing DS821-001N

3 Casing Cover DS821-002

4 Inner Casing DS821-003N

5 Impeller DS821-004

6 Frame DS821-005-

8 Liner DS821-007N

9 Mechanical Seal DS821-008

10 Flange DS821-009N

11 Outlet Adapter DS821-010N

12 Check Valve DS821-011N

13 Filler Plug DS801-012

14 Cover Bolt DS821-013

15 Rivet DS821-014

16 Knob DS821-015

17 Casing Cover Hldr DS821-016

18 Casing Packing DS821-017

19 “O” Ring DS801-018

20 Anti-Vibration Rubber DS821-019

21 Inner Casing Bkt DS821-020

PARTS LIST

For Engine part no. - Consult your CLARKE dealer

22 Hose Clip DS801-028

23 Hose Coupling DS801-018

24 Coupling DS801-016

25 Coupling Packing DS801-017

26 Delivery Packng DS801-020

27 Seal Packing DS501-006

28 Bolt M8x48 N/A

29 Bolt M10x30 N/A

30 Blt Hex. Skt. M6x20 DS821-029

31 Bolt M10x45 N/A

32 Flange Nut DS1001-025

33 Spring Nut DS1001-024

34 Strainer DS821-033

35 Spring Pin DS821-034

36 Bracket DS521-035

37 Wing Bolt DS521-036

38 Coupling DS831-033

39 Hex Skt Hd. Bolt DS821-039

40 Support Bracket N/A

No. Description Part No.
