PREPARING THE PUMP FOR OPERATION

A. GENERAL.

Always prepare the site beforehand.

Ensure there is an adequate, firm foundation on which the pump may be located,

and as near the water source as possible.

Ensure there is adequate drainage for the discharged water, and that there is no

danger of damage to property as a result of the pumping operation.

B. THE ENGINE.

WARNING:

Never run the engine in an enclosed space

- ensure there is adequate ventilation.

This pump is not supplied with engine oil or fuel. Fill the engine crankcase with oil

as specified in the engine manual.

Fill the fuel tank with petrol.

Consult the engine manual and carry out all checks, and prepare for use as

specified.

C. THE PUMP

1. Place the pump on a firm, level foundation, putting it as near as possible to

the water source, and ensure it is anchored where necessary, to prevent it

from moving during operation.

2. Connect the suction hose to the pump housing, and ensure the complete hose

is sound. There must be no damage of any kind. The connection at the pump

body, and all other connections, (should there be any), must be air tight.

Hoses or pipes should he supported independently and not carried by the pump.

IMPORTANT : An air leak in the suction line will prevent priming, and reduce

the capacity of the pump. The vast majority of problems which may occur,

are as a result of air leaks in the suction line.

Pay particular attention to the following:

a. Use sealant on all threaded connections.

b. Always ensure the quick release gasket is in place, and correctly fitted.

c. Always use a flexible hose at the pump body connection, of at least 1ft

(300mm).

d. Keep all pipes/hoses as short and straight as possible, and avoid sharp bends.

e. If a flexible hose must he laid across a roadway, protect it with planking.

(Instantaneous shut off pressure, applied when a vehicle runs across an

unprotected hose, will cause “hydraulic shock”, which can damage the

pump and/or the hose).

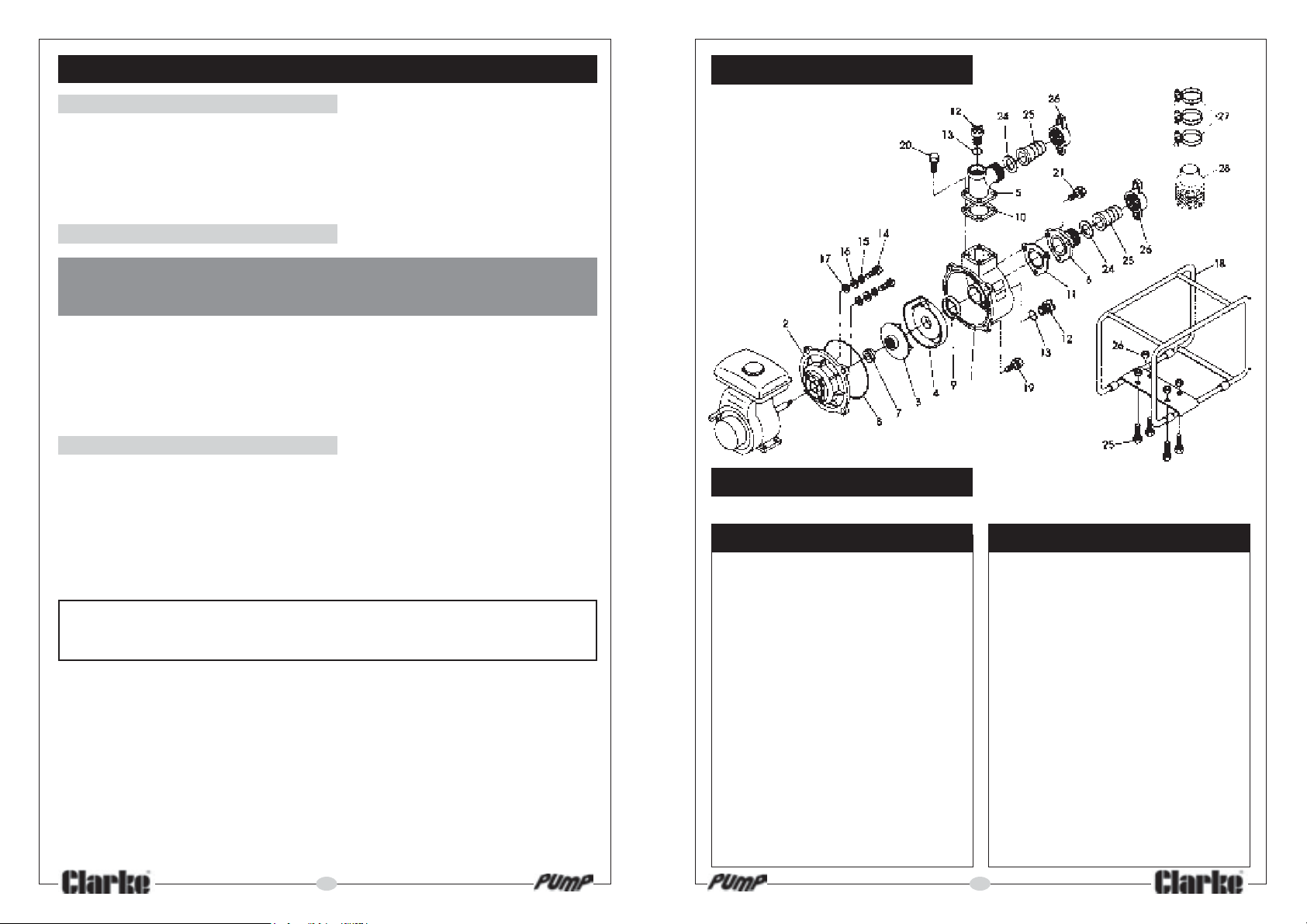

PARTS DIAGRAM

PARTS LIST

For Engine part no. - Consult your CLARKE dealer

Model - CH3D

No. Description Part No.

- Engine See Dealer

1 Casing DS801001

2 End Cover DS501004

3 Impeller DS801009

4 Inner Casing DS801001

5 Outlet Connector DS801019

6 Valve Casing DS801013

7 Mechanical Seal DS501010

8 Sealing Ring DS501002

9 Packing Inner Casing DS801012

10 Gasket Outlet Conn. DS801020

11 Check Valve DS801015

12 Plug DS501012

13 Packing Plug DS501022

14 Bolt M8x48 N/A

No. Description Part No.

15 Spring Washer N/A

16 Plain Washer N/A

17 Seal Packing DS501006

18 Frame DS801030N

19 Bolt M10x30 SW DS501003

20 Bolt M8x25 SW DS501014

21 Bolt M8x30 SW DS801014

22 Bolt M8x40 SW DS501023

23 Flange Nut M6 N/A

24 Packing Coupling DS801017

25 Hose Connector DS801018

26 Hose Coupling DS801016

27 Hose Clip DS801028

28 Strainer DS801029
