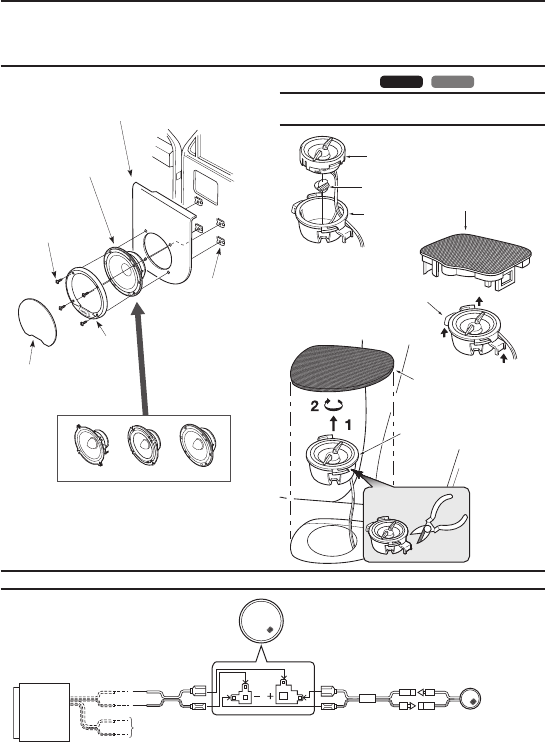

EXAMPLE OF MID-RANGE/WOOFER INSTALLATION

EXEMPLE D’INSTALLATION D’UN HAUT-PARLEUR DE MÉDIUM-GRAVE

BEISPIEL FÜR MITTELTÖNER/TIEFTÖNER-MONTAGE

ESEMPIO DI INSTALLAZIONE DI MID-RANGE/WOOFER

EJEMPLO DE INSTALACIÓN DE ALTAVOZ DE GAMA MEDIA/GRAVES

Door trim

Garniture de porte

Türleiste

Copertura della portiera

Panel de adorno de la puerta

Grille

Gitter

Griglia

Rejilla

Punching net

Grille de protection

Stanznetz

Retina di foratura

Red

Speaker

Haut-parleur

Lautsprecher

Diffusore

Altavoz

4–Mounting screws

4–Vis à tôle

4-Befestigungschrauben

4 viti di montaggio

4–Tornillos de montaje

4–Speed nuts

4–Ecrous fendus

4 Klemmmuttern

4 dadi rapidi

4–Tuercas rápidas

SRG1323S SRG1723SSRG1623S

SRG1723S

English Français

TWEETER CUSTOM FIT

TWEETER PERSONNALISÉ

]

Speaker panel

Panneau de

haut-parleur

Speaker assembly

Ensemble de haut-parleur

Speaker panel

Panneau de haut-parleur

Speaker assembly

Ensemble de haut-parleur

Speaker

Haut-parleur

Cushion (tape)

Coussin (bande)

Adapter

Adaptateur

WIRE CONNECTIONS / CONNECTIQUE / VERDRAHTUNG / COLLEGAMENTO DEI CAVI / CONEXIÓN DE CABLES

Tweeter

Altavoz de agudos

Mid-range / Woofer

Médium-Grave

Mitteltöner/Tieftöner

Mid-range / Woofer

Altavoz de gama media / graves

(+)

(–)

(

(–)

Center Unit

Appareil pilote

Mitteneinheit

Unità centrale

Unidad central

* Connect the L side in the same way as for the R side.

* Raccorder le côté L (gauche) de la même manière que le côté R (droit).

* Die L-Seite (links) genauso wie doe R-Seite (rechts) verbinden.

* Collegare il lato L nello stesso modo del lato R.

* Conecte el lado L igual que el R.

(+)

(–)

(

(–)

(

(–)

(+)

(–)

(

)

(–)
