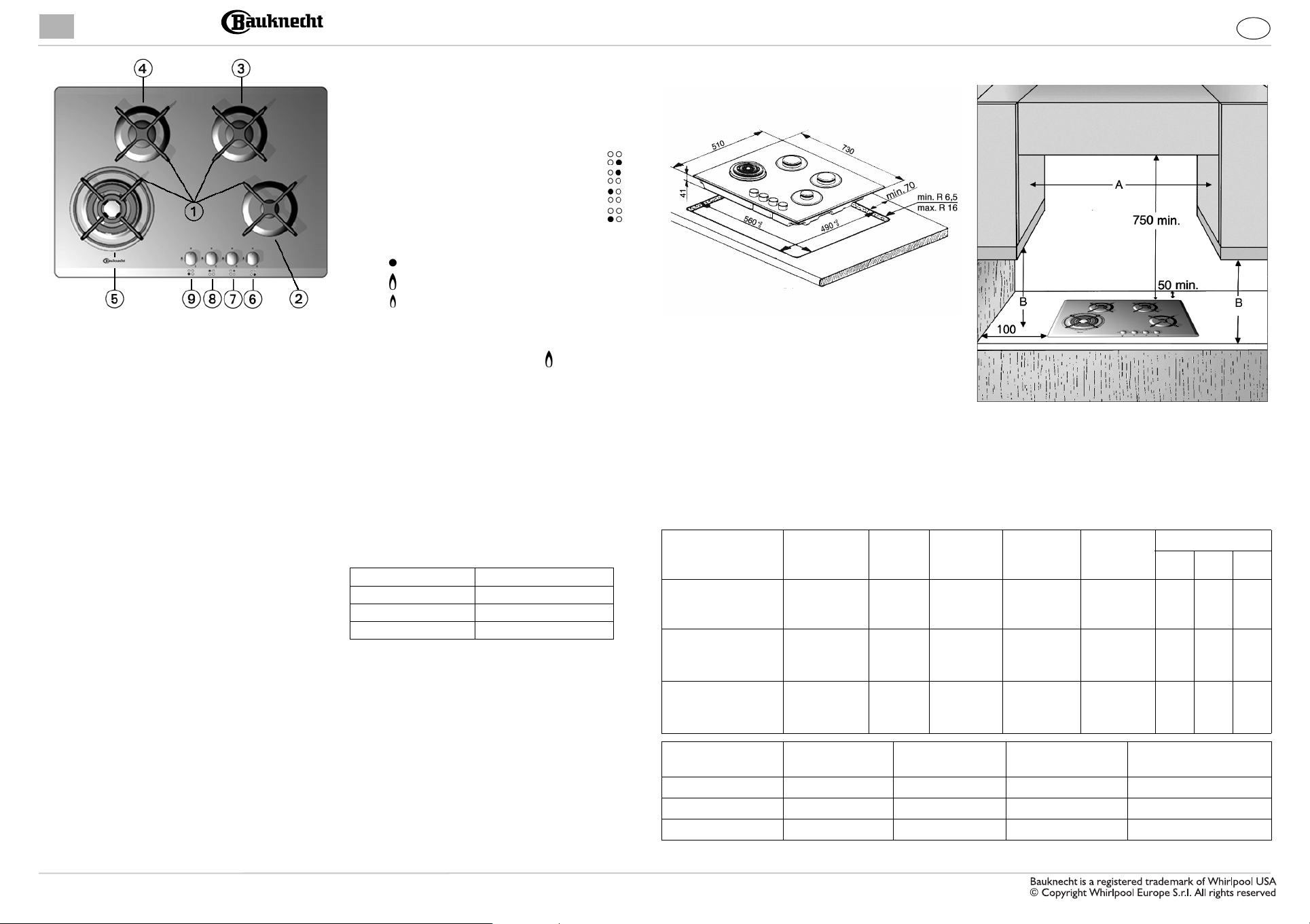

TGV 5470 PRODUCT DESCRIPTION SHEET

5019 419 01125

To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation

LIGHTING THE BURNERS

• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting .

• Press the knob against the control panel to ignite the burner.

• After the burner has ignited, keep the knob pressed for about 5 seconds to allow the thermocouple to warm up.

This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden

draught, an interruption in the gas delivery, boiling over of liquids, etc.).

• The device must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not

remain lit, wait at least one minute before trying to light it again.

- The burner might go out when the knob is released. This means that the thermocouple has not warmed up enough.

In this case, repeat the operations described above.

PRATICAL ADVICE FOR USING THE BURNERS

For better burner performance, please stick to the following rules:

- Use pots and pans that fit the burners (see table on the

right).

- Only use flat-bottomed pots and pans.

- Use the correct amount of water for cooking foods and

keep the pot covered.

- In the case of pans with convex bottoms (WOK), use

the support grille provided, which should be positioned

only on the 4 ring burner.

Important:

Improper use of the grids can result in damage to the hob:

do not position the grids upside down or slide them across

the hob.

Do not use:

- Cast iron griddles, ollar stones, terracotta pots and

pans.

- Heat diffusers such as metal mesh, or any other types.

- Two burners simultaneously for one receptacle (e.g. fish

kettle)

1. Removable panstand grids

2. Auxiliary burner

3. Semi-rapid burner

4. Semi-rapid burner

5. 4 ring burner

6. Auxiliary burner control knob

7. Semi-rapid burner control knob

8. Semi-rapid burner control knob

9. 4 ring burner control knob

SYMBOLS

Tap closed

Maximum flame

Minimum flame

Burner Pot Ø

4 ring burner from 24 to 26 cm

semi-rapid from 16 to 22 cm

auxiliary from 8 to 14 cm

DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)

NOTE: If the distance “A” between the wall cabinets is between 600 mm and 730 mm, the height

“B” must be a minimum of 530 mm.

If the distance “A” between the wall cabinets is greater than the width of the cooktop, the

height “B” must be a minimum of 400 mm.

In case of installation of a hood above the cooktop, please refer to the hood instructions for

the correct distance.

INJECTOR TABLE CATEGORY II2H3+

ELECTRIC SUPPLY: 230 V ~ 50 Hz

Type of gas used Type of burner Injector

marking

Rated

thermal flow

rate kW

Rated

consumption

Reduced

heat capacity

Gas pressure (mbar)

min. rat. max.

NATURAL GAS

(Methane) G20

4 ring

semi-rapid

auxiliary

139

3.50

1.65

1.00

333 l/h

157 l/h

95 l/h

1.50

0.35

0.30

17 20 25

LIQUID

PETROLEUM GAS

(Butane) G30

4 ring

semi-rapid

auxiliary

3.50

1.65

1.00

254 g/h

120 g/h

73 g/h

1.50

0.35

0.30

20 28-30 35

LIQUID

PETROLEUM GAS

(Propane) G31

4 ring

semi-rapid

auxiliary

3.50

1.65

1.00

250 g/h

118 g/h

71 g/h

1.50

0.35

0.30

25 37 45

Type of gas used Configuration

model

Rated thermal

flow rate kW

To t a l r a t e d

consumption

Air necessary (m

) for the

combustion of 1 m

of gas

G20 20 mbar 4 burners 7.8 742 l/h 9.52

G30 28-30 mbar 4 burners 7.8 567 g/h 30.94

G31 37 mbar 4 burners 7.8 557 g/h 23.80
