Manual Audison LRx 6.SR Car Amplifier

Need a manual for your Audison LRx 6.SR Car Amplifier? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

IN REAR

Left (L) and right (R) channels inputs of the amplifier REAR system. Rear preamplified outputs of a

source (head unit, CD player, DAT, etc.) or of an external electronic crossover must be connected

to them.

FRONT/REAR/CENTER/SUB

Power outputs of the amplifier Front, Rear, Center and

Sub channels. Connect the speakers cables to these

outputs according to polarity. Terminal blocks accept

cables up to 9 A.W.G. max (see “audison cable

products for electric connections” as far as their size is

concerned). We recommend the use of audison cable

products.

PPS (Phantom Power Supply)

Power supply socket for audison

external audio accessories.

IN SUB

Mono input for sub. The source Sub preamplified output must be connected to it.

IN FRONT

Left (L) and right (R) channels inputs of the amplifier Front system. Front preamplified outputs of

a source (head unit, CD player, DAT, etc.) or of an external electronic crossover must be connected

to them.

IN CENTER

Mono input for central channel. Center preamplified output of a surround processor (AC3, DTS,

Dolby Pro Logic) must be connected to it.

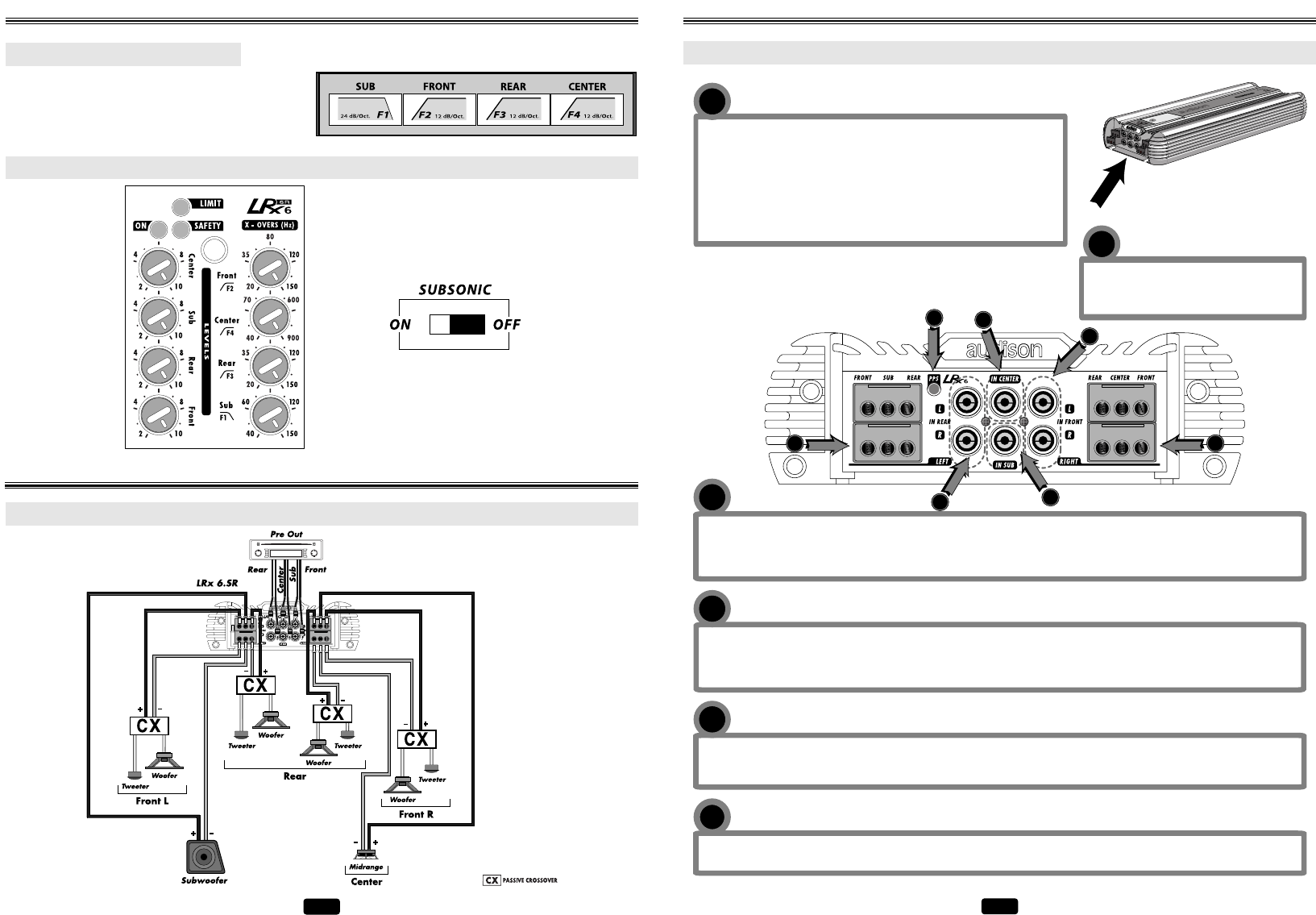

IN-OUT PANEL

FUNCTIONS

CONFIGURATIONS

CONFIGURATION TABLE

CONTROLS PANEL DIAGRAM AND SUBSONIC FILTER SWITCH

FRONT+REAR+CENTER+SUB

CONFIGURATION EXAMPLE

LRx 6.SR can be configured as follows:

Front (Hi 12 dB) + Rear (Hi 12 dB) +

Center (Hi 12 dB) + Sub (Lo 24 dB).

Download manual in English (PDF, 4.44 MB)
