Manual Audison LRx 4.300 Car Amplifier

Need a manual for your Audison LRx 4.300 Car Amplifier? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 1 comment and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

PPS (Phantom Power Supply)

Power supply socket for audison

external audio accessories.

IN B/OUT

Left (L) and right (R) inputs of the amplifier B channels or amplifier HI/BYPASS preamplified

outputs (see “Configurations table”). Connect only the right (R) channel input in order to use the

amplifier in mono.

IN A

Left (L) and right (R) inputs of the amplifier A channels. The preamplified outputs

(PRE OUT) of a source (head unit, CD player, DAT, etc.) or of an external electronic

crossover must be connected to them.

Connect only the right (R) channel input in order to use the amplifier in mono.

CH A/HI-PASS, CH B/LO-PASS

Power outputs of the amplifier left and right channels.

Connect the speakers cables to these outputs according

to polarity. Terminal blocks accept cables up to 9 A.W.G.

max (see “audison cable products for electronic

connections” as far as their size is concerned). We

recommend the use of audison cable products.

Please use +L and –R terminal blocks called mono in

order to connect every channels pair in bridge and

exploit the maximum power insured by this

configuration.

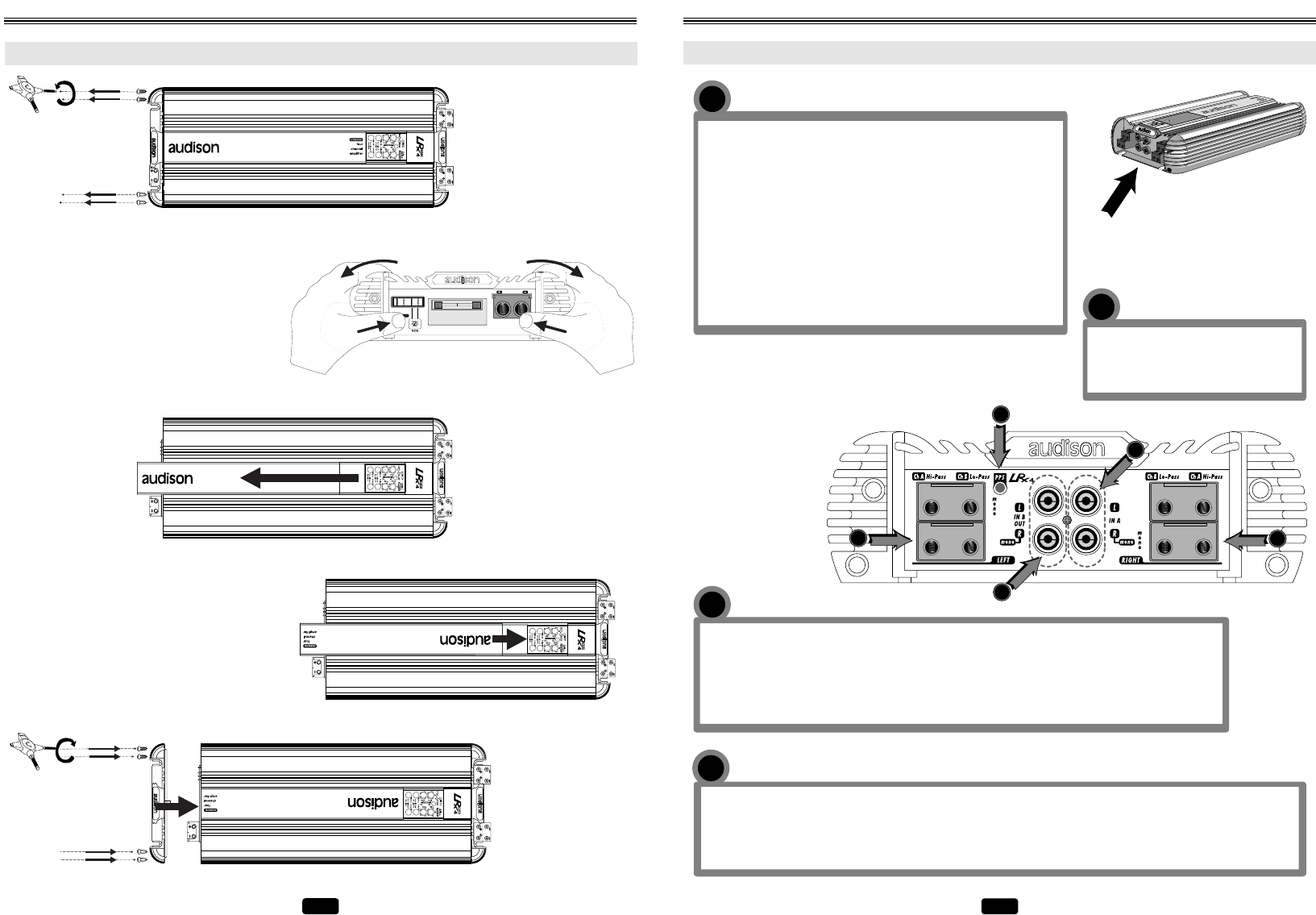

IN-OUT PANEL

FUNCTIONS

INSTALLATION

LOGO ROTATION

1 - Remove the transparent

cover which protects

controls and then the 4

screws which block the

metal plate by using

multispanner.

FUSE

POWER

IN OUT

REMOTE

2 - Remove the plate without damaging the

silkscreen printed panel which will have to

stay on. We suggest that you seize both plate

grips with your hands and pull them by

blocking the silkscreen printed panel with

your fingers against the amplifier chassis at

the same time. This will permit to remove the

plate from the panel without damages.

3 - Remove the strip with

audison logo.

5 - Mount the plate

back by fixing it

through the screws;

then, re-assemble the

transparent cover

which protects

controls.

4 - Put the strip back again after turning it, so

that audison logo is upside down.

Download manual in English (PDF, 4.67 MB)
