CHARACTERISTICS:

LR 3042, LR 3062: Two-channels amplifiers with compact dimensions and excellent

musical performances.

The outstanding features of their sophisticated circuitry are: "FRONT END" stages

realized by two complementary differential stages, final stages made of an inverted triplet

at pure complementary symmetry, final transistors with current capacity of 15 A and

MOSFET PWM power supply with a high energy reserve.

The design of the LR 30 (LR 3042 - LR 3062) dimensions allows their easy functioning on

2 Ohms nominal loads in stereo configuration and 4 Ohms nominal loads in bridge mono

configuration.

These features allow a great use versatility both in driving multiway systems and in the

SUBWOOFER mono connection in TRI-MODE configuration.

PRECAUTIONS

· In order for this device to function properly it's important that it is installed in a spot where

temperature doesn't fall below 0° C or rise above 55° C.

· It must be installed in a dry and well ventilated spot.

· The power supply voltage is 12 VCC negative to ground. Make sure that the characteristics

of the vehicle electrical system are compatible with this device.

· For safe driving we advise you to listen to music at a volume level that won't drown out

external traffic noise.

INSTALLATION

For mounting use 4 self-threading screws and protective plastic rings provided.

For a very good result we suggest to use audison cable products to complete your

installation. These include:power cables, signal cables, speaker cables, RCA connectors

and all accessories needed to complete the wiring.

WARNINGS

· INPUTS: If the radio-cassette player doesn't share the output GND with the chassis, the

braided shield of the shielded cable must be connected to the radio-cassette player chassis.

· OUTPUTS: Never connect the -R and -L outputs to ground or to each other.

If a crossover filter is used, please be sure its two channels don't have a common ground.

· REGULATIONS: If you hear saturation phenomena at moderate volume levels, it means

a distorted signal is coming from the radio-cassette player.

Turn radio-cassette player down until there's no longer any distortion.

Then adjust the calibration levels of the amplifier until you can hear only light saturation

phenomena.

HI-PASS FRONT

HI-PASS REAR SUBWOOFER

LR 3042 / LR 3062

LR 3032 XR LR 3091 XR

PRE OUT FRONT

REMOTE IN

LR 3032 XR

SAFE

LEVEL

X-OVER

MODE

OUT

0.15V - 1.5V

3.2K

1.8K

900

300

100

- Hz -

MONO

STEREO

AMP-HI/OUT-LO

AMP-LO/OUT-HI

SPEAKERS

POWER

REMOTE IN

mono

PRE OUT REAR

mono

LR 3042 or LR 3062

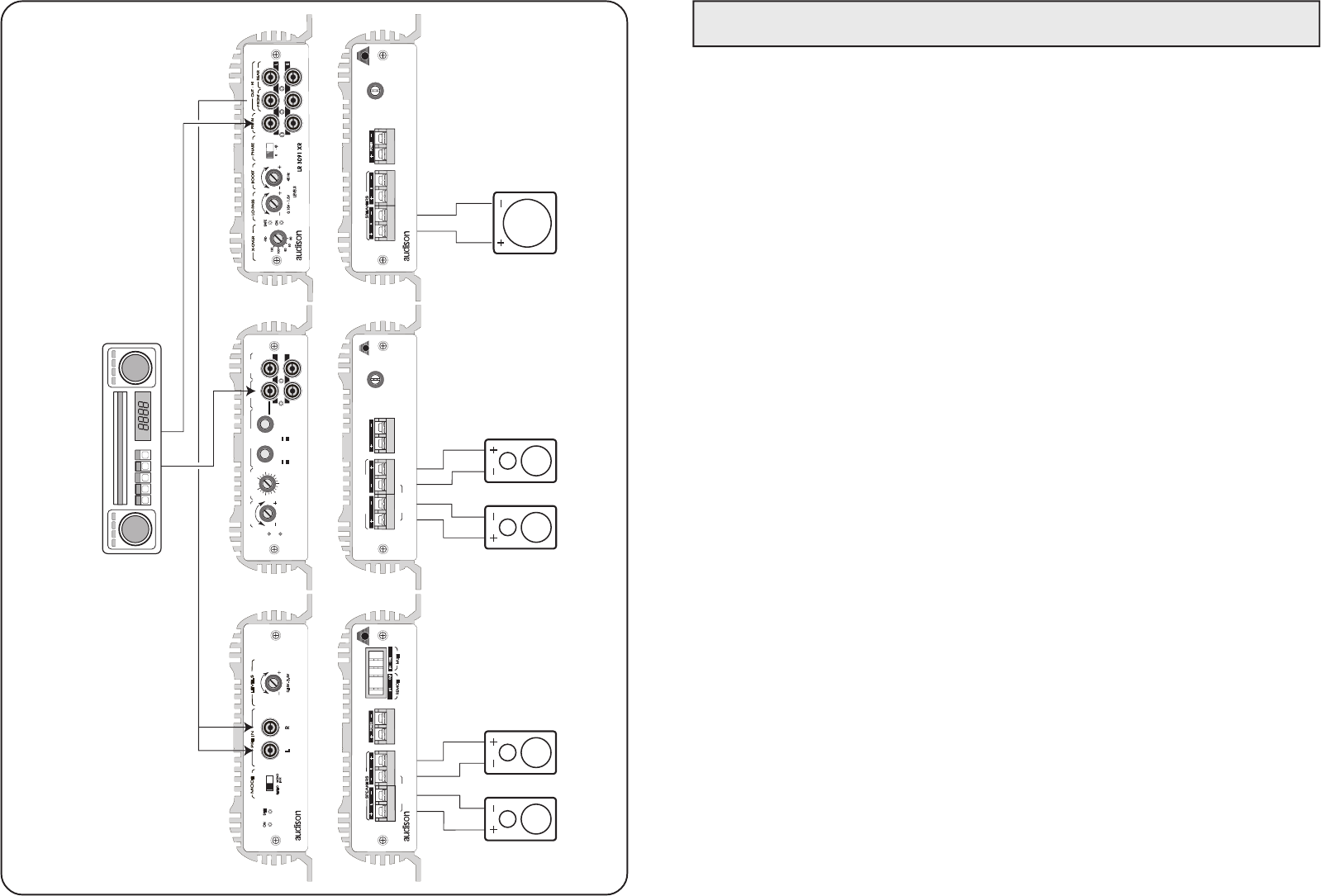

ACTIVE SYSTEM WITH FADER
