You may not start to operate the machine until you

have read these operating instructions, observed all

the instructions given and installed the machine as de-

scribed!

Keep the instructions in a safe place for future use.

C

C

o

o

n

n

t

t

e

e

n

n

t

t

s

s

EC Declaration of Conformity 10

Extent of delivery 10

Description of the device 10

Operating times 11

Symbols on the machine / in the operating manual 11

Proper use 11

Residual risks 11

Safety instructions 12

Commissioning 13

Working with the garden shredder 14

Changing the blades 14

Maintenance and cleaning 14

Guarantee 14

Technical data 15

Operational faults 16

Spare parts 128

Assembly 138

E

E

C

C

D

D

e

e

c

c

l

l

a

a

r

r

a

a

t

t

i

i

o

o

n

n

o

o

f

f

C

C

o

o

n

n

f

f

o

o

r

r

m

m

i

i

t

t

y

y

according to EC directive:

2006/42/EC

We,

ATIKA GmbH & Co. KG

Schinkelstraße 97

59227 Ahlen - Germany

herewith declare under our sole responsibility that the product

Garden Shredder type AMF 2500

Serial number: see last page

is conform with the above mentioned EC directive as well as with

the provisions of the guidelines below:

2004/108/EC, 2006/42/EC and 2000/14/EC.

Following harmonized standards have been applied:

EN 60335-1/ A13: 2008; EN 13683/A1:2009;

EN 55014-1/A2:2002; EN 55014-2/A1:2001;

EN 61000-3-2:/A2:2005; EN 61000-3-11:2000

Conformity assessment procedure: 2000/14/EC - Appendix V.

Measured level of the acoustic output L

WA

106,8 dB (A).

Guaranteed level of the acoustic output L

WA

109 dB (A).

Keeping of technical documents at:

ATIKA GmbH & Co. KG – Technical department – Schinkelstr. 97

59227 Ahlen – Germany

Ahlen, 14.05.2010 A. Pollmeier, management

E

E

x

x

t

t

e

e

n

n

t

t

o

o

f

f

d

d

e

e

l

l

i

i

v

v

e

e

r

r

y

y

 After unpacking, check the contents of the box

! that it is complete

! check for possible transport damage.

Report any damage or missing items to your dealer, supplier or

the manufacturer immediately. Complaints made at a later date

will not be acknowledged.

• 1 pre-assembled device unit

• base frame

• 2 wheels

• 2 wheel covers

• 2 feet

• 1 screw bag

• 1 retaining basket

• 1 push stick

•

•

1 operating manual

D

D

e

e

s

s

c

c

r

r

i

i

p

p

t

t

i

i

o

o

n

n

o

o

f

f

t

t

h

h

e

e

d

d

e

e

v

v

i

i

c

c

e

e

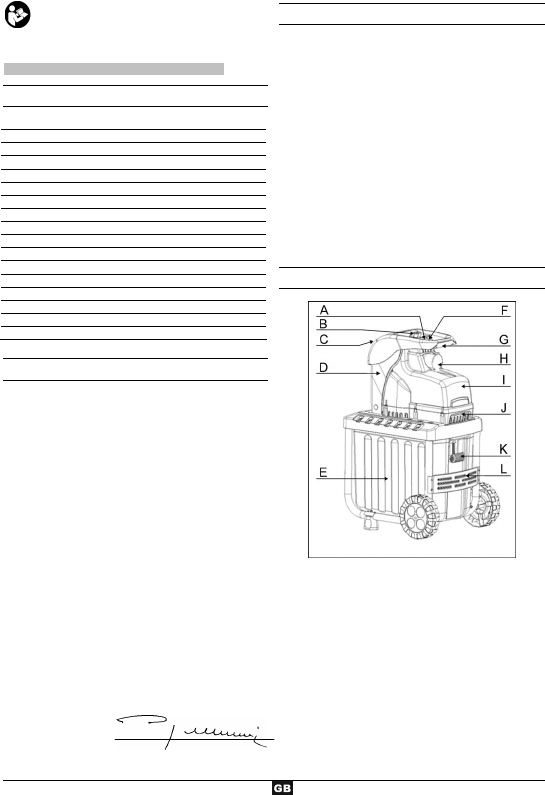

A. On / Off switch

B. Safety cut-off screw

C. Hopper opening for material to be shredded

D. Housing lid

E. Retaining basket

F. Motor protection

G. Handle

H. Main plug

I. Housing

J. Lower enclosure part

K. Retaining basket locking

L. Base frame with wheels and feet

Rating
