AUS

Adjacent cabinetry

The location of connection points is given in the

table on page 5 . For trouble-free operation of

appliances installed in housing units, the minimum

distances shown in fig.4 should be observed. It is

recommended that the adjacent kitchen surfaces

should be capable of withstanding temperatures of

65°C. Also, the following must be observed:

• The appliance should be installed next to

cabinetry which is no taller than the top of the

cooker hob.

• The wall in direct contact with the back panel of

the cooker must be made of non-flammable

material. During operation of the cooker, the back

panel of the cooker could reach a temperature of

50°C above room temperature.

• Kitchen cabinets installed next to the cooker that

are higher than the top of the hob, must be at

least 600 mm from the edge of the hob itself.

• If the hood is installed below a wall cabinet, the

latter must be at least 700 mm (millimetres) above

the surface of the hob.

• Cabinets installed adjacent to the hood must be

at least 420 mm above the hob,

The following minimum

clearances to combustible

materials must be observed:

• Minimum clearance from

edge of burner to side wall

must be 200 mm.

• Minimum clearance from

edge of burner to rear wall

must be 55 mm.

Range hoods

Range hoods and overhead exhaust fans must be

installed according to manufacturers’ instructions

but in no case shall clearance from hob burners be

less than 600 mm for range hoods and 750 mm for

overhead exhaust fans.

• If the hood is installed below a wall cabinet, the

latter must be at least 700 mm (millimetres) above

the surface of the hob.

Fitting the cooktop above an oven

When installing the cooktop above an oven, both the

electricity supply cable and the gas pipe or flexible

hose must not touch hot parts of the oven housing.

When installing above a built-under oven without

forced cooling ventilation, suitable air vents should

be provided for (inlet at least 200 cm² from the

bottom, outlet at least 120 cm² from the top part) to

allow adequate ventilation inside the housing unit.

Also a wooden panel should be installed beneath

the hob as insulation, positioning it at a minimum

distance of 15 mm from the hob housing

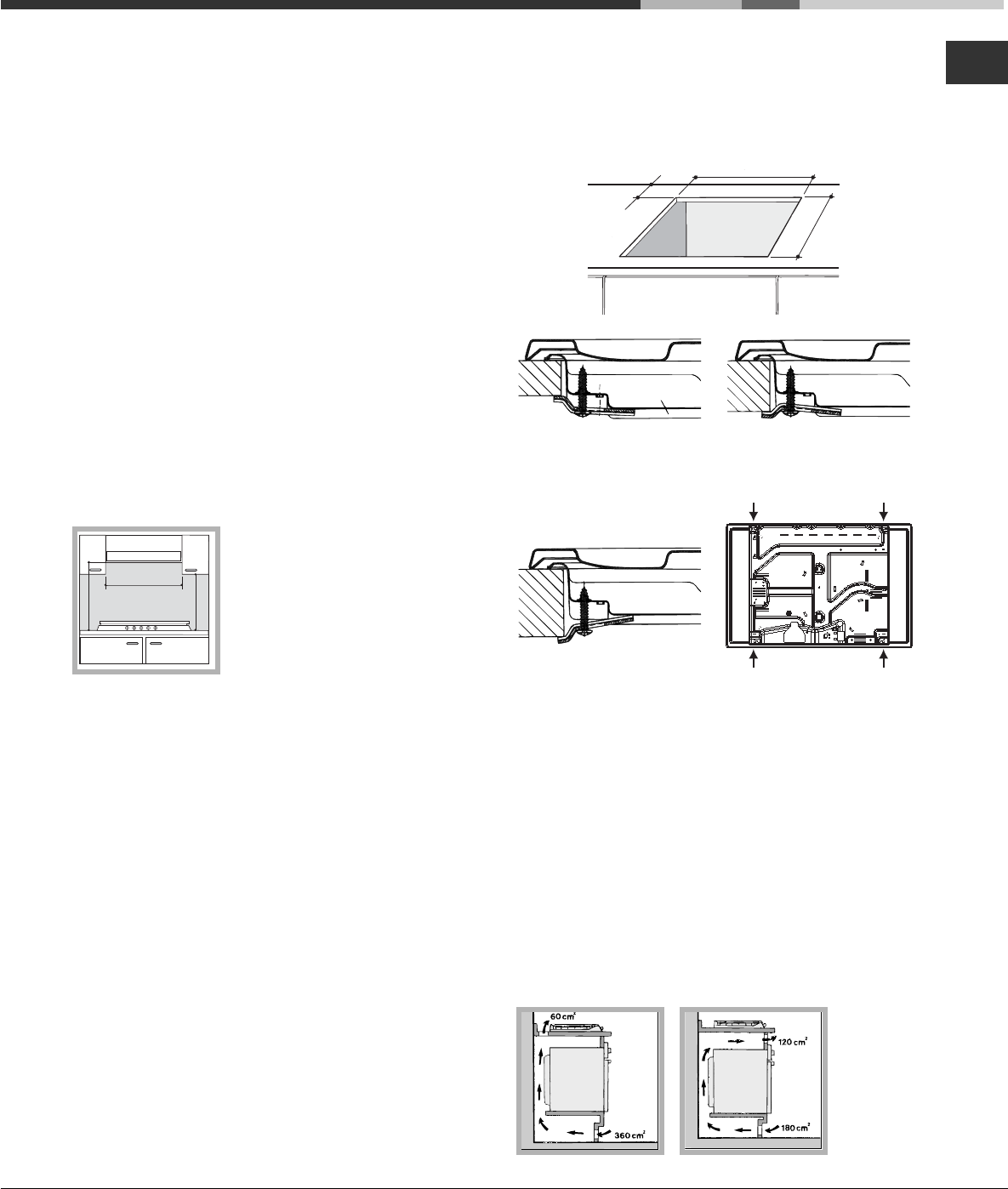

• The installation cavity should have the dimensions

indicated in the figure. Fastening hooks are provided,

allowing you to fasten the hob to tops that are between

20 and 40 mm thick. To ensure the hob is securely

fastened to the top, we recommend you use all the

hooks provided.

555 mm

55 mm

475 mm

Hook fastening diagram

Hooking position Hooking position

for top H=20 mm for top H=30 mm

Front

Hooking position Back

for top H=40 mm

! Use the hooks contained in the “accessory pack”

• Where the hob is not installed over a built-in oven, a

wooden panel must be installed as insulation. This

must be placed at a minimum distance of 20 mm from

the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (

see diagrams

600mm min.

420mm min.

700mm min.

Download manual in English (PDF, 2.2 MB)
