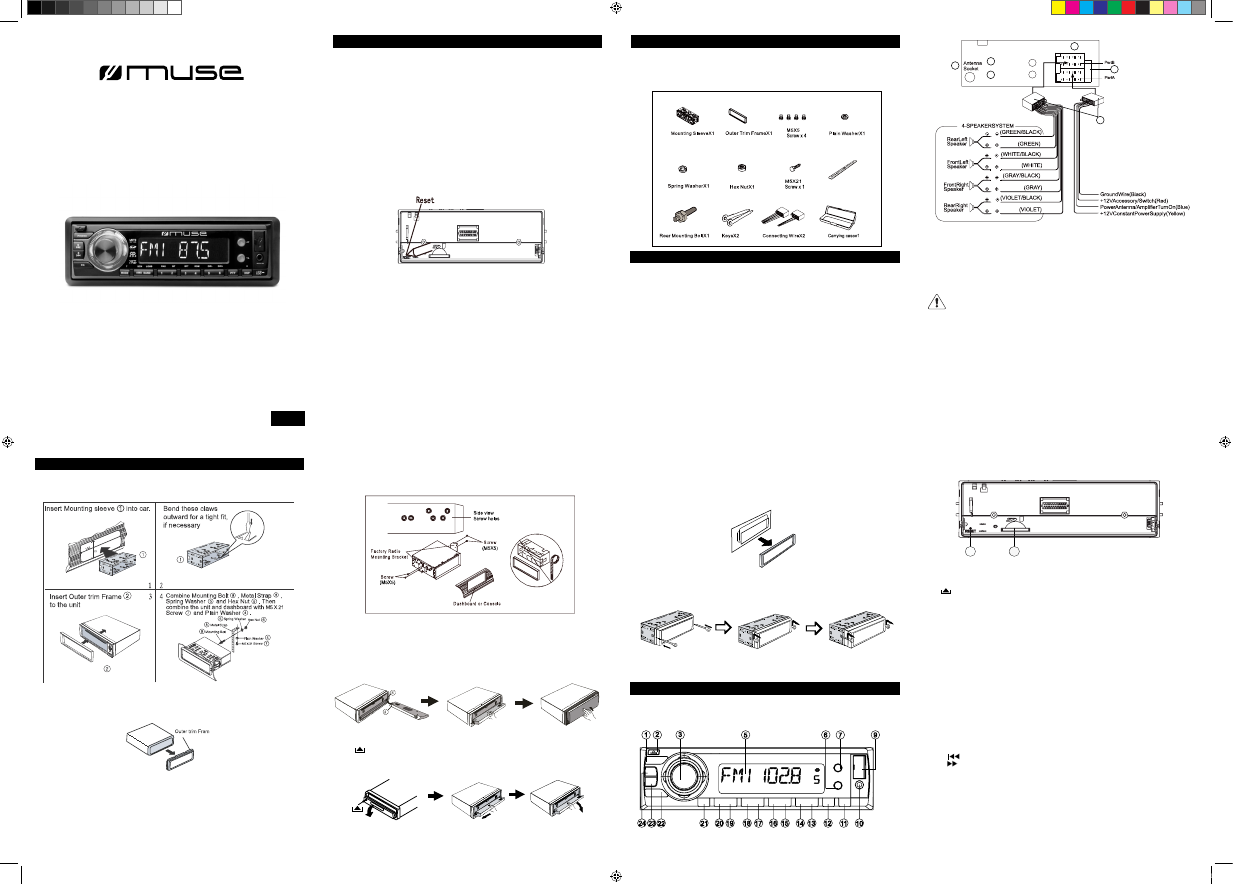

Manual Muse M-092 MR Car Radio

Manual

Detach the Front Panel

Press button in the upper left corner, and then the front panel will be folded down.

When the front panel was turned down to the angle of 45°, hold and push the front

panel to left, and then pull it out.

POWER button

(release button)

SEL/VOL knob (Audio/ volume)

SD/SDHC/MMC card slot

LCD display

TA button (Trafc Announcement)

AF button (Alternative Frequency)

Reset button

USB port with lid

AUX in jack

0/DSP button (Display time)

PTY button (Program type selection)

6/DIR+ button (Directory up)

Do not attempt to modify the unit, modifying the unit may cause an accident.

Installation or servicing of the unit by persons without training and experience in

electronic equipment and automotive accessories may be dangerous and could

expose you to the risk of electric shock or other hazards.

Stop the vehicle before carrying out any operation that could interfere with your

driving.

Keep the volume at a level which you could hear sounds from outside the vehicle.

Do not work in extremely high or low temperature. Be sure the temperature inside

the vehicle is between +60°C and -10°C before turning on your unit.

When replacing the fuse(s), the replacement must be of the same amperage as

shown on the fuse holder.

Do not block vents or radiator panels. Blocking them will cause heat to build up

inside and may result in re.

Using this unit without running the engine can result in battery drainage

Use only in cars with a 12 volt negative ground.

After completing the installation or replacing the car battery you need to RESET the

unit before using it. Remove the front panel and press RESET button on the base

with pointed object (such as ball-point pen) to reset the unit to its initial settings.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

GB - 1

M-092 MR

User Manual

CAR RADIO WITH USB & SD

Please read the instructions carefully before

operating the unit.

PRECAUTIONS

English

GB - 2

GB - 3

CONNECTION

1. Antenna socket

2. Line out (Right-Red)

3. Line out (Left -White)

4. Output plug (male)

5. Output plug (female)

6. Fuse holder (5A)

Caution!

- Make sure to connect the colour coded leads according to the diagram. Incorrect

connections may cause the unit to malfunction or damage the vehicle’s electrical sys-

tem.

- Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never con-

nect the left and right channel speaker cables each other or to the vehicle body.

- Make sure all the connections are completely correct before turning on your unit.

GB - 5

Install the front panel

Put notch A (Shown as picture) onto shaft B. And then slightly press into the right side.

Note: Never put any objects into the front panel.

Detach the Unit

1. Detach the front panel. (Please refer to upper part)

2. Take out the outer trim frame.

LOCATION OF CONTROLS

Front panel

GB - 7

- Method 2 DIN Rear-mount (For Japanese car)

1. Remove the outer trim frame

UNPACK YOUR UNIT

When you unpack your new car radio, make sure that you have removed all the acces-

sories and information papers:

Main unit with connector

User manual

Accessories:

Install the unit

- Method 1: DIN Front-Mount

INSTALL AND REMOVE THE UNIT

2. Select a position where the screw holes of the mounting bracket supplied with the

car and the screw holes of the main unit become aligned (are tted).

Base

5/DIR- button (Directory down)

4/RDM button (Random)

3/RPT button (Repeat)

2/INT button (Intro)

1/PAU button (Pause)

BAND/LOUD button

AMS/SCH button (Automatic scan and

memorising)

7/MODE button

EQ button (equalizer)

8/ button (skip backward)

9/ button (Skip forward)

3. Tighten the screws. And then fasten them to the car.

3. Insert the keys supplied on the both sides of the unit (shown as illustrated) until

they click. Pulling the keys and makes them to remove the unit from the dashboard.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

GB - 4

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

23 24

8

4

1

2

3

4

5

6

Do not connect the ignition wire (red) and the battery wire (yellow), it may cause

a short circuit, even result in re.

Steel Bar X1

1

2 3 4

5 6 7 8

9

10 11 12

Output plug

(female)

Line out

(Left-White)

Line out

(Right-Red)

Fuse holder (5A)

Output plug (male)

GB - 6

1

2 3

5

6

7

9

10

11

12

13

14

1516

17

1819

20

21

22

23

24

AR-3111 IB MUSE 001 REV0 -GB.ind1 1 7/7/2011 5:03:27 PM
